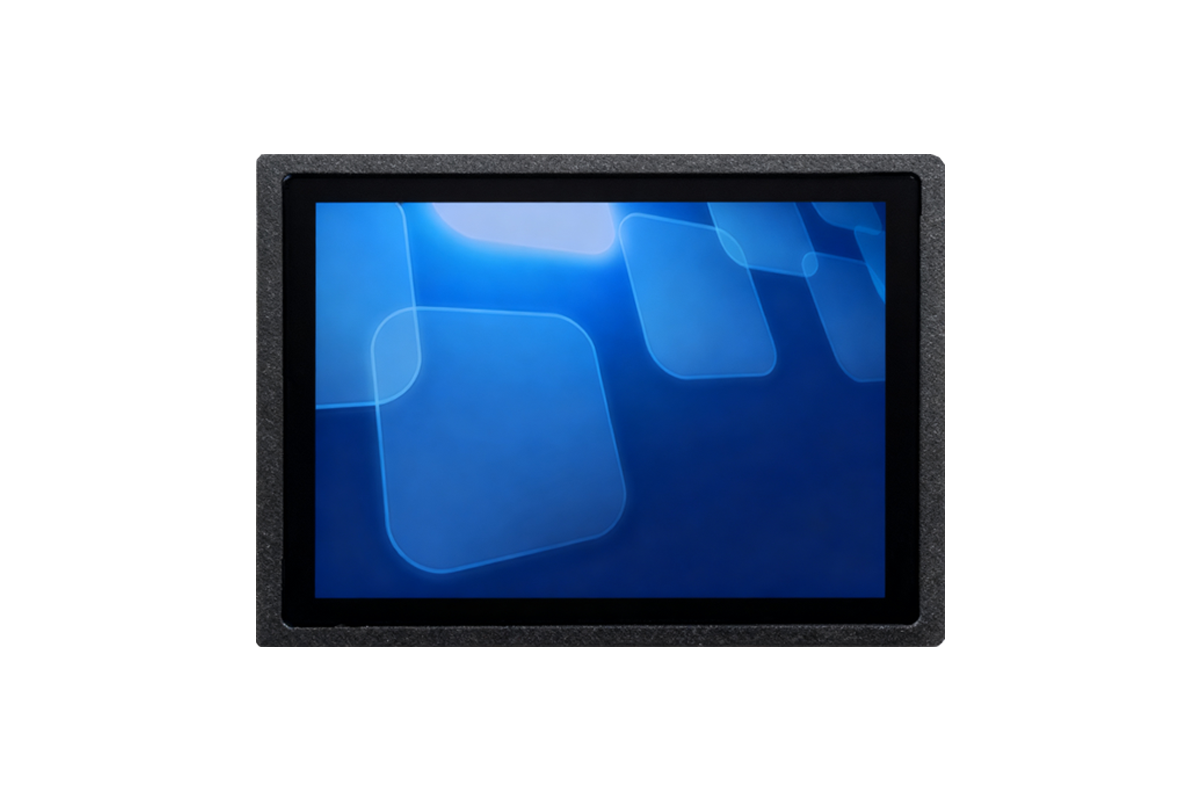

Touch displays for machine tool panels, control cabinets, production line stations, EV chargers, and fuel dispensers.
Features

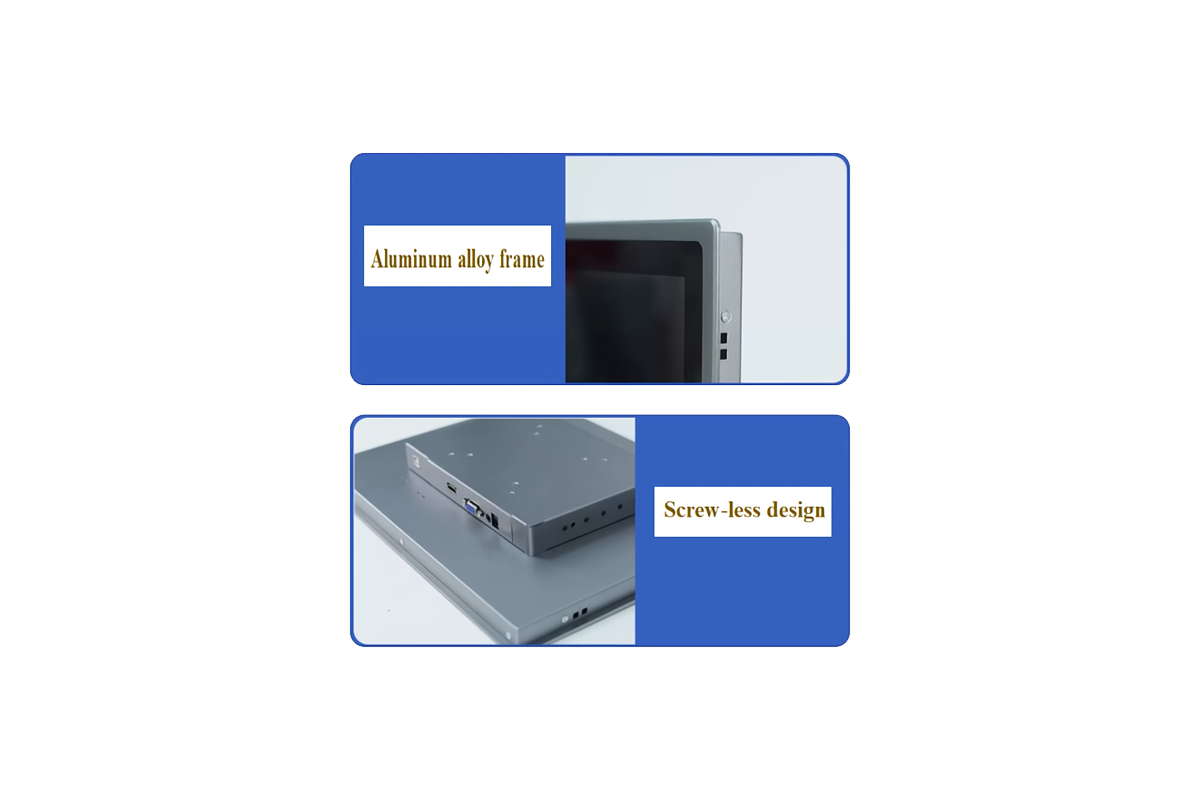

+ Front-mounted flat design with rounded corners
+ 3mm aluminum narrow bezel, IP65 protection
+ Industrial grade LCD ,long-life LED backlight
+ Wide Ratio, resolution 1920X1080FHD@60Hz
+ Full viewing angle, high brightness
+ 10-point projected capacitive touchscreen
+ 3mm tempered glass with anti-fingerprint
+ USB touch interface, fast response
+ Palm rejection & glove touch supported
+ Video interface: HDMI+VGA
+ Supported OS: Windows 11, Linux，Android
Optional：
- Touch All-in-one
- Customizable high brightness
- Customizable external interfaces
Specifications
Model
TDS2137C
Color
Black
Diagonal
21.5"
Aspect Ratio
16:9
Active Area
476 X 268(mm)
Dimensions
535.9X332.5X43(mm)
Recommended cutout size: 529.4X309(mm)
Resolution
1920 X 1080@60Hz
Viewing Angle
Horizontal: 89° / 89°
Vertical: 89° / 89°
Number of Colors
16.7M, 72% NTSC
Brightness (typical)
LCD Panel: 400 nits
PCAP: 365 nits
Response Time
14ms
Contrast Ratio
1000:1
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
Input method
Finger, stylus (silicone tip), glove (thickness ≤ 2 mm)
Transmittance
≥90%
Surface hardness
7H(Mohs)
Touch Interface
USB2.0
Video Interface
VGA+HDMI
Anti-vibration
50-500hz, 1.5G, 0,15mm peak
Input Voltage
AC:100-240 VAC, 50/60 Hz

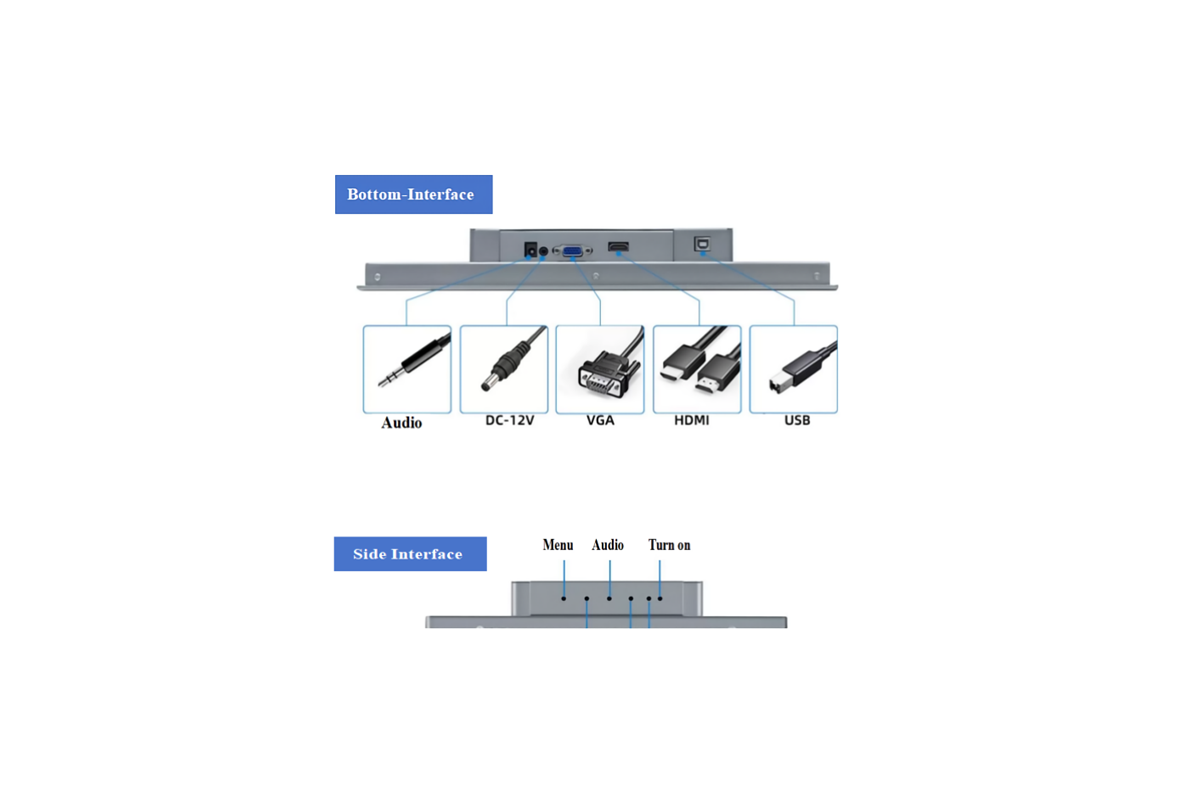

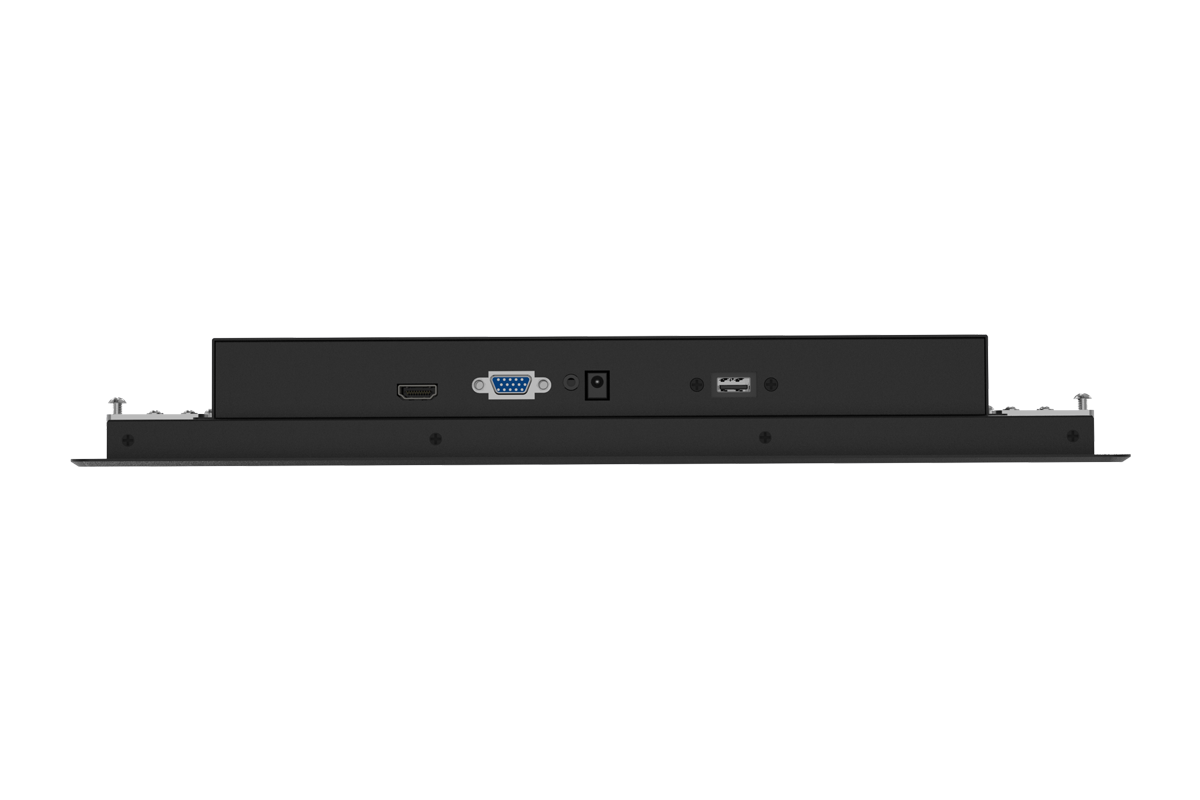

I/O Ports
1*HDMI, 1*VGA, 1*USB2.0, 1*DC
Sealability
Sealing between touch screen and front bezel
Drop Test
450g steel ball falls from 1.2m without breaking
Weight
(Unpackaged) 5.5KG
Shipping Dimensions
585 X 110 X 395(mm)
Temperature
Operating: 0°C to 50°C
Storage: -10°C to 60°C
Humidity
Operating: 20% to 70%;
Storage: 10% to 80%;
MTBF
50,000 hours demonstrated

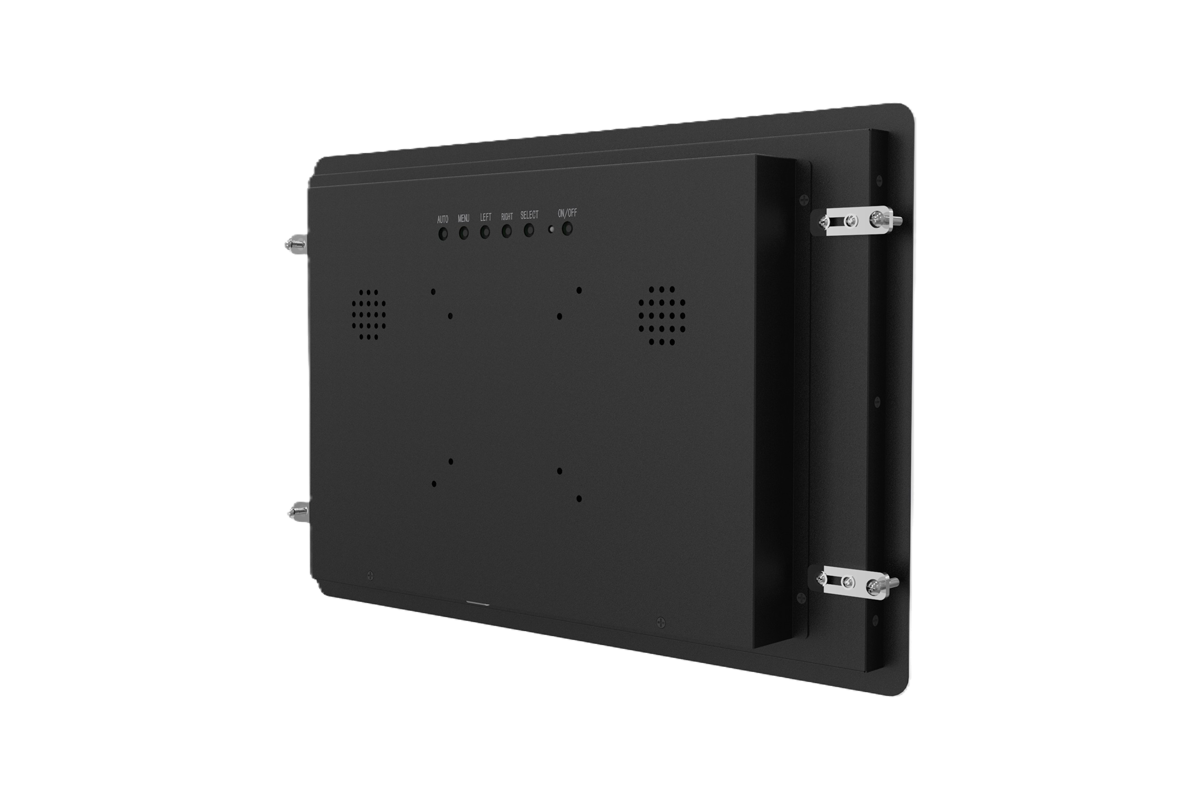

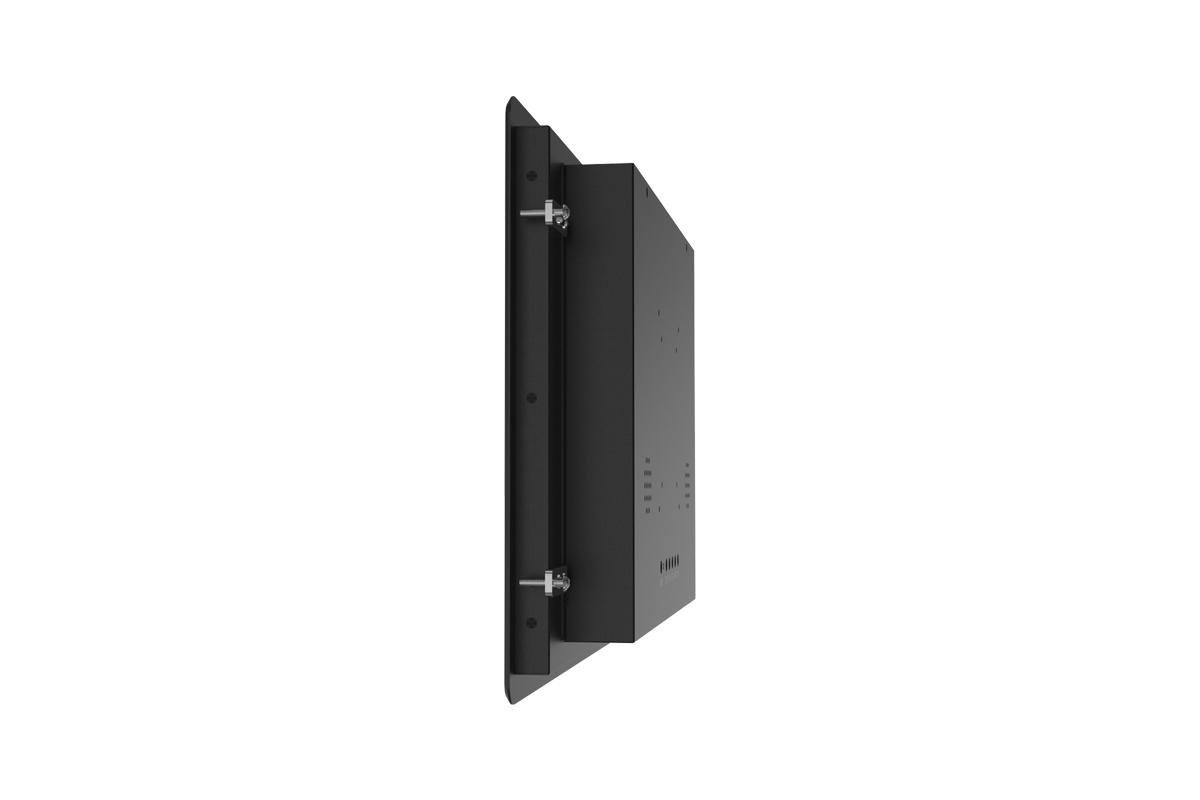

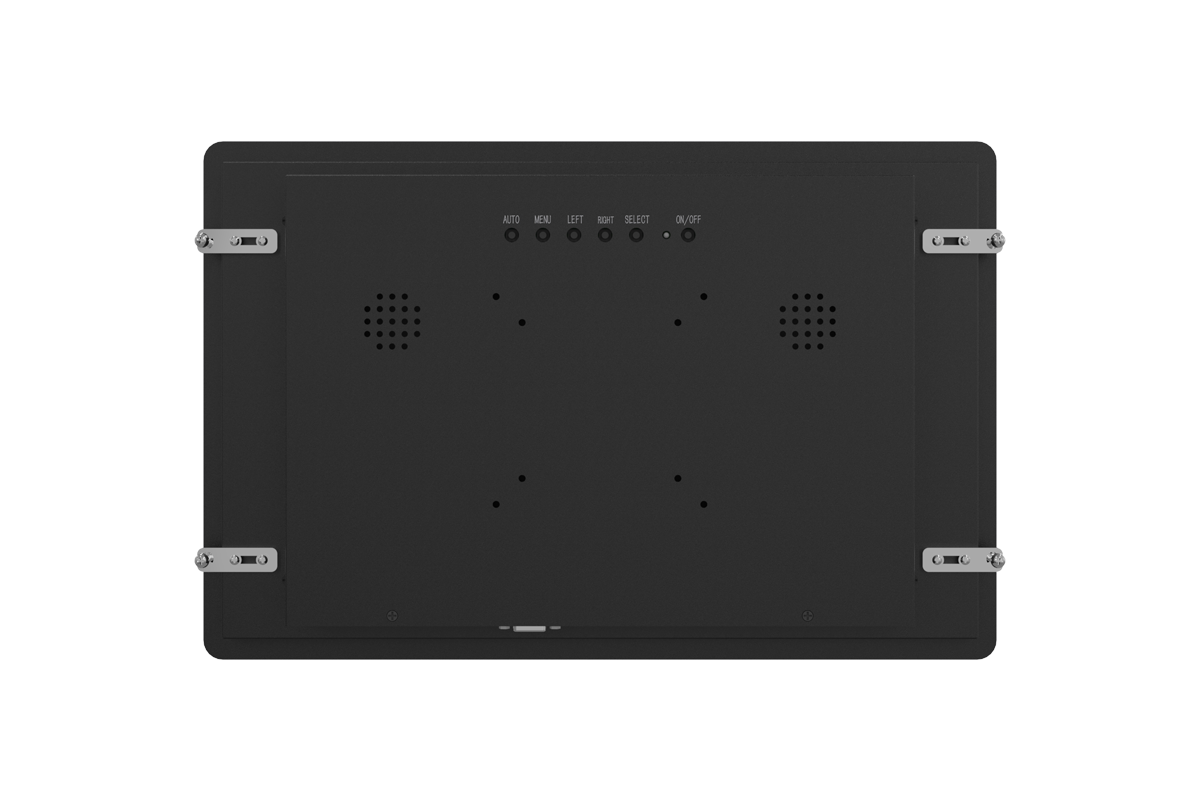

Mounting Options
VESA mount on rear 75mm&100mm
Side buckle mounting distance: 169mm
Power Supply
DC:12V3A(Coaxial power jack: 5.5*2. 1)
Warranty
3-year
Agency Approvals
FCC, CE, ROHS
Support OS
Windows, Linux, Android
What's in the Box
1*HDMI cable，1*USB cable，1* DC cable，1*Power adapter
4* Flush Mount Brackets with screws
