Touch displays for machine tool panels, control cabinets, production line stations, EV chargers, and fuel dispensers.
Features
+ Front-mounted flat design with rounded corners
+ 3mm aluminum narrow bezel, IP65 protection
+ Industrial grade LCD ,long-life LED backlight
+ Wide Ratio, resolution 1920X1080FHD@60Hz
+ Full viewing angle, high brightness
+ 10-point projected capacitive touchscreen
+ 3mm tempered glass with anti-fingerprint
+ USB touch interface, fast response
+ Palm rejection & glove touch supported
+ Video interface: HDMI+VGA
+ Supported OS: Windows 11, Linux，Android
Optional：
- Touch All-in-one
- Customizable high brightness
- Customizable external interfaces
Specifications
Model
TDS1937C
Color
Black
Diagonal
18.5"
Aspect Ratio
16:9
Active Area
408.96(H)×230.04(V) mm
Dimensions
470.9X294.9X43(mm)
Resolution
1920 X 1080@60Hz
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Number of Colors
16.7M, 72% NTSC
Brightness (typical)
LCD Panel: 350 nits
PCAP: 325 nits
Response Time
30ms
Contrast Ratio
1200:1
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
Input method
Finger, stylus (silicone tip), glove (thickness ≤ 2 mm)
Touch Precision
≥2mm
Transmittance
≥90%
Surface hardness
7H(Mohs)
Touch Interface
USB2.0
Video Interface
VGA+HDMI
Input Voltage
AC:100-240 VAC, 50/60 Hz

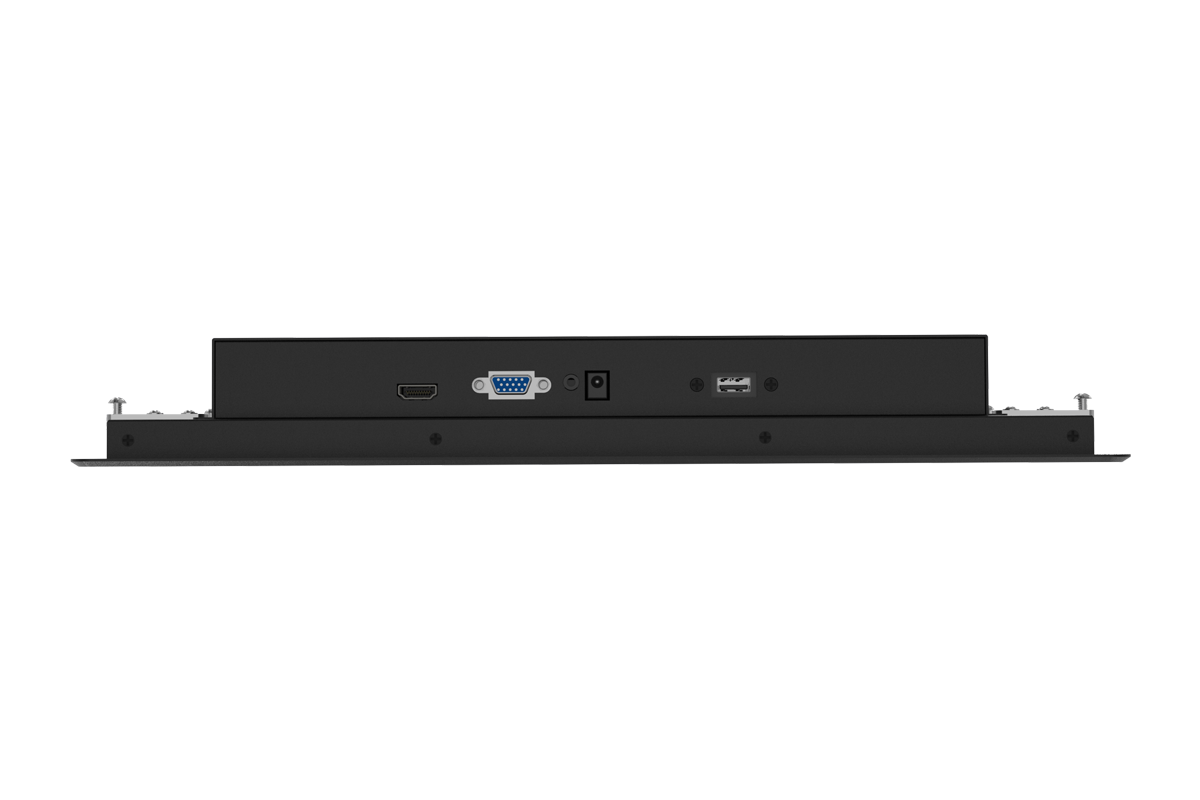

I/O Ports
1*HDMI ，1*VGA ，1*USB2.0, 1*DC
Sealability
Sealing between touch screen and front bezel
Drop Test
450g steel ball falls from 1.2m without breaking
Weight
(Unpackaged) 2.7KG
Shipping Dimensions
525 X 110 X 355(mm)
Temperature
Operating: 0°C to 50°C
Storage: -10°C to 60°C
Humidity
Operating: 20% to 70%;
Storage: 10% to 80%;
MTBF
50,000 hours demonstrated
Mounting Options
VESA mount on rear 75mm&100mm
Side buckle mounting distance：160mm
Power Supply
DC:12V3A(Coaxial power jack: 5.5*2. 1)
Warranty
3-year
Agency Approvals
FCC, CE, ROHS
Support OS
Windows, Linux, Android
What's in the Box
1*HDMI cable，1*USB cable，1* DC cable，1*Power adapter
4* Flush Mount Brackets with screws
