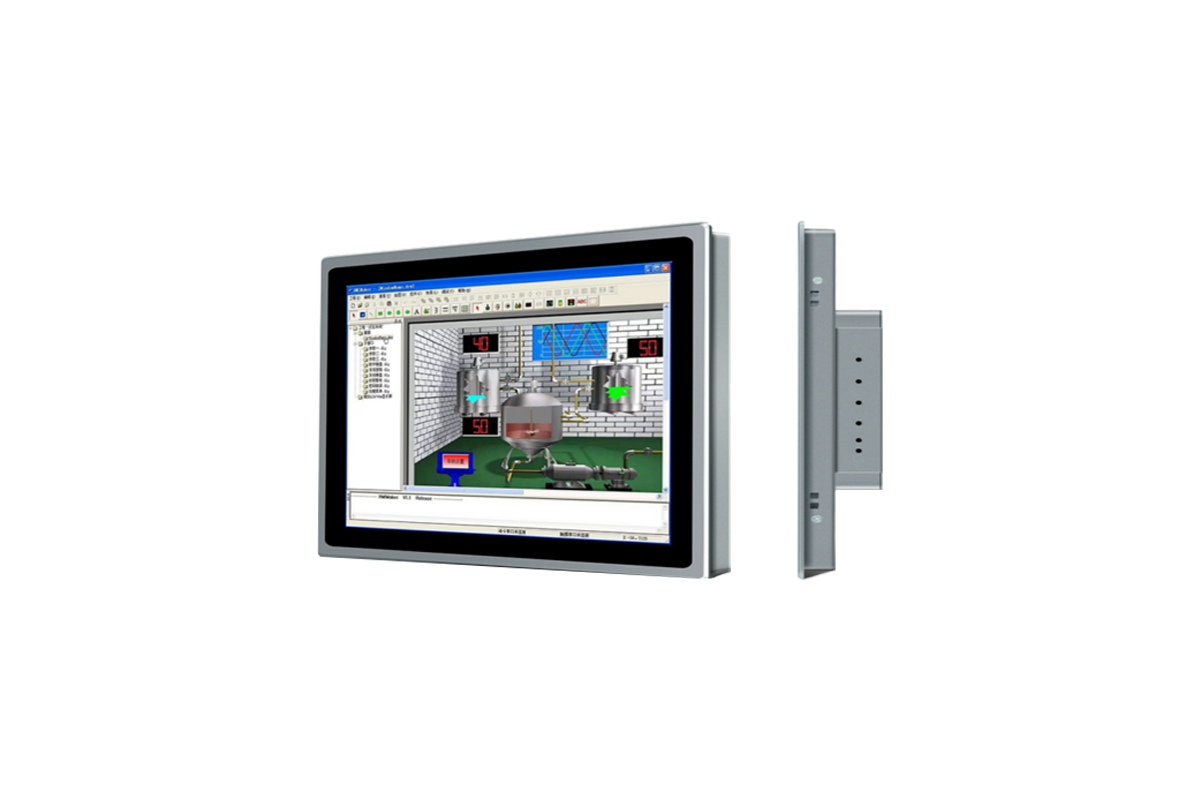

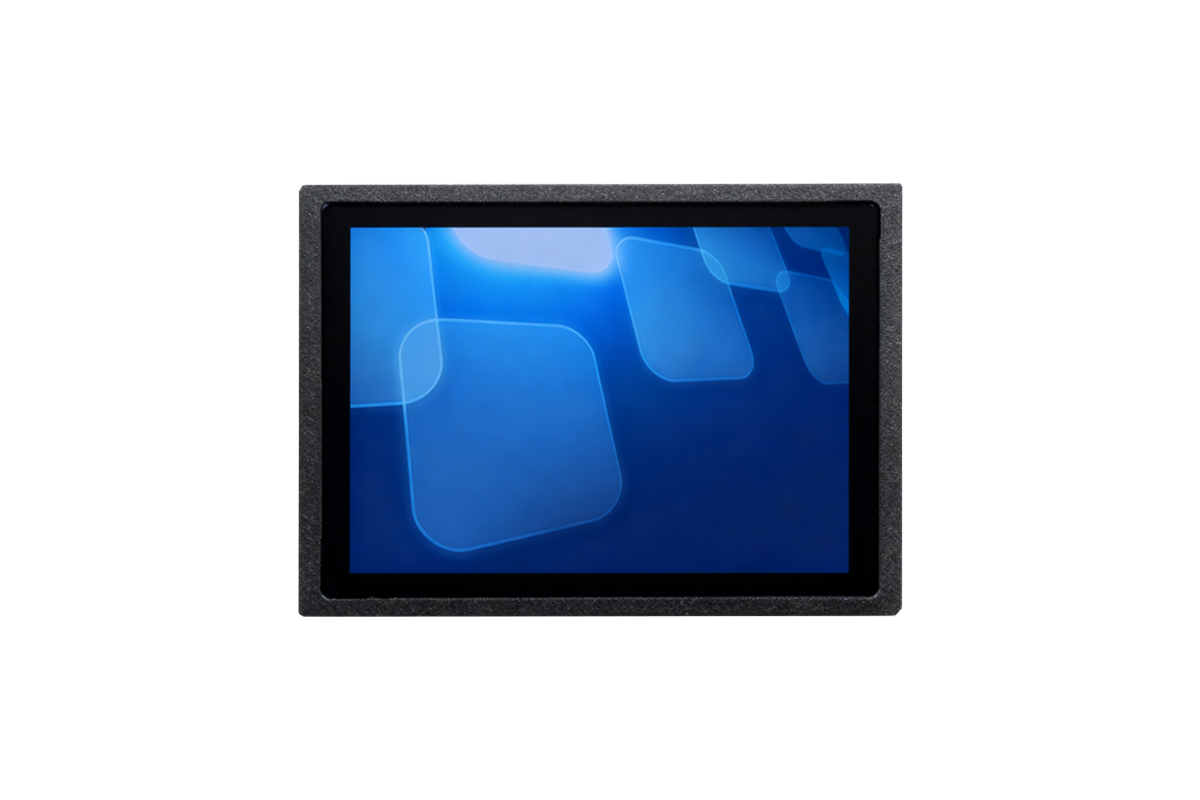

Touch displays for machine tool panels, control cabinets, production line stations, EV chargers, and fuel dispensers.
Features
+ Front-mounted flat design with rounded corners

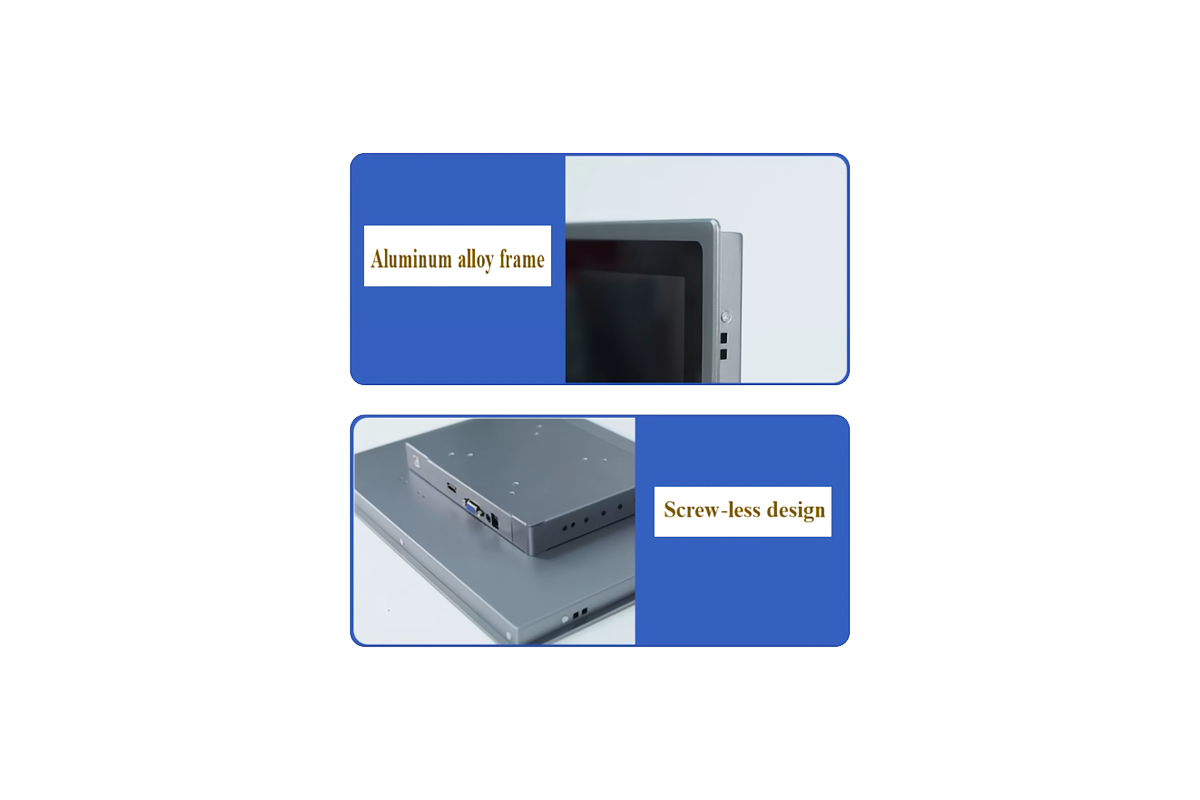

+ 3mm aluminum narrow bezel, IP65 protection
+ Industrial grade LCD ,long-life LED backlight
+ Wide Ratio, resolution 1920X1080FHD@60Hz
+ Full viewing angle, high brightness
+ 10-point projected capacitive touchscreen
+ 3mm tempered glass with anti-fingerprint
+ USB touch interface, fast response
+ Palm rejection & glove touch supported
+ Video interface: HDMI+VGA
+ Supported OS: Windows 11, Linux，Android
Optional：
- Touch All-in-one
- Customizable high brightness
- Customizable external interfaces
Specifications
Model
TDS1537C
Color
Black
Diagonal
15.6"
Aspect Ratio
16:9
Active Area
344.16(H)×193.59(V)mm
Dimensions
403.9X263.9X41(mm)
Recommended cutout size：396.9X238.8(mm)
Resolution
1920X1080FHD@60Hz
Number of Colors
262K, 72% NTSC
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Contrast Ratio
800:1
Brightness (typical)
LCD Panel: 300 nits
PCAP: 275 nits
Response Time
30ms
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
Input method
Finger, stylus (silicone tip), glove (thickness ≤ 2 mm)
Touch Interface
USB2.0
Touch Precision
≥2mm
Transmittance
≥90%
Surface hardness
7H(Mohs)
Video Interface
VGA+HDMI
Input Voltage
AC:100-240 VAC, 50/60 Hz

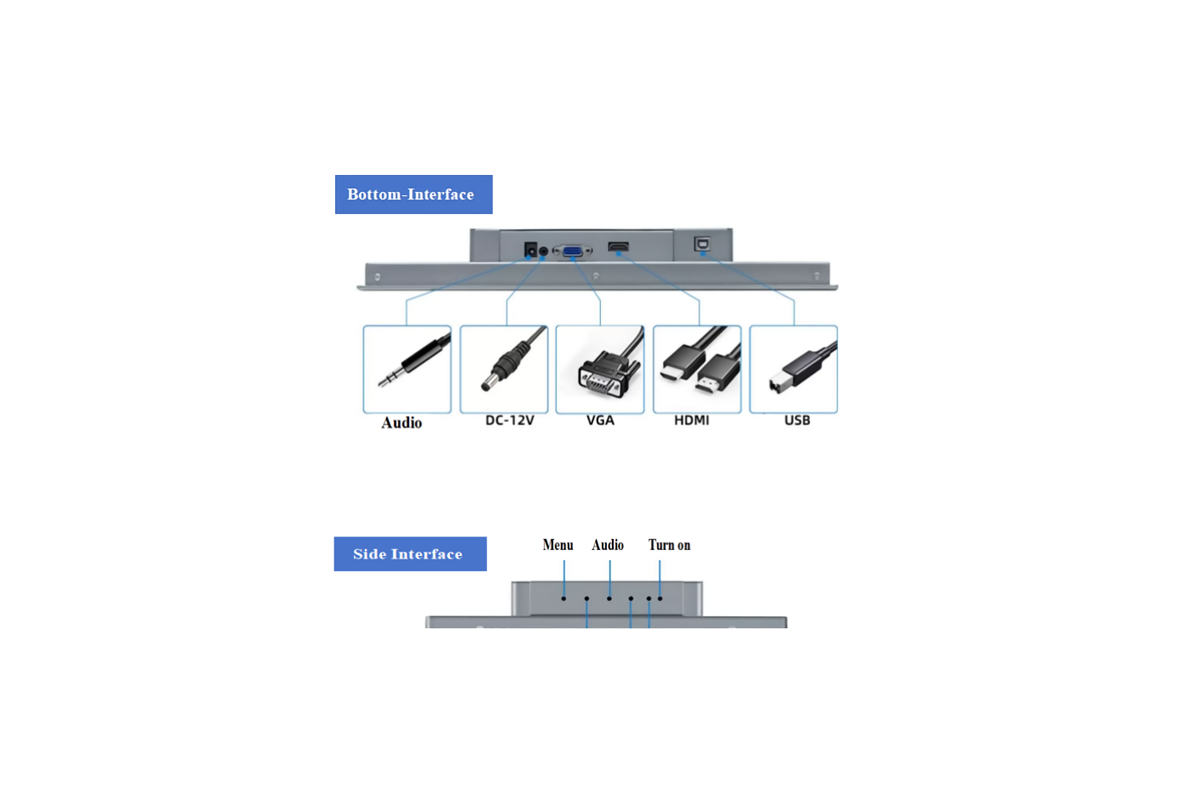

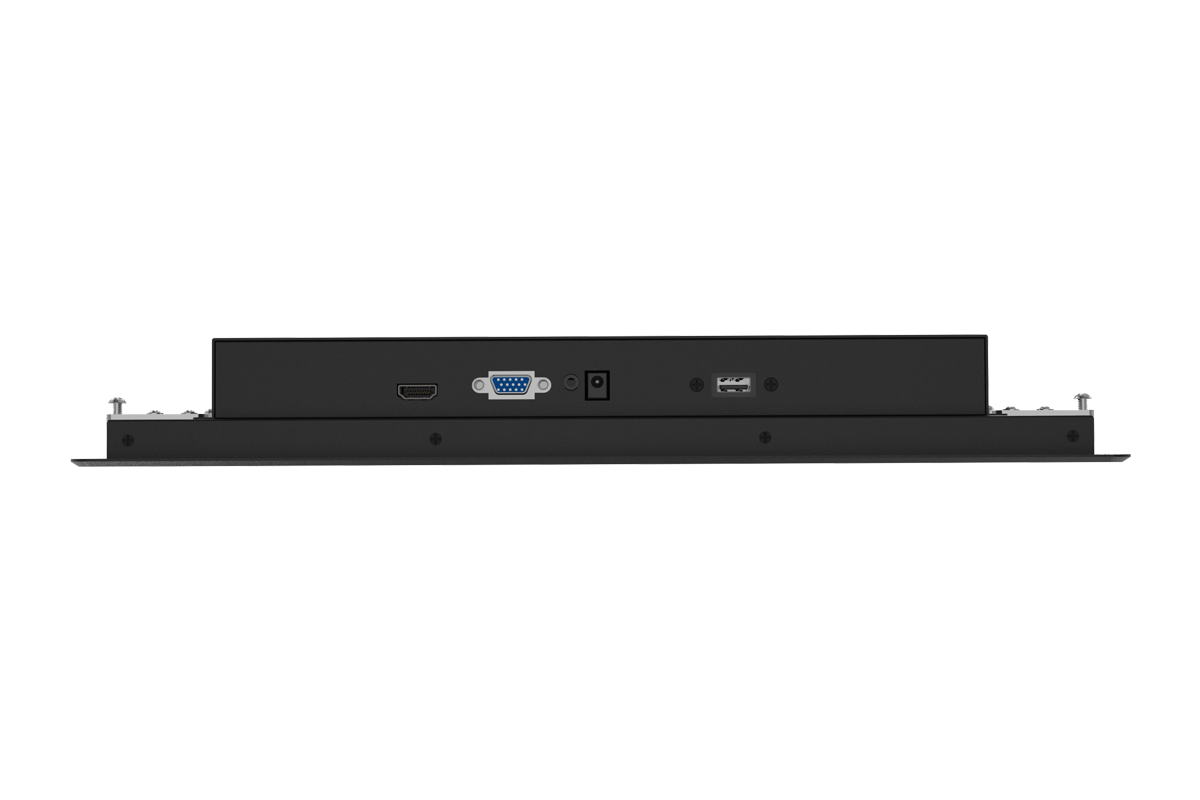

I/O Ports
1*HDMI ，1*VGA ，1*USB2.0, 1*DC
Sealability
Sealing between touch screen and front bezel
Drop Test
450g steel ball falls from 1.2m without breaking
Weight
(Unpackaged) 1.5KG
Shipping Dimensions
455 X 110 X 320(mm)
Temperature
Operating: 0°C to 50°C
Storage: -10°C to 60°C
Humidity
Operating: 20% to 70%;
Storage: 10% to 80%;
MTBF
50,000 hours demonstrated

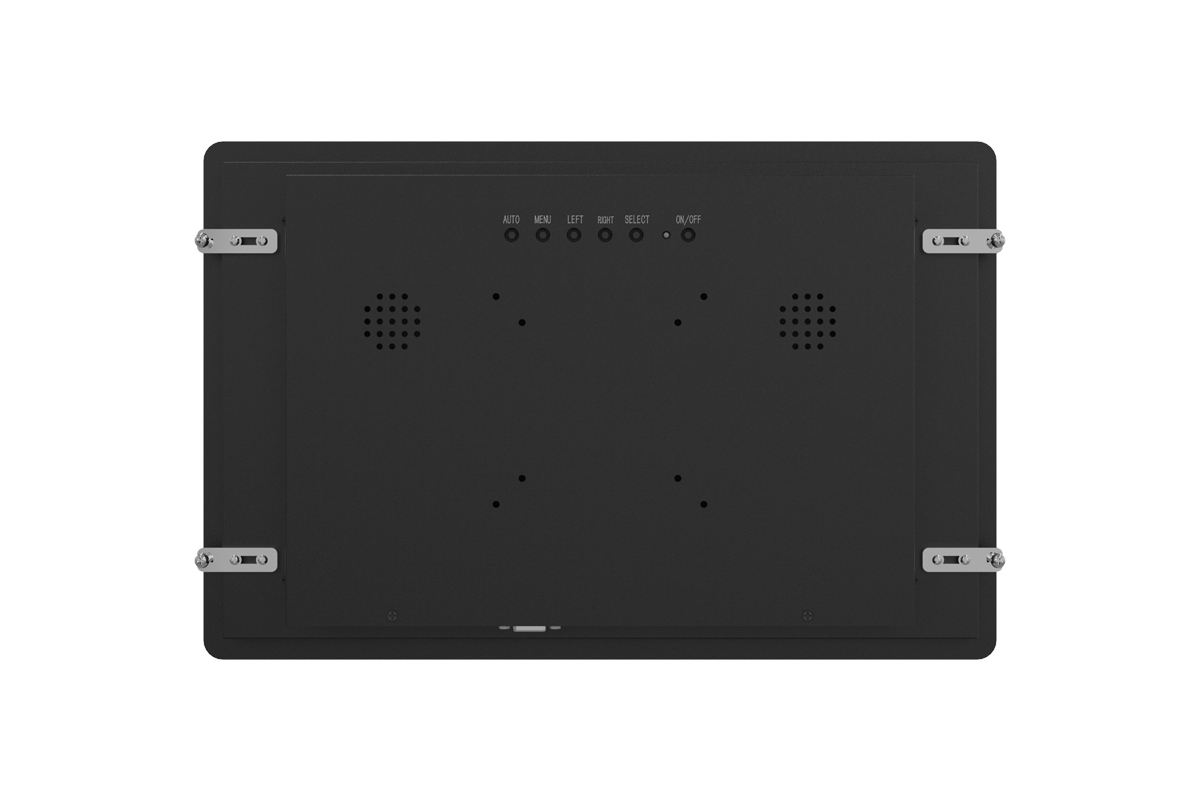

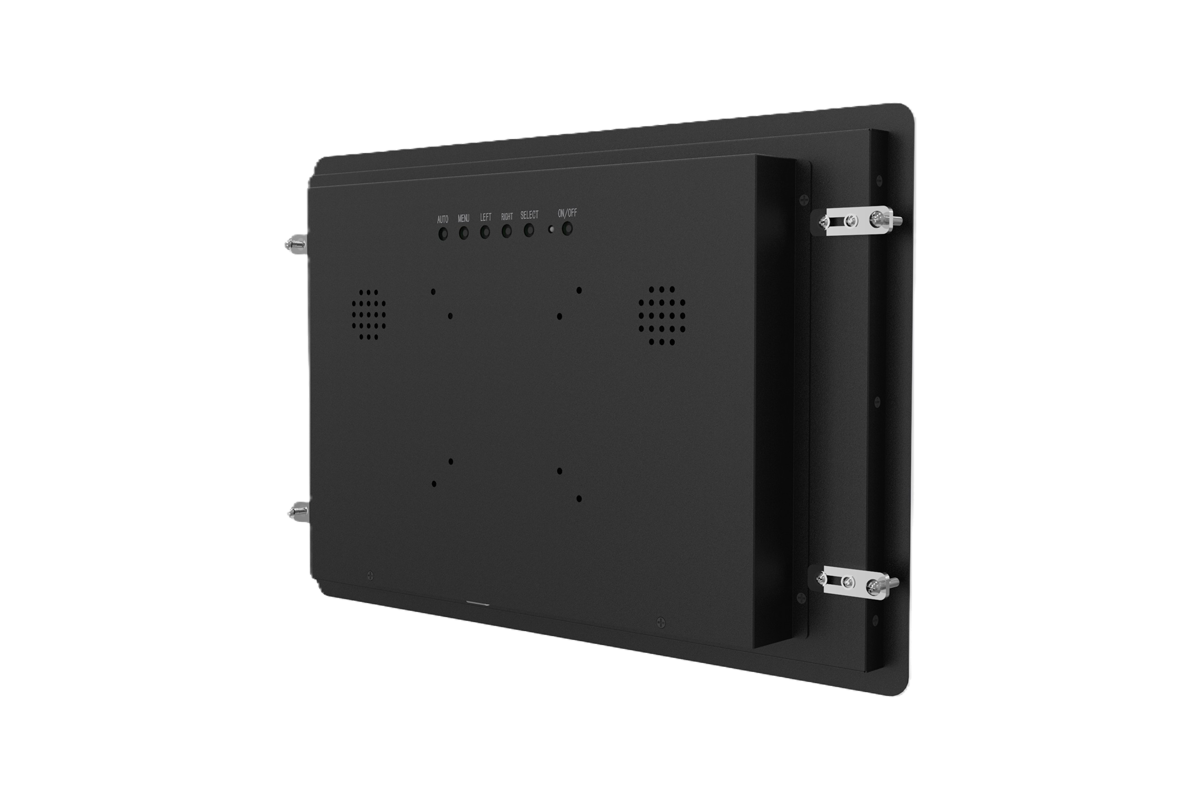

Mounting Options
VESA mount on rear 75mm&100mm

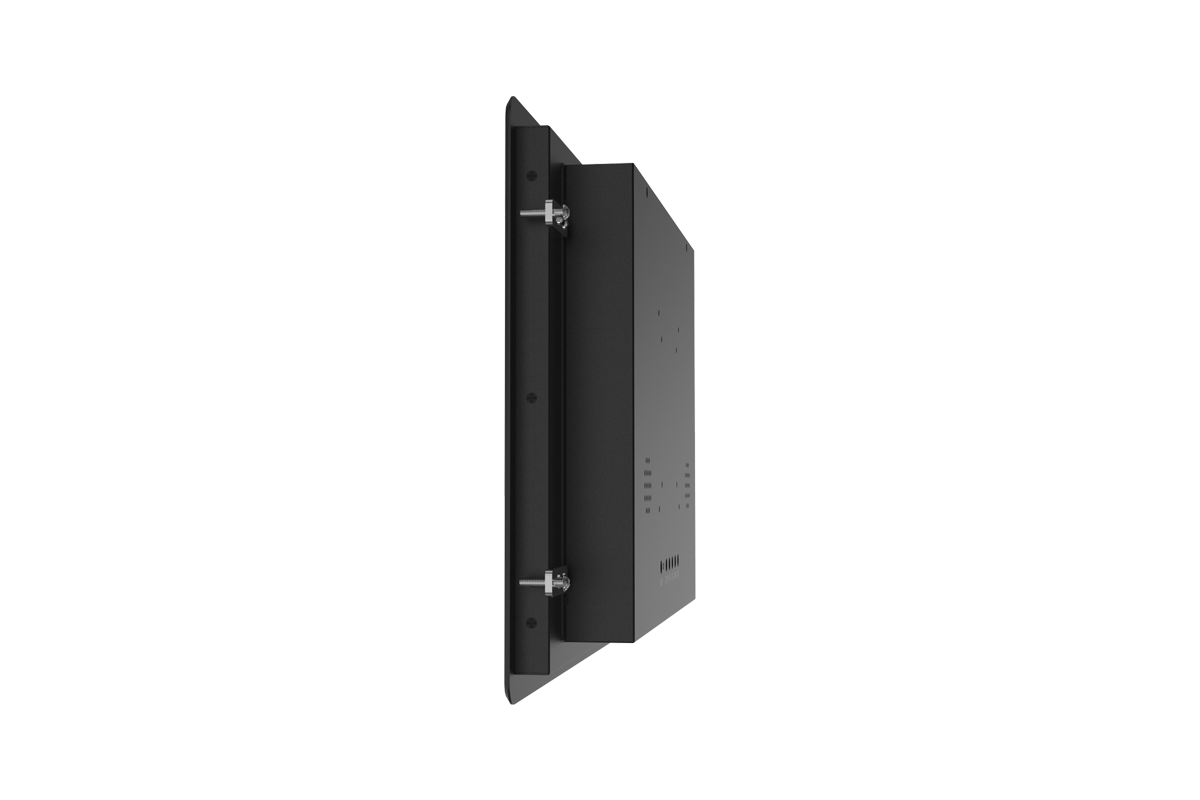

Side buckle mounting distance：158.8mm
Power Supply
DC:12V3A(Coaxial power jack: 5.5*2. 1)
Warranty
2-year
Agency Approvals
FCC, CE, ROHS
Support OS
Windows, Linux, Android
What's in the Box
1*HDMI cable，1*USB cable，1* DC cable，1*Power adapter
4* Flush Mount Brackets with screws
