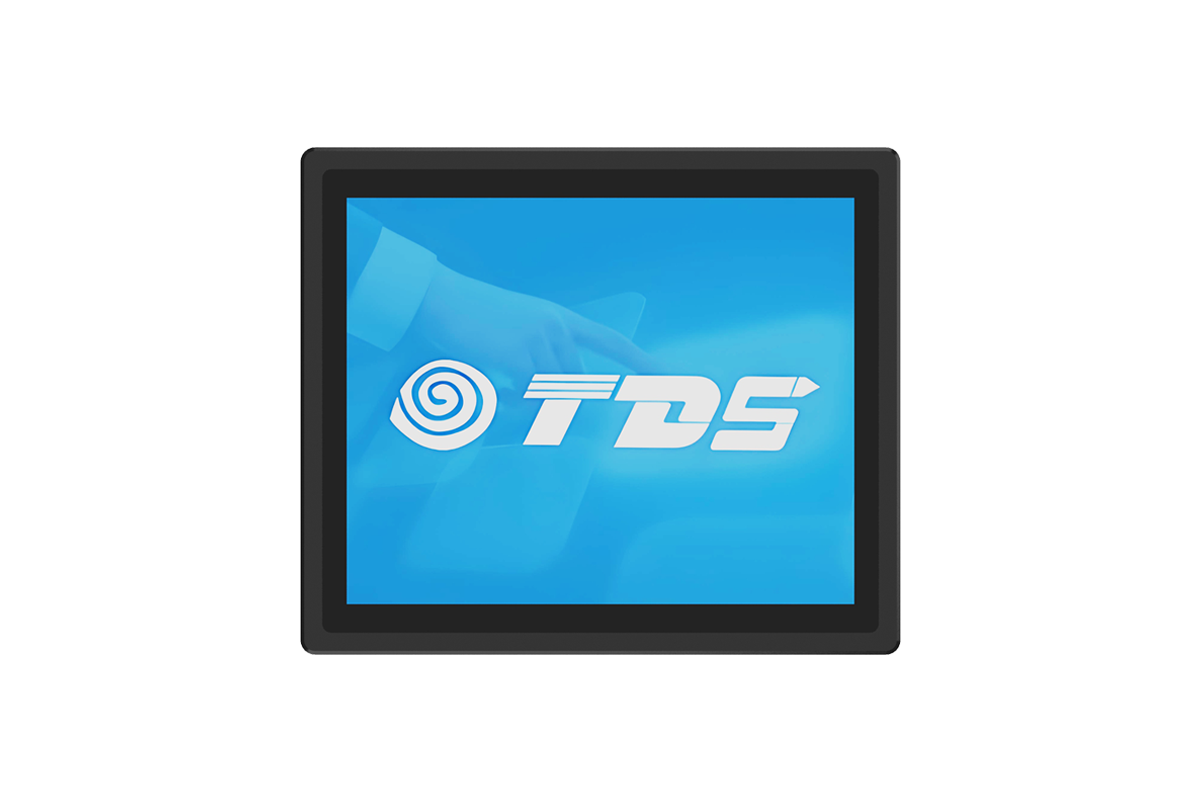

1237B 12.1" Front-end Embedded Touchscreen Monitor
Industrial control cabinets, HMI, on-site industrial terminals, testing instruments, outdoor touch terminals.
Features
+ Front-mounted flat structure, rounded corner design
+ 3mm narrow aluminum front bezel, IP65 protection rating
+ Industrial-grade LCD panel, energy-saving long-life backlight
+ Standard aspect ratio, resolution 1024×768 @ 60Hz
+ Projected capacitive touch screen, 10-point supported
+ 3mm tempered touch glass with anti-fingerprint coating
+ USB touch control interface, fast touch response
+ Palm rejection function, glove touch support
+ Video interfaces: HDMI + VGA

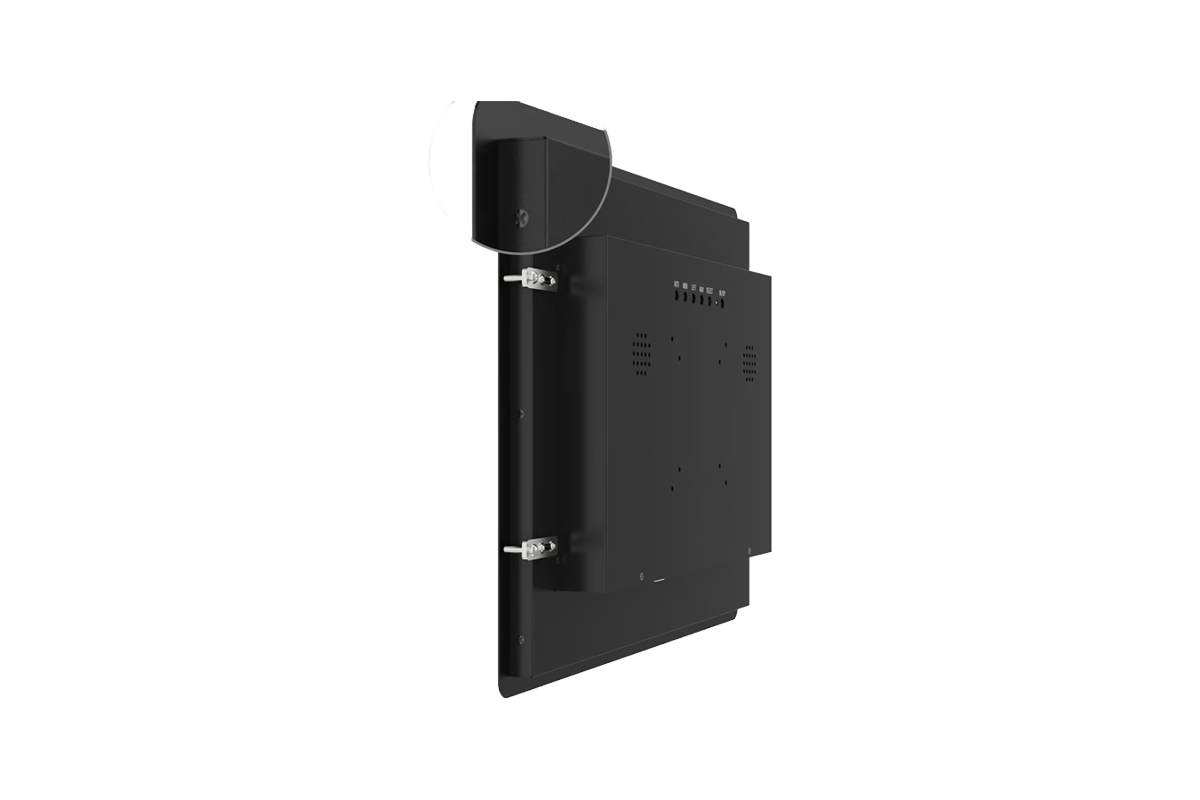

+ Supports side clip mounting and VESA wall mounting
+ Compatible OS: Windows 11, Linux, Android
Optional:
- 5-wire resistive touch screen
- Customizable high brightness
- Customizable external interfaces
Specifications
Model
TDS1237B
Color
Black
Diagonal
12.1"
Aspect Ratio
4:3
Active Area
246 x 184(mm)
Dimensions
314.1X253.1X41(mm)
Recommended cutout size：307.1X211.5(mm)
Resolution
1024 X 768@60Hz
Number of Colors
16.7M, 72% NTSC
Viewing Angle
Horizontal: 85°/85°
Vertical: 85°/85°
Contrast Ratio
1200:1
Brightness (typical)
LCD Panel: 400 nits
PCAP: 365 nits
Response Time
30ms
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
Input method
Finger, Capacitance pen(Standard)
Latex gloves touch (Thickness≤2mm)
Transmittance
≤90%
Surface hardness
7H(Mohs)
Video Interface
VGA+HDMI
Input Voltage
AC:100-240 VAC, 50/60 Hz

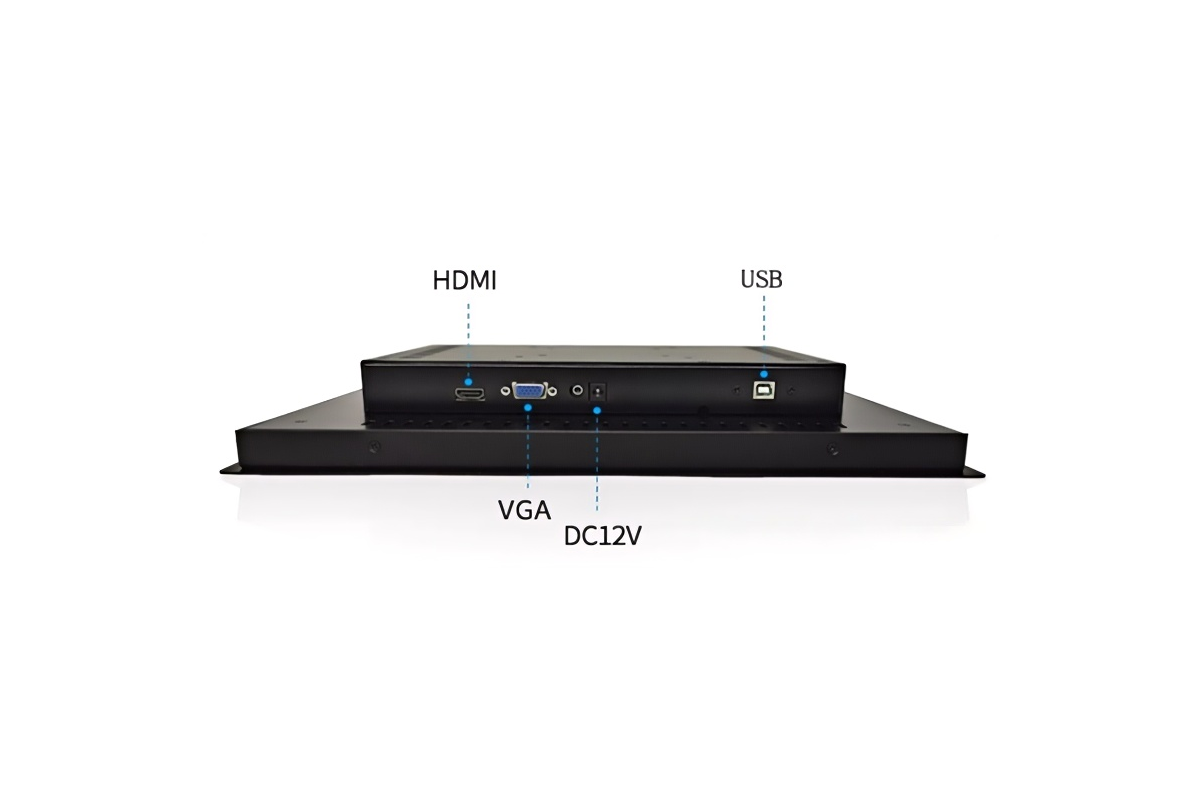

I/O Ports
1*HDMI, 1*VGA, 1*USB2.0, 1*DC
Touch Interface
USB2.0
Sealability
Touchscreen sealed to bezel
Drop Test
200g steel ball falls from 0.5m without breaking
Temperature
Operating: 0°C to 50°C
Storage: -10℃ to 60°C
Humidity
Operating: 20% to 70%;
Storage: 10% to 80%;
MTBF
50,000 hours demonstrated
Weight
(Unpackaged) 5KG

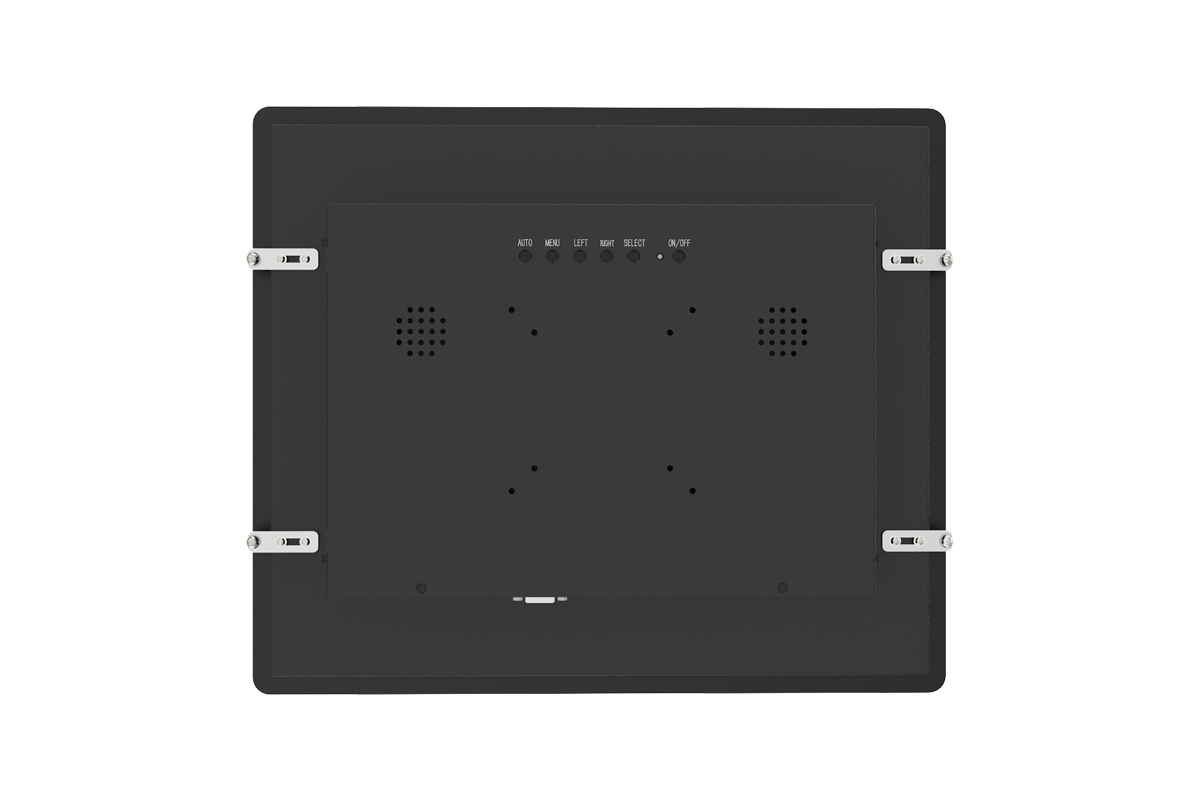

Mounting Options
VESA mount on rear 75mm&100mm

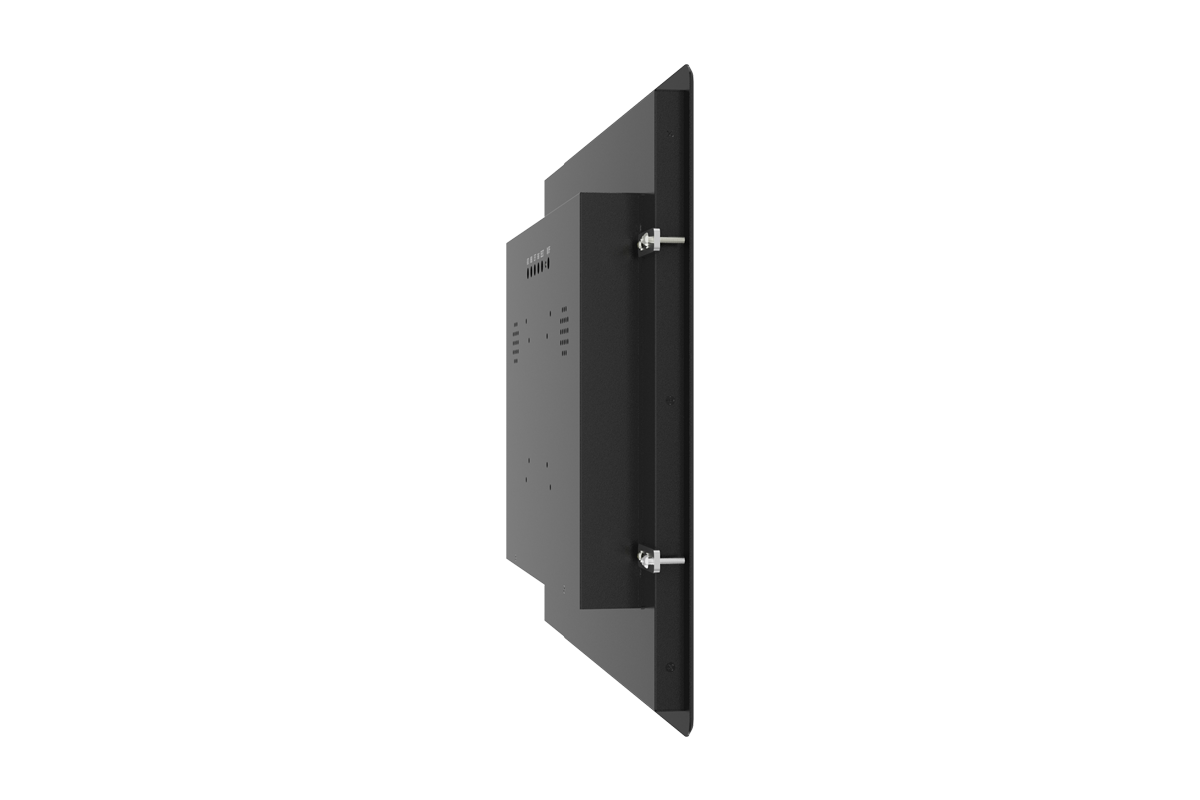

Side buckle mounting distance: 177.4mm
Power Supply
DC:12V3A(Coaxial power jack: 5.5*2.1)
Warranty
2-year
Shipping Dimensions
365X315X110(mm)
Agency Approvals
FCC, CE, ROHS
Support OS
Windows, Linux, Android
What's in the Box
1*HDMI cable，1*USB cable，1* DC cable，1*Power adapter
4* Flush Mount Brackets with screws
