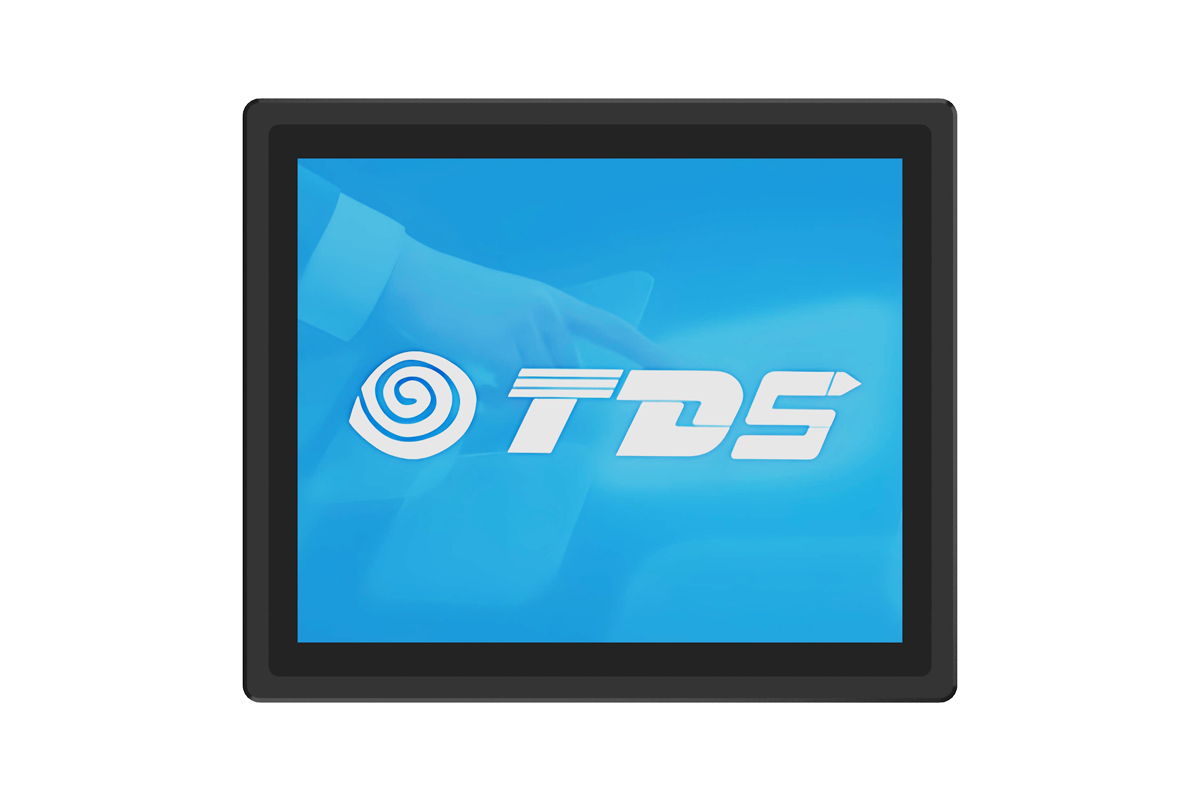

1937B 19" Front-end Embedded Touchscreen Monitor
Industrial control cabinets, HMI, on-site industrial terminals, testing instruments, outdoor touch terminals.
Features
+ Front-mounted flat structure, rounded corner design
+ 3mm narrow aluminum front bezel, IP65 protection rating
+ Industrial-grade LCD panel, energy-saving long-life backlight
+ Standard aspect ratio, resolution 1280X1024 @ 60Hz
+ Projected capacitive touch screen, 10-point supported
+ 3mm tempered touch glass with anti-fingerprint coating
+ USB touch control interface, fast touch response
+ Palm rejection function, glove touch support

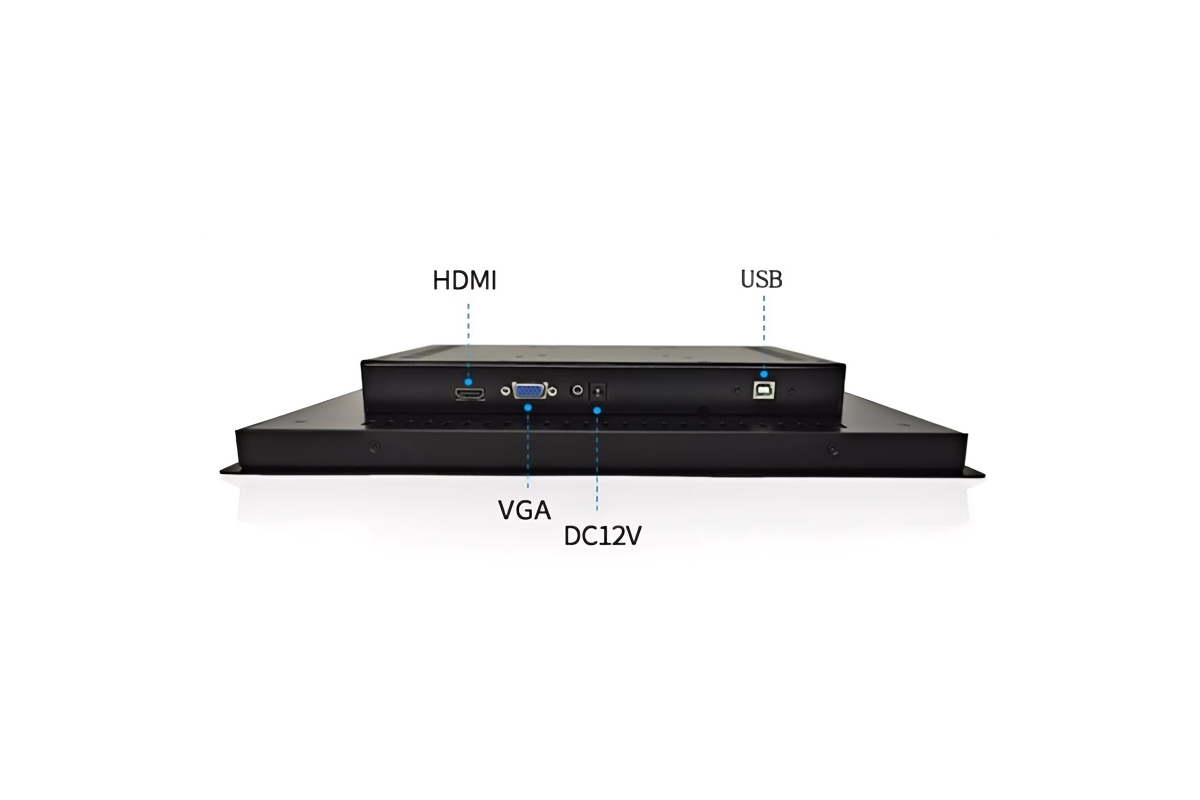

+ Video interfaces: HDMI + VGA

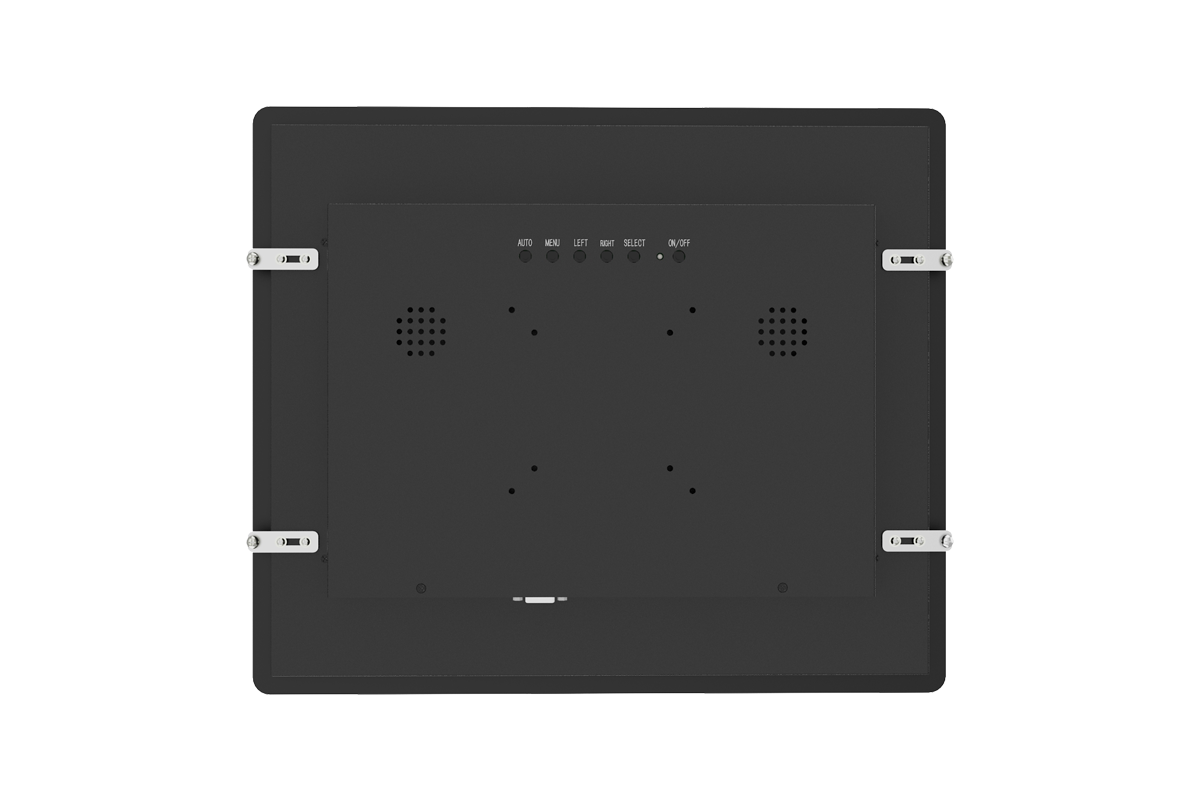

+ Supports side clip mounting and VESA wall mounting
+ Compatible OS: Windows 11, Linux, Android
Optional：
- 5-wire resistive touch screen
- Customizable high brightness
- Customizable external interfaces
Specifications
Model
TDS1937B
Color
Black
Diagonal
19"
Aspect Ratio
5:4
Active Area
377 X 302(mm)
Dimensions
400.6X338.6X43(mm)
Recommended cutout size: 375.5X313.5(mm)
Resolution
1280 X 1024@60Hz
Viewing Angle
Horizontal: 80°/80°
Vertical: 70°/70°
Number of Colors
16.7M, 72% NTSC
Brightness (typical)
LCD Panel: 250 nits
PCAP: 225 nits
Response Time
15ms
Contrast Ratio
1000:1
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
Input method
Finger, Capacitance pen(Standard)
Latex gloves touch (Thickness≤2mm)
Transmittance
≤90%
Surface hardness
7H(Mohs)
Touch Interface
USB2.0
Video Interface
VGA+HDMI
Input Voltage
AC:100-240 VAC, 50/60 Hz
Sealability
Touchscreen sealed to bezel
Drop Test
450g steel ball falls from 1m without breaking
Temperature
Operating: 0°C to 50°C
Storage: -10°C to 60°C
Humidity
Operating: 20% to 70%;
Storage: 10% to 80%;
MTBF
50,000 hours
Shipping Dimensions
415X395X110(mm)
Mounting Options
VESA mount on rear 75mm&100mm

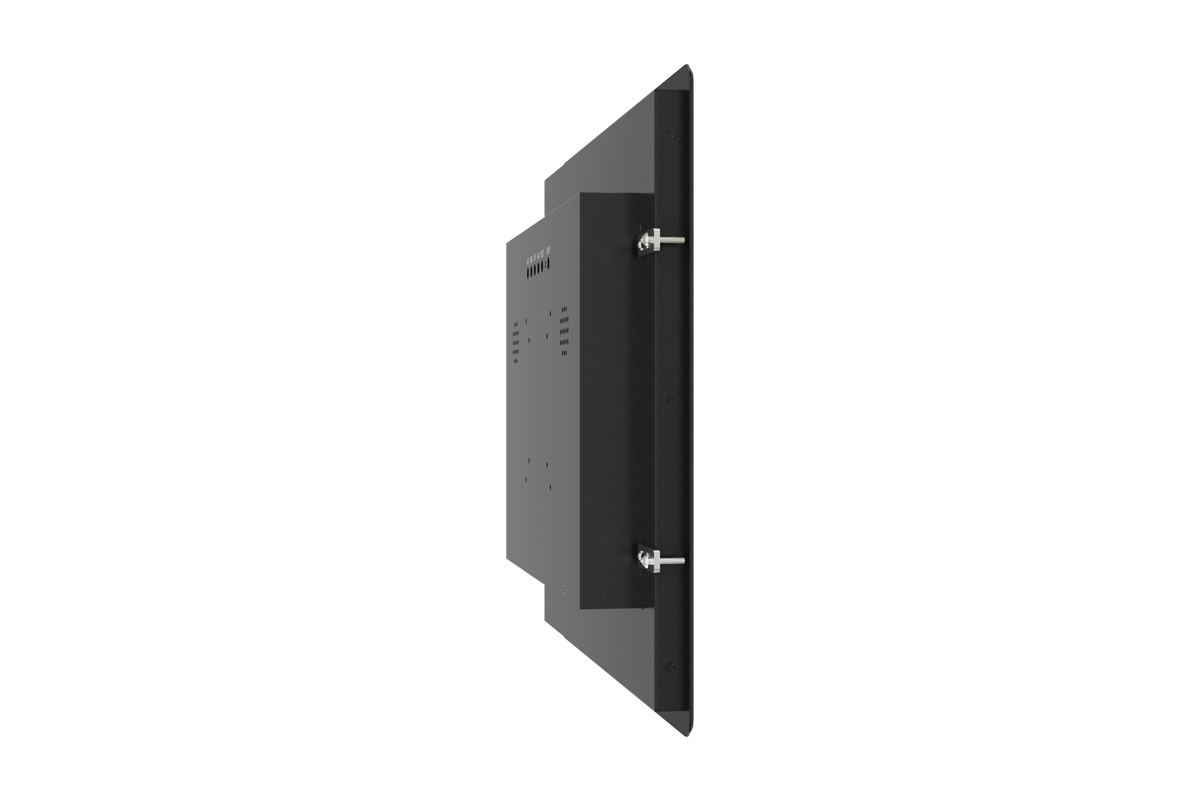

Side buckle mounting distance: 244mm
Power Supply
DC:12V3A(Coaxial power jack: 5.5*2.1)
Warranty
2-year
Agency Approvals
FCC, CE, ROHS
Support OS
Windows, Linux, Android
What's in the Box
1*HDMI cable，1*USB cable，1* DC cable，1*Power adapter
4* Flush Mount Brackets with screws
