Features

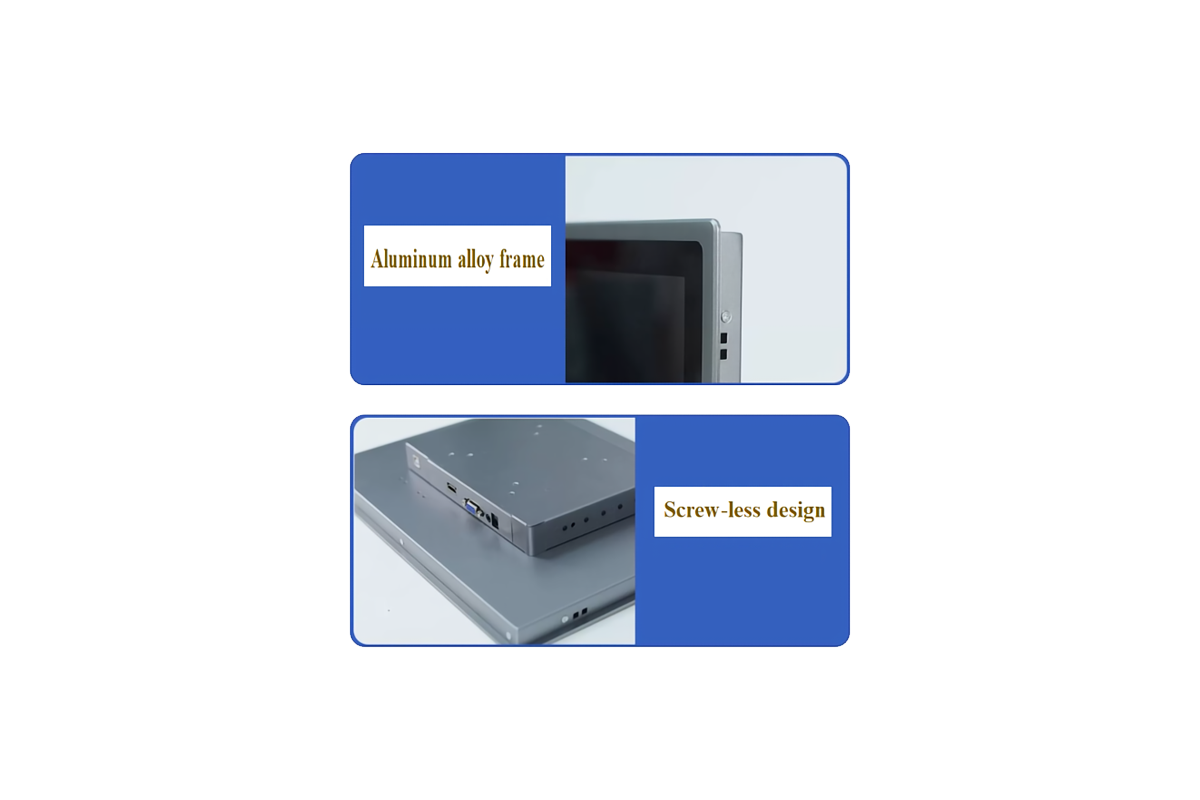

+ Aluminum flat all aluminum front frame
+ Front assembly method, easy to integrate
+ Commercial grade LCD , LED backlight
+ Native resolution 1280X800@60Hz
+ Widescreen ratio, full viewing angle
+ 10-point projected capacitive touchscreen
+ 2MM tempered glass, surface AG coating
+ USB touch interface, driver-free plug and play
+ Ultra-Fast response speed and high precision
+ Anti-riot, anti-vibration, anti-static
+ There are fixing holes on the back and sides

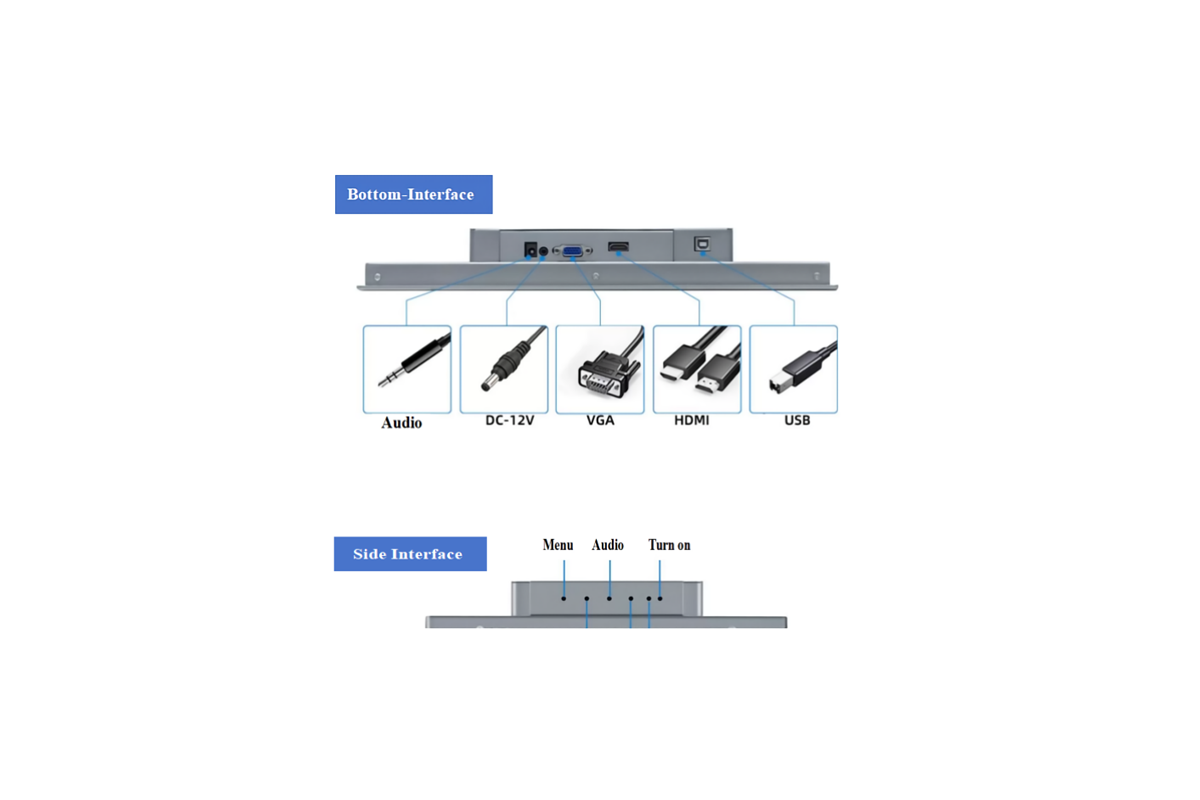

+ Video interface: HDMI+VGA
+ Support OS: Windows/Android/Linux
+ 2-Year warranty
Optional：
- No touch
- Video interface:DP
- ALL-IN-ONE（X86 motherboard)
Specifications
Model
TDS1037C
Color
Silver
Diagonal
10.1"
Aspect Ratio
16:10
Active Area
216 X 135(mm)
Dimensions
275 X 194 X 45(mm)
Resolution
1280 X 800@60Hz
Viewing Angle
Horizontal: 80u00b0/80u00b0
Vertical: 80u00b0 /80u00b0
Number of Colors
16.7M
Brightness (typical)
LCD Panel: 300 nits
PCAP: 265 nits
Response Time
30ms
Contrast Ratio
800:1
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
Input method
Finger, Capacitance pen(Standard)
Latex gloves touch (pre commissioning required)
Transmittance
u226590%
Surface hardness
6H(Mohs)
Touch Interface
USB2.0
Video Interface
VGA+HDMI
Speakers
TwoX2W internal speakers
Input Voltage
AC:100-240 VAC, 50/60 Hz
Sealability
Touchscreen sealed to bezel
Drop Test
200g steel ball falls from 1m without breaking
Weight
(Unpackaged) 1.5KG
Shipping Dimensions
350 X 200 X 135(mm)
Operating Temperature
0u00b0C to 50u00b0C
Storage Temperature
-10u00b0C to 70u00b0C
Humidity
Operating: 20% to 80%;
Storage: 10% to 90%;
MTBF
30,000 hours demonstrated
Mounting Options
VESA:75X75(mm)
100X100(mm)
Base Adjustable Angle
0-90 degrees(Optional)
Power Supply
DC:12V3A
Warranty
2-years
Agency Approvals
FCC, CE, ROHS, CCC
Support OS
Windows, Linux, Android
What's in the Box
1*USB cable,1*HDMI cable,1*DC cable
Accessories
Enhancements, expansions, and extras.
Resources
- 1037C Specification & Drawing
