Point-of-sale, self-service-signage, Commercial applications
Features
+ Flat appearance design
+ Metal shell, ultra-thin shape
+ Commercial LCD, LED backlight
+ Resolution 1920X1080FHD@60Hz
+ 500nits brightness, rich colors, Full viewing angle
+ 10-touch projection capacitive touchscreen
+ 7H hardness tempered glass, with AF coating
+ Smooth to the touch, even with water droplets
+ Video interface: HDMI+VGA

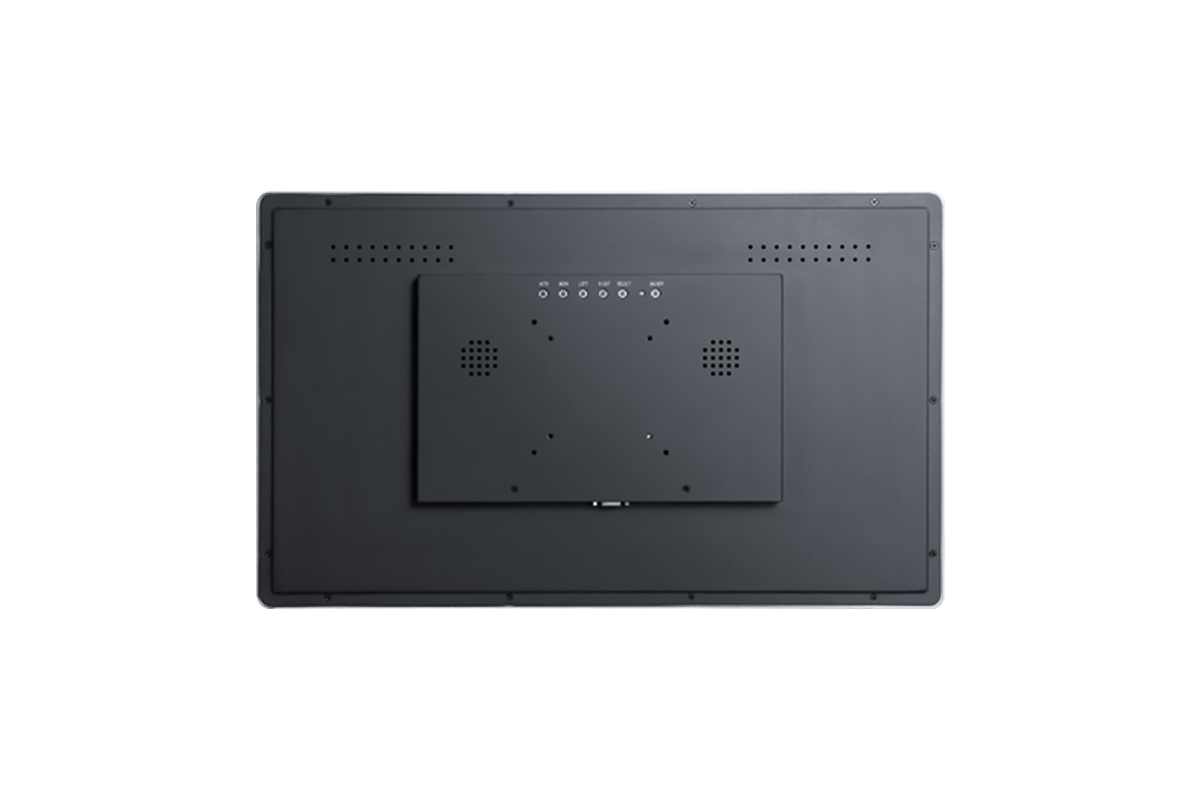

+ Back VESA wall mounting: 100mmX75mm
+ Support OS: Windows/Android/Linux
Optional:
- No Touch
- Private Filter
- AG Coating
- Media play
- Video interface: Display Port
- ALL-IN-ONE(Android /Windows)
Specifications
Model
2102D
Color
Black or Silver
Diagonal
21.5"
Aspect Ratio
16:9
Active Area
476 x 268(mm)
Dimensions
527 x 323 x 45(mm)
Resolution
1920 X 1080 FHD@60Hz
Viewing Angle
Horizontal: 89°/89°
Vertical: 89°/89°
Number of Colors
16.7M, 73% NTSC
Brightness (typical)
LCD Panel: 500 nits
PCAP: 450 nits
Response Time
14ms
Contrast Ratio
1000:1
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
Input method
Finger, Capacitance pen
Latex gloves touch (Thickness≤2mm)
Transmittance
≥90%
Surface hardness
7H(Mohs)
Touch Interface
USB2.0
Video Interface
VGA+HDMI
Speakers
TwoX2W internal speakers
Input Voltage
AC:100-240 VAC, 50/60 Hz
Sealability
Touchscreen sealed to bezel
Drop Test
450g steel ball falls from 1.2m without breaking
Weight
(Unpackaged) 5.2KG
Shipping Dimensions
600 x 395 x 175(mm)
Temperature
Operating: 0°C to 40°C
Storage: -20°C to 60°C
Humidity
Operating: 20% to 70%;
Storage: 10% to 80%;
MTBF
30,000 hours demonstrated
Mounting Options
VESA:75X75(mm), 100X100(mm)
Baseu00a0
Adjustable Angle 0-90 degrees(Optional)
Power Supply
DC:12V5A
Warranty
2-years
Agency Approvals
FCC, CE, ROHS
Support OS
Windows, Linux, Android
What's in the Box
1*USB cable,1*HDMI cable,1*DC cable
