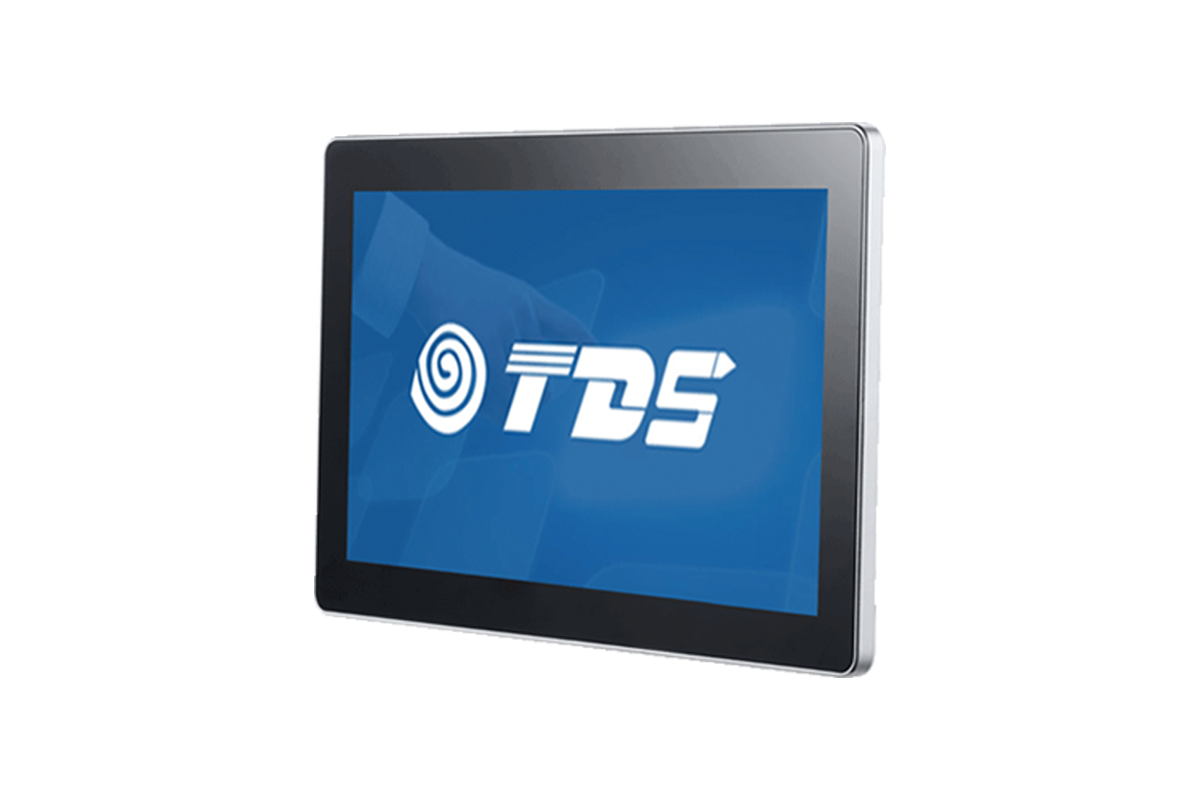

Point-of-sale, self-service-signage, Commercial applications
Features
+ Flat appearance design
+ Metal shell, ultra-thin shape
+ Commercial grade LCD, LED backlight
+ Resolution 1920X1080FHD@60Hz
+ 300 nits brightness, full viewing angle
+ 10-touch projection capacitive touchscreen
+ Cover plate anti-riot and anti-finger
+ Smooth to the touch, even with water droplets
+ Supports horizontal and vertical screen
+ Video interface: HDMI+VGA
+ Back VESA wall mounting: 100mmX75mm
+ Supports Windows/Android/Linux
Optional:
- No Touch
- Private Filter
- AG Coating
- Media Play
- Video interface: Display Port
- All-in-one (Windows/Android)
Specifications
Model
TDS1502D
Color
Black or Silver
Diagonal
15.6"
Aspect Ratio
16:9
Active Area
344 X 193(mm)
Dimensions
394 X 242 X 36.8(mm)
Resolution
1920 X 1080@60Hz
Viewing Angle
Horizontal: 85°/85°
Vertical: 85°/85°
Number of Colors
16.2M, 72% NTSC
Brightness (typical)
LCD Panel: 300 nits
PCAP: 275 nits
Response Time
30ms
Contrast Ratio
800:1
Touch Technology
PCAP (Projected Capacitive) - 10 points Touch
Input method
Finger, Capacitance pen(Standard)
Latex gloves touch (Thickness≤2mm)
Transmittance
≥90%
Surface hardness
6H(Mohs)
Touch Interface
USB2.0

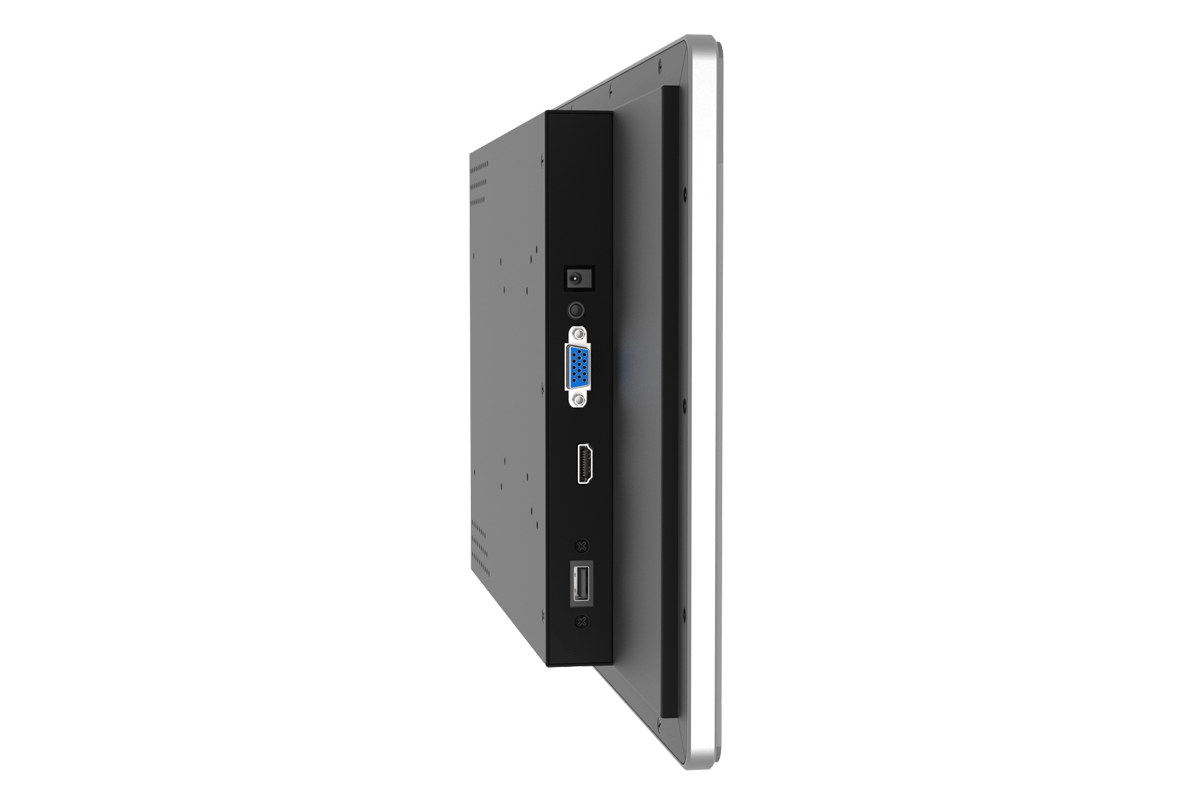

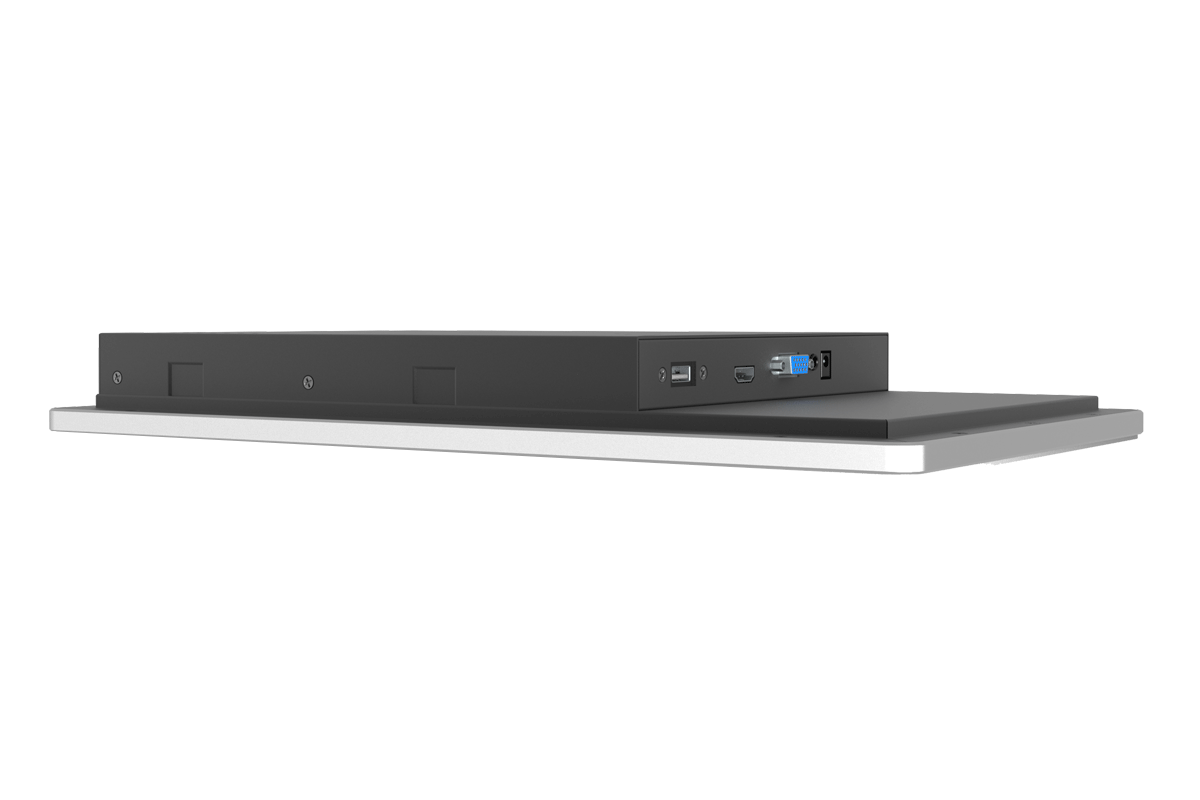

Video Interface
VGA+HDMI
Speakers
TwoX2W internal speakers
Input Voltage
AC:100-240 VAC, 50/60 Hz
Sealability
Touchscreen sealed to bezel
Drop Test
200g steel ball falls from 0.8m without breaking
Weight
(Unpackaged) 2KG
Shipping Dimensions
520 x 340 x 135(mm)
Temperature
Operating: 0°C to 40°C
Storage: -20°C to 60°C
Humidity
Operating: 20% to 70%;
Storage: 10% to 80%;
MTBF
30,000 hours demonstrated
Mounting Options
VESA:75X75(mm), 100X100(mm)
Base Adjustable Angle
0-90 degrees(Optional)
Power Supply
DC:12V3A
Warranty
2-years
Agency Approvals
FCC, CE, ROHS
Support OS
Windows. Linux, Android
What's in the Box
1*USB cable,1*HDMI cable,1*DC cable
