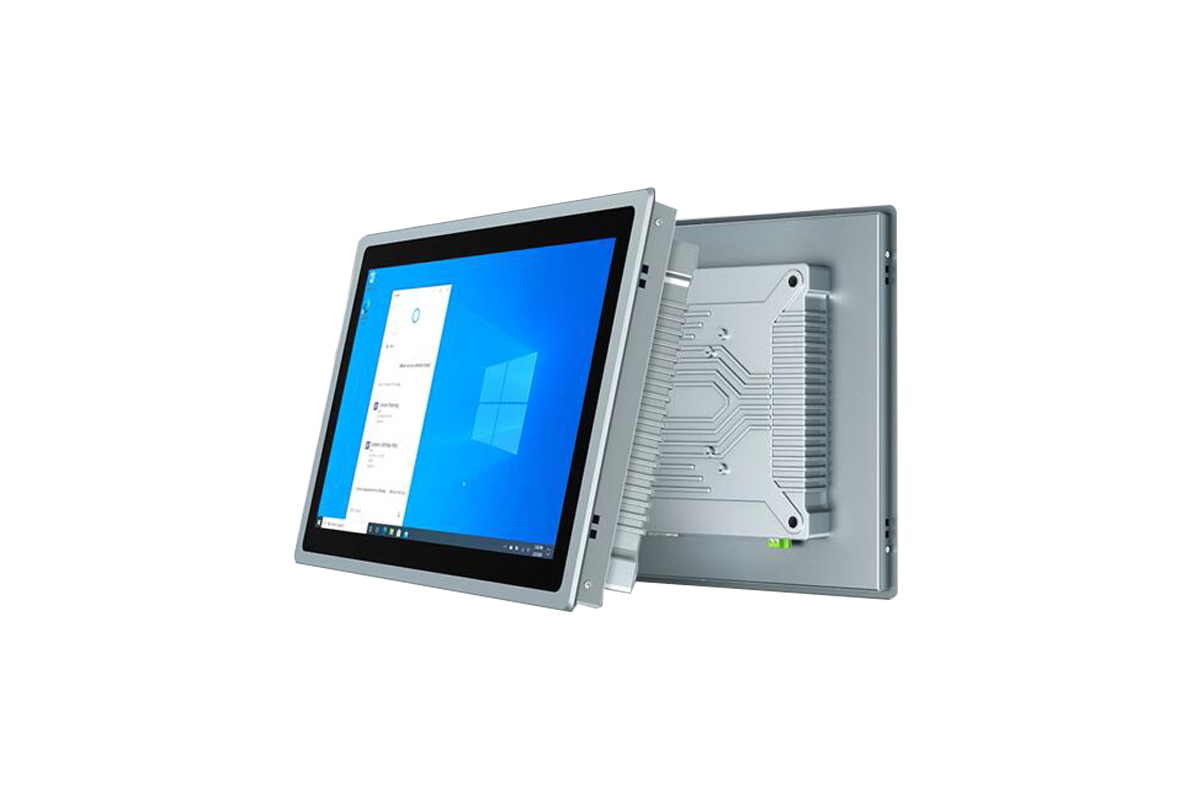

2130C 21.5" Industrial Touchscreen Computer(16:10)
Industrial automation console, IOT self-service terminal, industrial dashboard
Features
+ Zero bezel frame + Aluminum type material Shell
+ Front panel meets IP65 standard, dust/waterproof
+ Industrial grade LCD screen, LED backlight
+ Resolution 1920X1080FHD@60Hz
+ 10-point projection capacitive touchscreen
+ Cover plate waterproof and anti-riot treatment
+ Fanless Low power consumption motherboard
+ Intel Celeron®J1900 high-performance processor
+ 2* Intel 211AT gigabit network
+ 9-27V wide voltage power supply
+ Support 7X24 hours operation
+ Support OS:windows10/Linux/Ubuntu
+ 2-years warranty
Optional：
- No touchscreen
- AG coating
- Android motherboard
- Interface customized
- Brightness customize
Specifications
Model
2130C
Color
Silver/black
Diagonal
21.5”
Aspect Ratio
16:9
Active Area
476.6X268.1(mm)
Dimensions
547X334X59(mm)
Native Resolution
1920X1080@60Hz
Number of Colors
16.7M , 72% NTSC
Viewing Angle
Horizontal:89°/89°, Vertical:89°/89°
Aspect Ratio
1000:1 (Typ.)
Brightness
LED: 300nits, Touch:275nits
LED Response
8ms
Touch Technology
Projected capacitive touch screen -10 points
Glass Thickness
3mm,tempered anti-riot treatment
Touch Mode
Fingers/silicone gloves/capacitive stylus
Touch the accuracy
>2mm
Touch Interface
USB2.0
Processor
Intel® Celeron®J6412 (1.5MB Cache,up to 2.6GHz)
Intel® Core™ i5-10210U (6MB Cache, up to 4.2GHz)
BIOS
AMI
Graphics
Intel® UHD Graphics for 10th
Memory
DDR4L-8GB
Storage
SSD 128GB
LAN
2*Gigabit LAN(intel i211 AT)
Wireless
802.11 a/b/g/n/ac/ax 2.4GHz/5GHz
Bluetooth
Bluetooth 5.2
Input Voltage
AC: 100-240 VAC , 50-60 Hz
I/O Interface
2*USB2.0,2*USB3.0,2*COM, 2*RJ45 LAN Port,1*HDMI,1*VGA
1* Audio Port (3.5 mm headset jack), 1* 12V DC , 1*Power ON/OFF
Watchdog
Supports hardware reset (level 256, 0-255 seconds)
Temperature
Operating: 0°C-50°C; Storage: -20°C-70°C
Humidity
Operating: 20%-70%; Storage: 10%-80%
Shock
5—19Hz/1.0mm amplitude,19-200Hz/1.0g acceleration
Protection Grade
The front panel IP65 is dustproof and waterproof
Drop Ball Test
The 450g ball does not broken when it falls from 1.0meters
MTBF
30000 hours
Power Supply
DC:12V6A(2pin,Phoenix terminal)
VESA Mounting
75*75(mm),100*100(mm)
Support OS
Windows10/Windows11/Linux (The product comes with no OS)
What’s in the Box
1*Power cable, 1*Power Adapter, 4*Buckles
Agency Approvals
FCC; CE; ROHS
Resources
- 2130C Specification & Drawing
