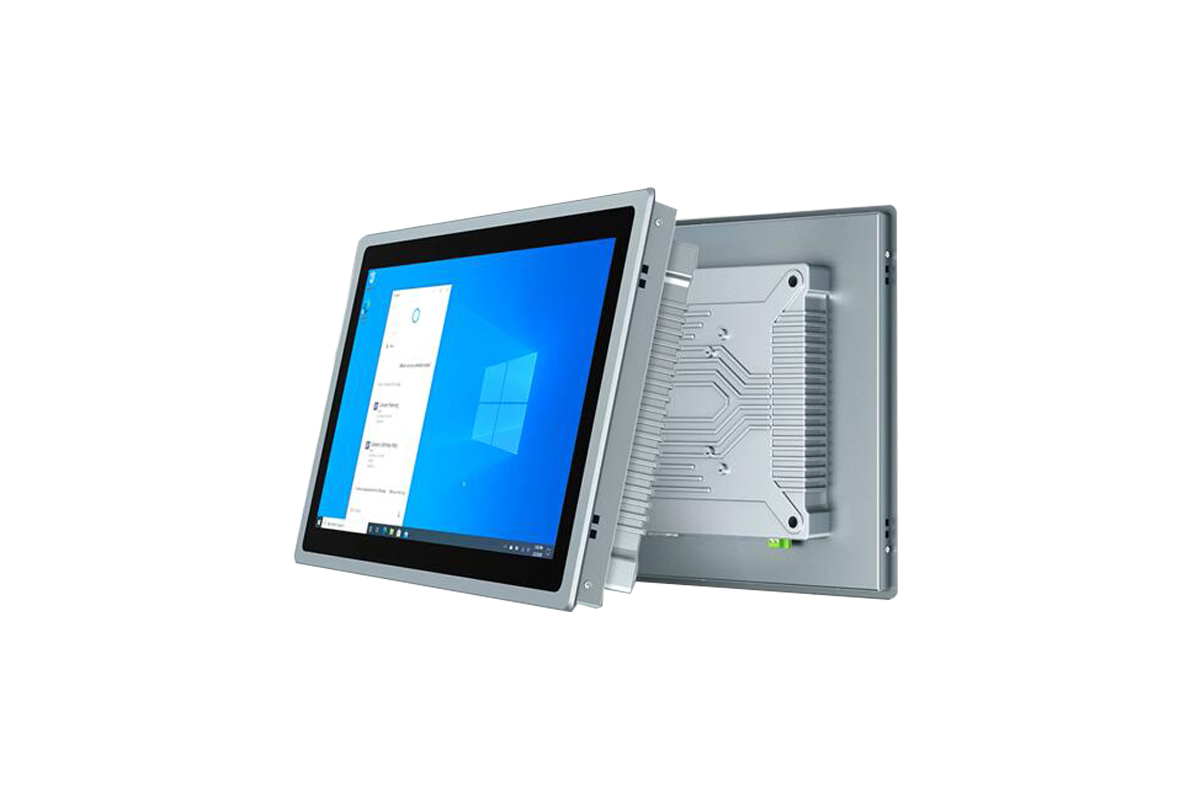

1030C 10.1" Industrial Touchscreen Computer(16:10)
Industrial automation console, IOT self-service terminal, industrial dashboard
Features
+ Zero bezel frame + Aluminum type material Shell
+ Front panel meets IP65 standard, dust/waterproof
+ Industrial grade LCD screen, LED backlight
+ Resolution 1280X800@60Hz
+ 10-point projection capacitive touchscreen
+ Cover plate waterproof and anti-riot treatment
+ Fan-less Low power consumption motherboard
+ Intel Celeron®J1900 high-performance processor
+ 2* Intel 211AT gigabit network
+ 9-27V wide voltage power supply
+ Support 7X24 hours operation
+ Support OS:windows10/Linux/Ubuntu
+ 2-years warranty
Optional：
- No touchscreen
- AG coating
- Android motherboard
- Interface customized
- Brightness customize
Specifications
Model
1030C
Color
Silver/black
Diagonal
10.1"
Aspect Ratio
16:10
Active Area
216.38X135.36(mm)
Dimensions
275.96X194.6X50(mm)
Native Resolution
1280X800@60Hz
Number of Colors
16.7M, 50% NTSC
Viewing Angle
Horizontal:85°/85°, Vertical:85°/85°
Aspect Ratio
900:1 (Typ.)
Brightness
LED: 300nits, Touch:275nits
LED Response
30ms
Touch Technology
Projected capacitive touch screen -10 points
Glass Thickness
1.1mm,tempered anti-riot treatment
Touch Mode
Fingers/silicone gloves/capacitive stylus
Touch the accuracy
>2mm
Touch Interface
USB2.0
Processor
Intel® Celeron®J1900
(4MB Cache,up to 2.42GHz
IntelCeleron®J4215
(4MB Cache, up to 2.7GHz)
BIOS
AMI
Graphics
Intel®HD Graphics
Intel®UHD Graphics600
Memory
DDR3L-4GB
DDR4L-8GB
Storage
SSD 64GB
SSD 128GB
LAN
2*Gigabit LAN(intel i22 AT)
2*2.5G LAN(intel i225/i226)
Wireless
802.11 a/b/g/n/ac 2.4GHz
802.11 a/b/g/n/ac/ax 5GHz
Bluetooth
Bluetooth 4.1
Bluetooth 5.2
Input Voltage
AC: 100-240 VAC , 50-60 Hz

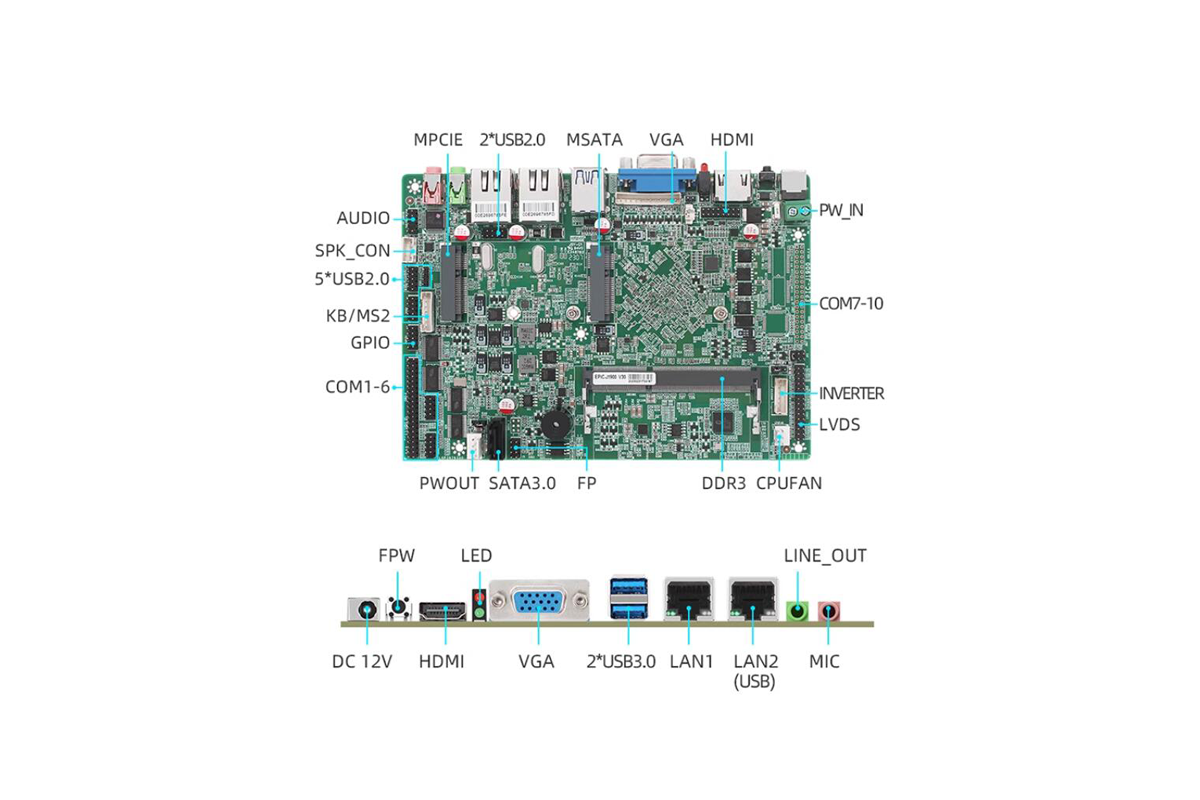

I/O Interface
2*USB2.0,2*USB3.0,2*COM, 2*RJ45 LAN Port,1*HDMI,1*VGA
1* Audio Port (3.5 mm headset jack), 1* 12V DC , 1*Power ON/OFF
Watchdog
Supports hardware reset (level 256, 0-255 seconds)
Temperature
Operating: 0°C-50°C; Storage: -20°C-70°C
Humidity
Operating: 20%-70%; Storage: 10%-80%
Shock
5 – 19Hz/1.0mm amplitude,19-200Hz/1.0g acceleration
Protection Grade
The front panel IP65 is dustproof and waterproof
Drop Ball Test
The 200g ball does not broken when it falls from 0.8 meters
MTBF
30000 hours
Power Supply
DC:12V5A(2pin,Phoenix terminal)
VESA Mounting
75*75(mm),100*100(mm)
Support OS
Windows10/Windows11/Linux (The product comes with no OS)
What’s in the Box
1*Power cable, 1*Power Adapter, 4*Buckles
Agency Approvals
FCC; CE; ROHS
Resources
- 1030C Specification & Drawing
- View Spec
