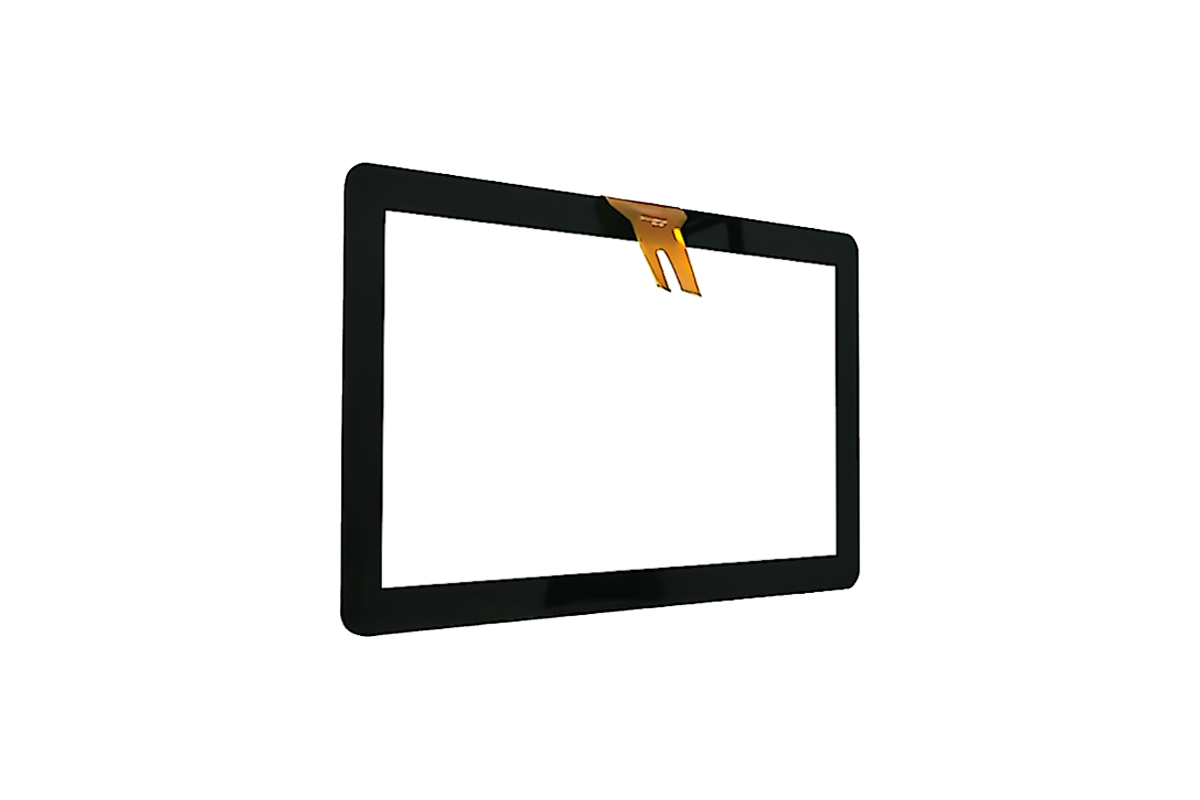

55" TE Projected Capacitive Touchscreen
Features
- 10-point projected capacitive touchscreen
- G+G glass structure, high light transmittance

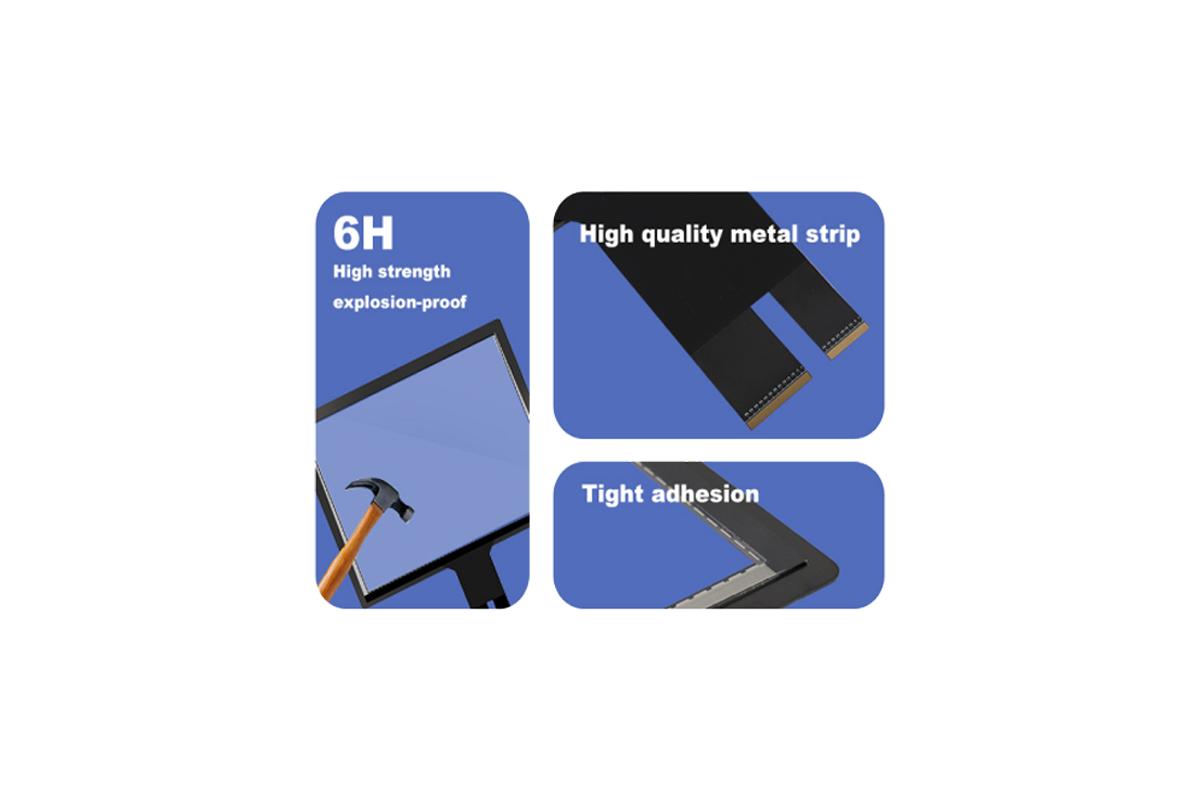

- 3mm explosion-proof tempered glass cover
- AF anti-fingerprint treatment, smooth touch
- FPC strip anti-static material
- EETI industrial grade touch control IC
- USB touch interface, driver-free
- Supports glove and stylus touch
- Support OS:Windows/Android/Linux
- 2-years Warranty
Optional:
- 2mm-5mm thickness glass
- Special glass shapes
- Logo customization
- Different colors print
- Anti-glare coating

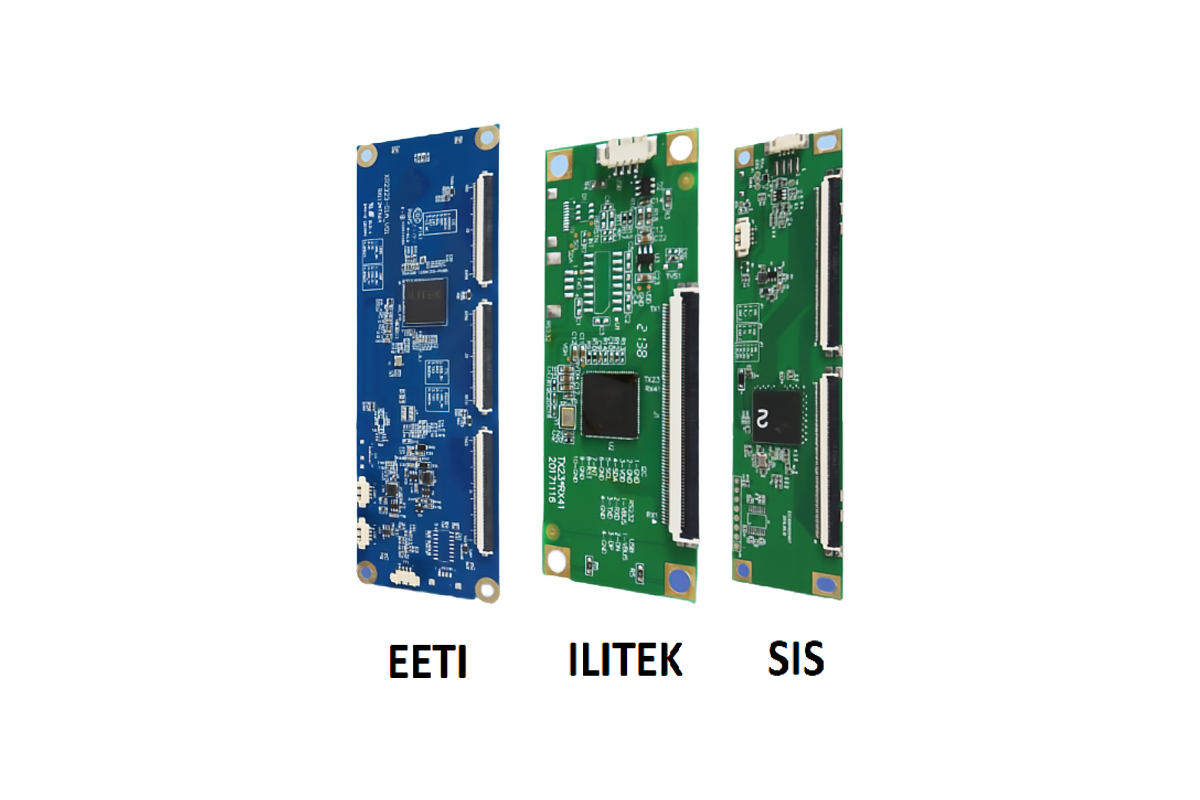

- Different touch IC solutions
- Stylus customization
- Touch interface:RS232
Specifications
Model
TE-55-1609V1
Silk printing color
Black
Structure
Glass + Film + Film
Aspect Ratio
16:9
Window VA
1212.9X683.7(mm)
R angle
R0
Cover Lens OD
1275X745(mm)
Cover Glass Thickness
3.0mm
Sensor Thickness
0.125mm
Overall Thickness
3.4mm
Cover surface treatment
Anti-fingerprint
Surface Hardness
6H
Transparency
90%
Touch Controller
EETI_86H80136SCAG
Touch Solution
COB
Interface of CT
USB(Standard)
Number of Touches
10points
Input Methods
Finger
Gloved hand
Passive stylus
Positional Accuracy
12mm
FPC outlet length
138.8mm
Report Rate
100Hz
Response time
<12ms
Operating Voltage
5V
Durability
Over 50 million touches in one location
Explosion-proof
450 grams of steel ball height 0.6meters vertical drop center point will not break
Temperature
Operating: -10°C-60°C;
Storage: -20°C-70°C
Humidity
Operating: 20%-80%;
Storage: 10%-90%
Warranty
2-year
Operating system
WinXP,Win7, Win8,Win10, Linux, Wince, Android, Mac
Accessories

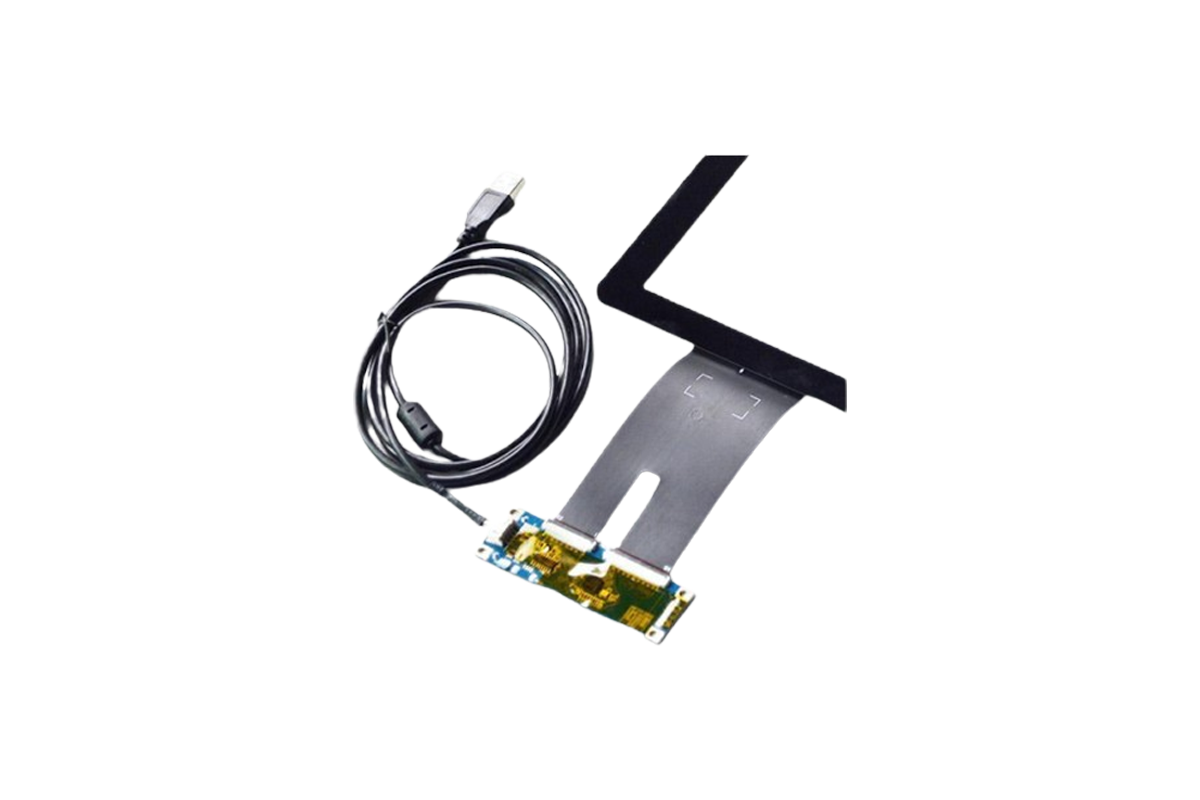

1*1.5m USB cable
