Specifications
Model
HC-21.5-B-1609V1
Silk printing color
Black
Structure
Glass+Glass
Aspect Ratio
16:9
Window VA
476.64X268.11(mm)
R angle
R3/R8
Cover Lens OD
515.4X310.7(mm)
Cover Glass Thickness
3.0mm
Sensor Thickness
0.75mm
Overall Thickness
3.95mm
Cover surface treatment
Anti-fingerprint
Surface Hardness
6H
Transparency
90%

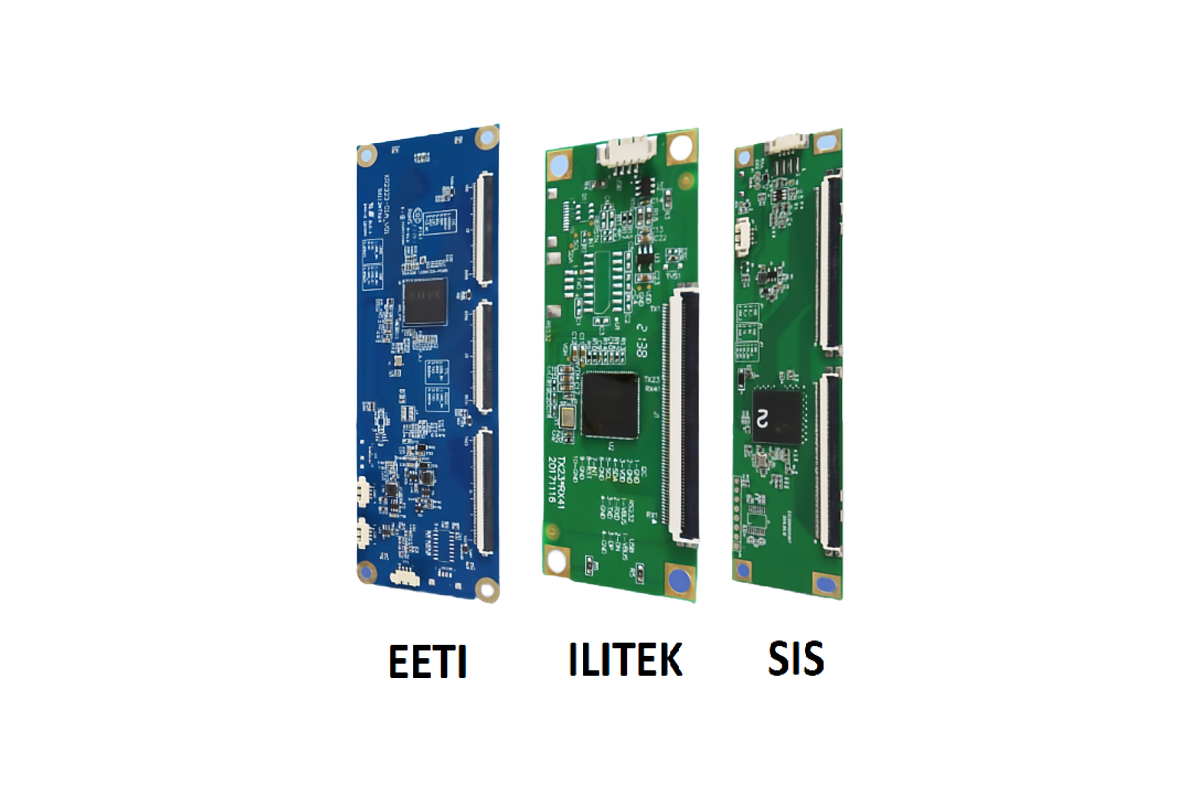

Touch Controller
EETI_80W84
Touch Solution
COB
Interface of CT
USB(Standard)
Number of Touches
10points
Input Methods
Finger
Gloved hand
Passive stylus
Positional Accuracy
12mm
FPC outlet length
155mm
Report Rate
200Hz
Response time
<10ms
Operating Voltage
5V
Durability
Over 50 million touches in one location
Explosion-proof
450 grams of steel ball height 0.6meters vertical drop center point will not break
Temperature
Operating: -10°C-60°C;
Storage: -20°C-70°C
Humidity
Operating: 20%-80%;
Storage: 10%-90%
Warranty
2-year
Operating system
WinXP,Win7, Win8,Win10, Linux, Wince, Android, Mac

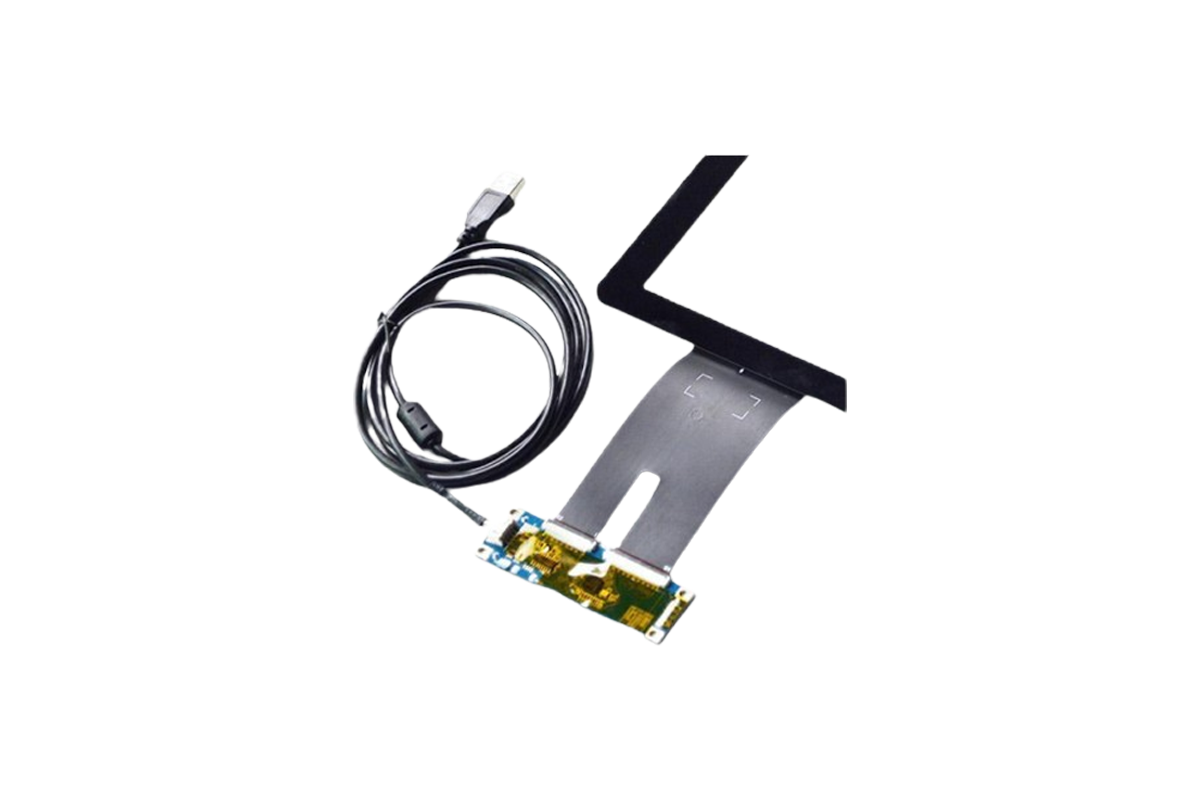

Accessories
1*1.5m USB cable
Accessories
Enhancements, expansions, and extras.
Sorry, the accessories are not available. Please get in touch for more details.
Resources
- 21.5 B inch PCAP Touchscreen Specification
- VIEW
Sorry, the video is not available. Please get in touch for more details.
