- 10-point projected capacitive touchscreen
- Commercial grade LCD , LED backlight

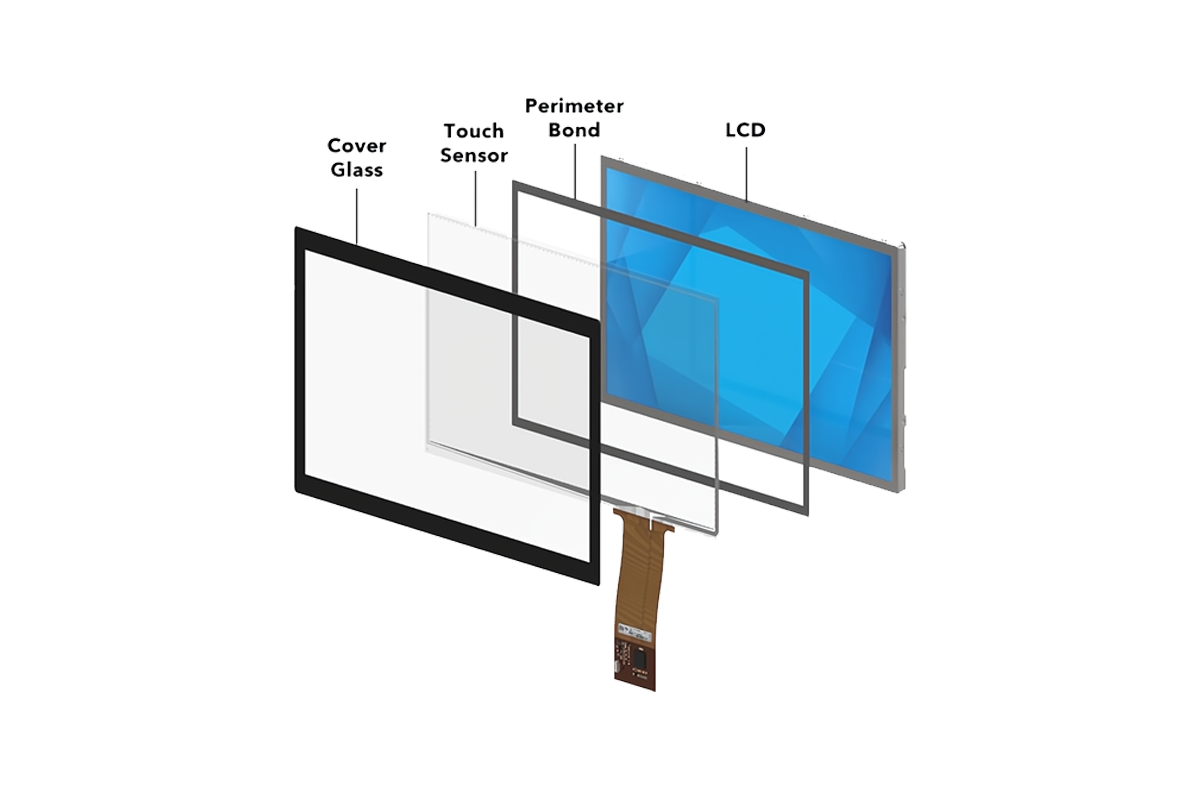

- G+G glass structure, high light transmittance
- Explosion-proof tempered glass cover
- AF anti-fingerprint treatment, smooth touch
- USB touch interface, driver-free
- Supports glove and stylus touch
- Support OS:Windows/Android/Linux
- 2-years Warranty
Optional:
- 1mm-5mm thickness glass
- Special glass shapes
- Industrial grade LCD
- 500-1000nits backlight
- Different colors print
- Anti-glare coating
- Different touch IC solutions
- Stylus customization
- Touch interface:RS232
- 10.1’’-32’’custom size
Specifications
Model
2150C-A
Silk printing color
Black
Structure
Glass+Glass
Aspect Ratio
16:9
Window VA
477X268(mm)
Cover Glass Thickness
3.0mm
LCD Resolution
1920X1080
LCD interface
LVDS
Viewing Angle
89/89/89/89
LCD
400cd/m²
LCD Thickness
11.2mm
Number of Touches
10points
Cover Lens OD
525X321(mm)
Input Methods
Finger
Gloved hand
Passive stylus
Cover surface treatment
Anti-fingerprint
Surface Hardness
6H
Transparency
90%
Touch Controller
ILITEK/EETI
Touch Solution
COB
Interface of CT
USB
Positional Accuracy
±2mm
FPC outlet length
155mm
Report Rate
≥100Hz
Response time
<10ms
Operating Voltage
5V
Durability
Over 50 million touches in one location
Temperature
Operating: -10°C-60°C; Storage: -20°C-70°C
Humidity
Operating: 20%-80%; Storage: 10%-90%
Warranty
2-year
Operating system
WinXP,Win7, Win8,Win10, Linux, Wince, Android, Mac
Accessories
1*1.5m USB cable
Accessories
Enhancements, expansions, and extras.
Not available now
