Features
- 10-point projected capacitive touchscreen
- Commercial grade LCD , LED backlight
- G+G glass structure, high light transmittance
- Explosion-proof tempered glass cover
- AF anti-fingerprint treatment, smooth touch
- USB touch interface, driver-free
- Supports glove and stylus touch
- Support OS:Windows/Android/Linux
- 2-years Warranty
Optional:
- 1mm-5mm thickness glass
- Special glass shapes
- Industrial grade LCD
- 500-1000nits backlight
- Different colors print
- Anti-glare coating
- Different touch IC solutions
- Stylus customization
- Touch interface:RS232
- 10.1’’-32’’custom size
Specifications
Model
1031C-B
Diagonal
10.1 inch
Silk printing color
Black

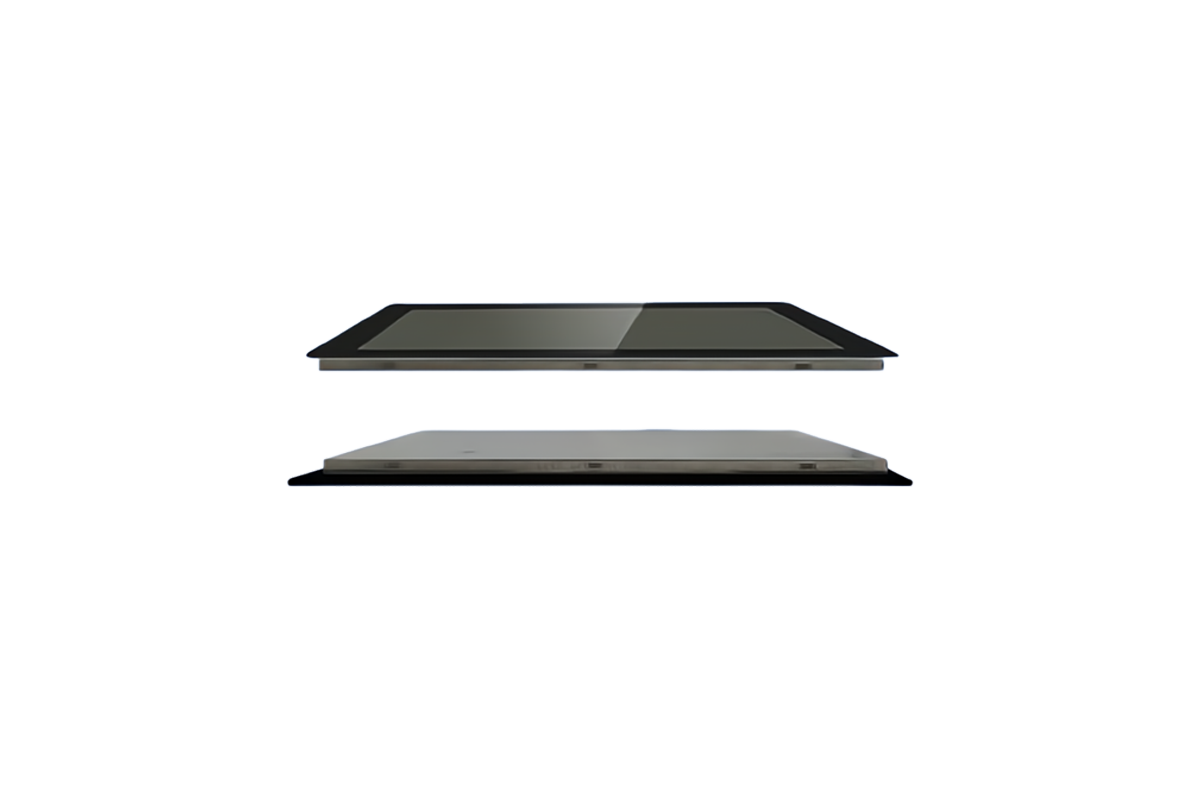

Structure
Glass+Glass
Number of Touches
10points
Input Methods
Finger
Gloved hand
Passive stylus
Aspect Ratio
16:10
LCD Resolution
1280 X 800
LCD interface
EDP/LVDS
Viewing Angle
80/80/80/80
LCD
300cd/mu00b2
Cover Glass Thickness
1.1mm
LCD Thickness
4.59mm
Window VA
217.96X136.6(mm)
Cover Lens OD
251.96X170.6(mm)
Cover surface treatment
Anti-fingerprint
Surface Hardness
6H
Transparency
90%
Touch Controller
ILITEK/EETI
Touch Solution
COF
Interface
I2C USB(Standard)
Positional Accuracy
u00b12mm
FPC outlet length
57mm
Report Rate
u2265100Hz
Response time
<10ms
Operating Voltage
5V
Durability
Over 50 million touches in one location
Temperature
Operating: -10u00b0C-60u00b0C;
Storage: -20u00b0C-70u00b0C
Humidity
Operating: 20%-80%;
Storage: 10%-90%
Warranty
2-year
Operating system
WinXP,Win7, Win8,Win10, Linux, Wince, Android, Mac
Accessories
1*1.5m USB cable
Accessories
Enhancements, expansions, and extras.
Sorry, the accessories are not available. Please get in touch for more details.
Resources
- 1031C-B 10.1 inch PCAP Touchscreen Specification
- Downloadu00a0
Sorry, the video is not available. Please get in touch for more details.
