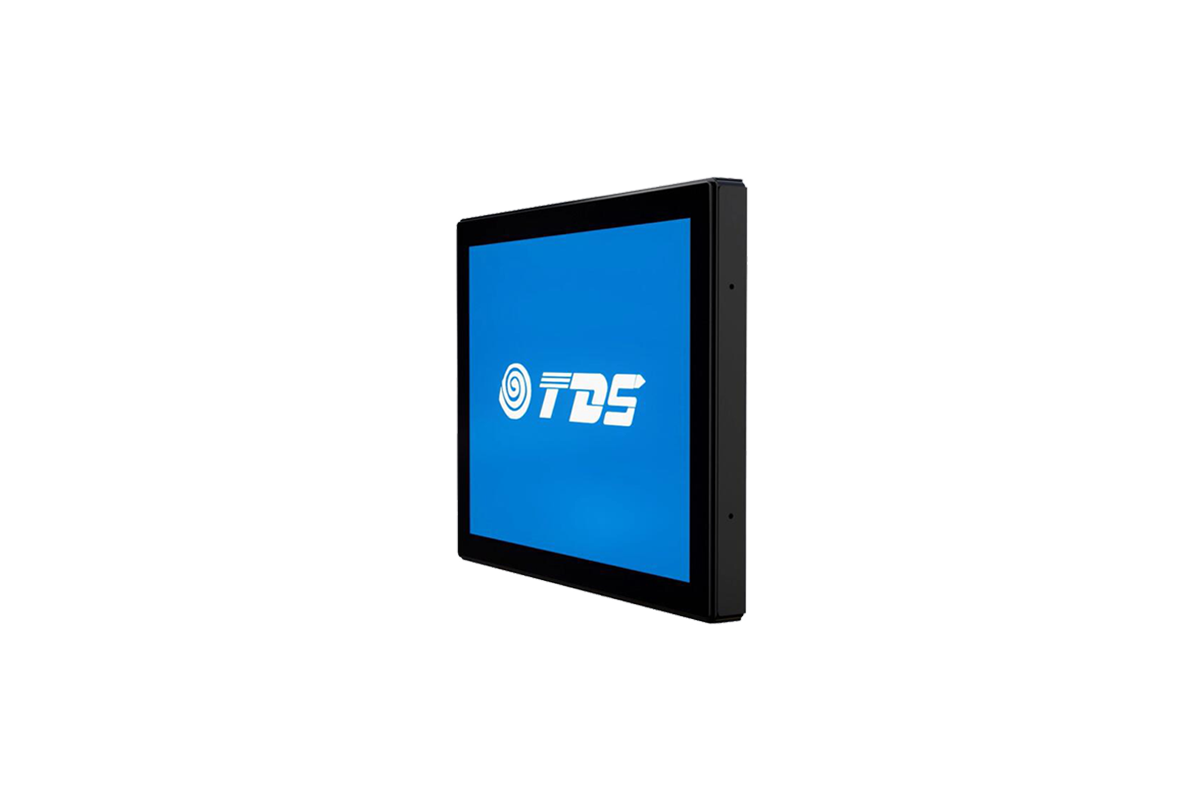

1538H 1200 Nits 15" Outdoor Open Frame Touchscreen Monitor(4:3)
Charging stations, payment & ticketing vending machine, outdoor ATM & baking, Wayfinding & signage
Features
+ Open frame flat design, metal material
+ IP55 level front panel waterproof
+ Industrial grade LCD, LED backlight
+ Resolution 1024X768@60Hz
+ 1200nits brightness backlight
+ 10-Point projection capacitive touchscreen
+ Cover plate anti riot and anti-glare coating
+ Bonded with UV-resistant optical glue
+ Sunlight adaptive adjustment module

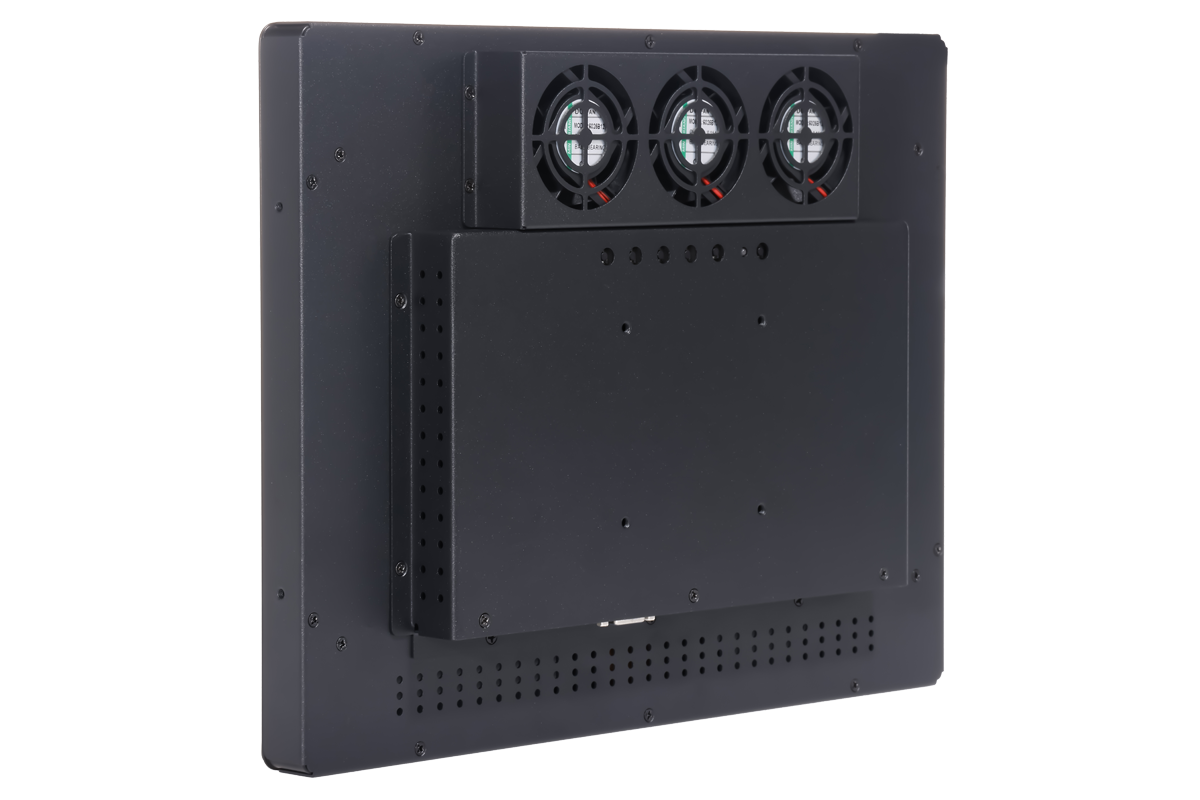

+ Temperature control cooling fan module

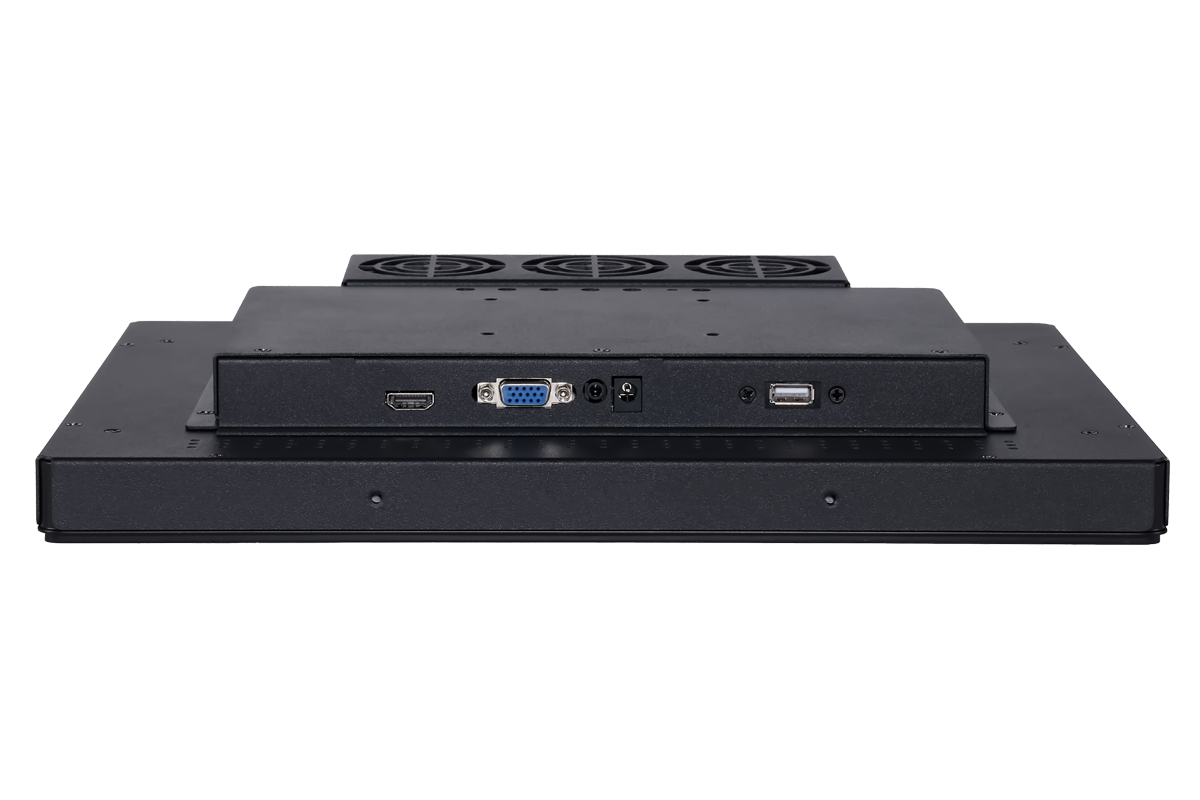

+ Video interface: HDMI+VGA
+ Reserve side and back assembly holes
+ Support OS: Windows, Android, Linux
Optional:
- No Touch
- Touch interface: RS232
- Outdoor protection: Anti-infrared & Anti-ultraviolet
- Video interface: Display Port
- Loosening-proof connector
Specifications
Model
TDS1538H
Color
Black or Silver
Diagonal
15"
Aspect Ratio
4:3
Active Area
305 x 229(mm)
Dimensions
353.6 x 276 x 54.5(mm)
Contrast Ratio
800:1
Resolution
1024 X 768@60Hz
Number of Colors
16.2M, 70% NTSC
Viewing Angle
Horizontal: 80°/80°
Vertical: 65°/80°
Brightness (typical)
LCD Panel: 1200 nits
PCAP: 1035 nits
Brightness Adjustment
The brighter the ambient light, the brighter the LCD screen
The darker the ambient light, the darker the LCD screen, and enter the power saving mode
Response Time
30ms
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
Mode of Touch
Finger, Capacitance pen(Standard)
Latex gloves touch (Thickness≤2mm)
Glass Thickness
3mm, tempered, surface AG coating
Glass Processing Technology
UV protection≥99.4%(optional),
Infrared protection≥86%(optional)
Surface hardness
7H(Mohs)
Touch Accuracy
≤2mm
Touch Interface
USB2.0
Video Interface
VGA+HDMI
Input Voltage
AC:100-240 VAC, 50/60 Hz
Power Supply
12V-19V8A(Power Jack : 2.1mmx5.5mm)
Power Consumption
ON (Typical - 100% Brightness): 27.3W
SLEEP FROM PC (monitor + adapter): 1.5W
Temperature control
*When the internal temperature reaches > 30°C, start the fans.
*When the temperature drops <30°C,stop the fans
Cooling Method
Cooling fan set
Temperature
Operating: 0°C to 50°C
Storage: -20°C to 80°C
Humidity
Operating: 20% to 70%;
Storage: 10% to 80%;
Mounting Options
Back VESA two groups of holes: 75mm&100mm
Each of the four sides has a set of fixing holes: 142mm
Weight
(Unpackaged) 4KG
Drop Test
200g steel ball falls from 0.8m without breaking
Shipping Dimensions
450 x 340 x 135(mm)
MTBF
50,000 hours demonstrated
Warranty
2-years
Agency Approvals
FCC, CE, ROHS
Support OS
Windows, Linux, Android
What's in the Box
1*USB cable,1*HDMI cable,1*DC cable
