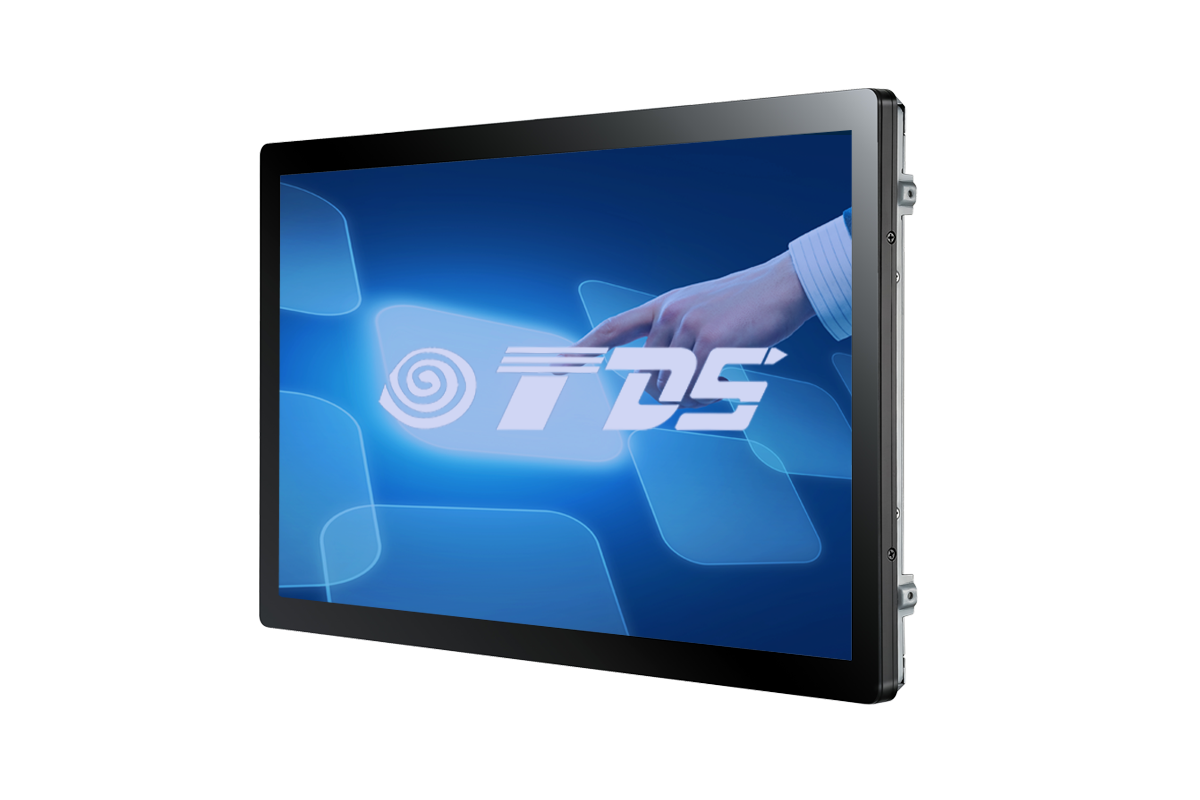

2439C 24" Openframe Touchscreen Monitor(16:9)
self service, Gaming, Industrial automation, Healthcare, Kiosks, Interactive signage
Features
+ Metal shell, open frame design
+ Flat and zero bezel appearance
+ Commercial grade LCD, LED backligh
+ Resolution 1920X1080FHD@60Hz
+ High contrast full viewing Angle
+ Supports vertical and horizontal screen
+ 10 point projection capacitive touchscreen
+ Cover plate anti riot and anti fingerprint
+ Video interface: HDMI+VGA
+ Removable OSD remote for easy use

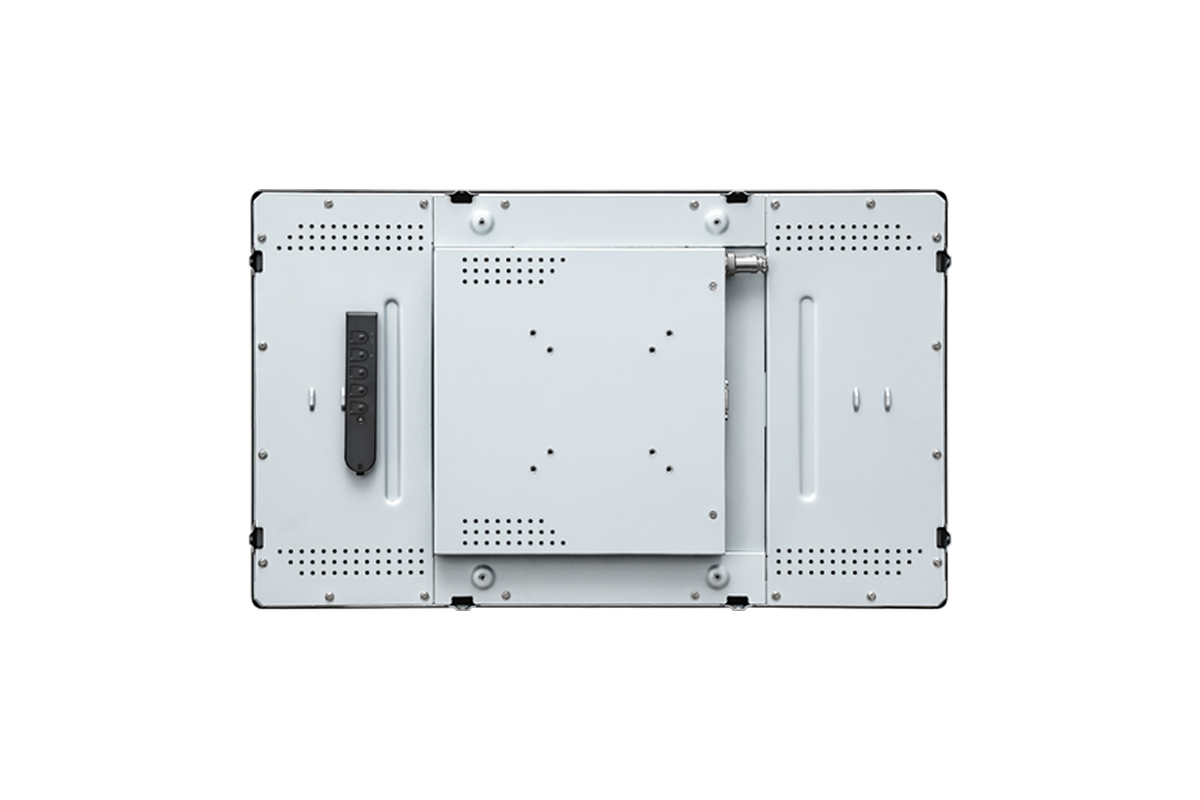

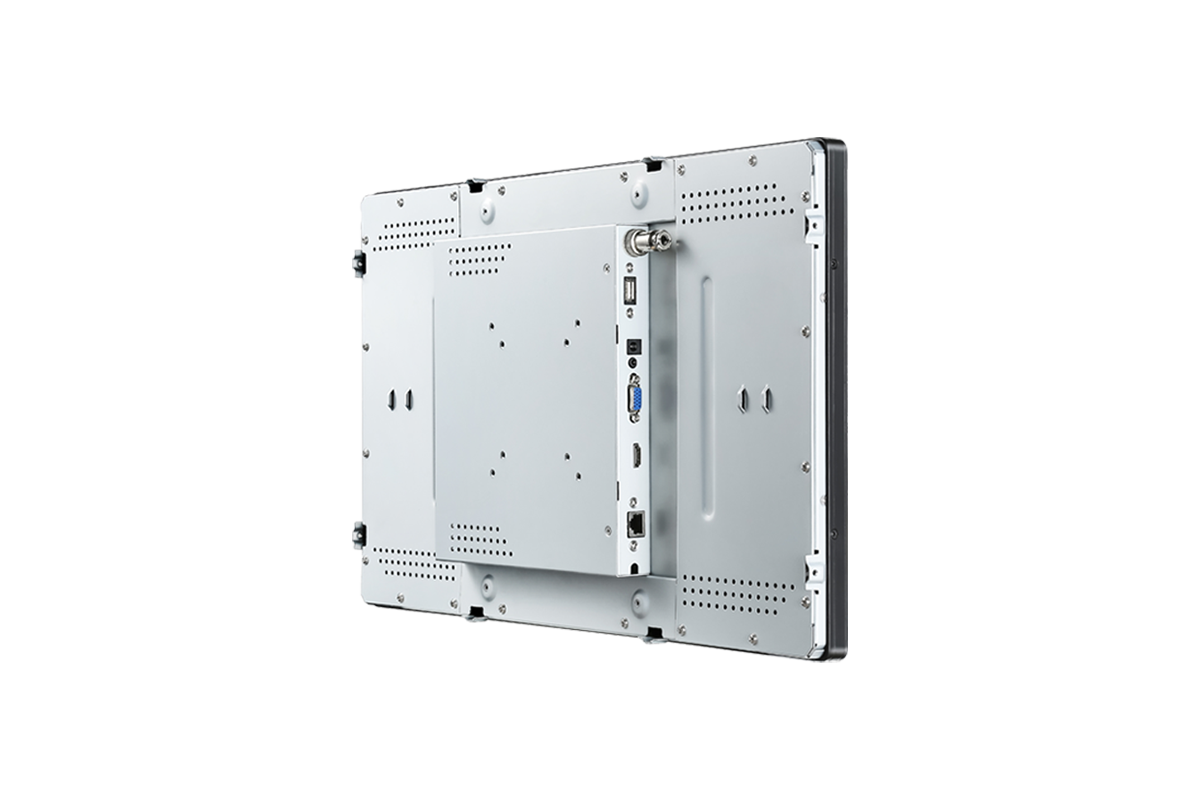

+ Multiple assembly holes on the side and back
+ Support OS: Windows/Android/Linux
+ 3-Years Warranty
Optional:
- No Touch
- Private Filter
- AG Coating
- Touch interface: RS232
- Video interface: Display Port
Specifications
Model
TDS2439C
Color
Black or Sliver
Diagonal
23.8"
Aspect Ratio
16:9
Active Area
527 X 296(mm)
Dimensions
569 X 341 X 49(mm)
Resolution
1920 X 1080@60Hz
Viewing Angle
Horizontal: 89°/89°
Vertical: 89°/89°
Number of Colors
16.7M
Brightness (typical)
LCD Panel: 250 nits
PCAP: 225 nits
Response Time
10ms
Contrast Ratio
3000:1
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
Input method
Finger, Capacitance pen(Standard)
Latex gloves touch (pre commissioning required)
Transmittance
≥90%
Surface hardness
7H(Mohs)
Touch Interface
USB2.0
Video Interface
VGA+HDMI
Speakers
TwoX2W internal speakers
Input Voltage
AC:100-240 VAC, 50/60 Hz
Sealability
Touchscreen sealed to bezel
Drop Test
1kg steel ball falls from 1.2m without breaking
Weight
(Unpackaged) 6.9KG
Shipping Dimensions
720 X 450 X 160(mm)
Temperature
Operating: 0°C to 40°C
Storage: -20°C to 60°C
Humidity
Operating: 20% to 70%;
Storage: 10% to 80%;
MTBF
30,000 hours demonstrated
Mounting Options
VESA:100X100(mm), 200X200(mm)
Base Adjustable Angle
0-90 degrees(Optional)
Power Supply
DC:12V3A
Warranty
3-years
Agency Approvals
FCC, CE, ROHS
Support OS
Windows, Linux, Android
What's in the Box
1*USB cable,1*HDMI cable,1*DC cable, 1*RJ45 OSD Remote
Accessories
Enhancements, expansions, and extras.
Resources
- 2439C Specification & Drawing
