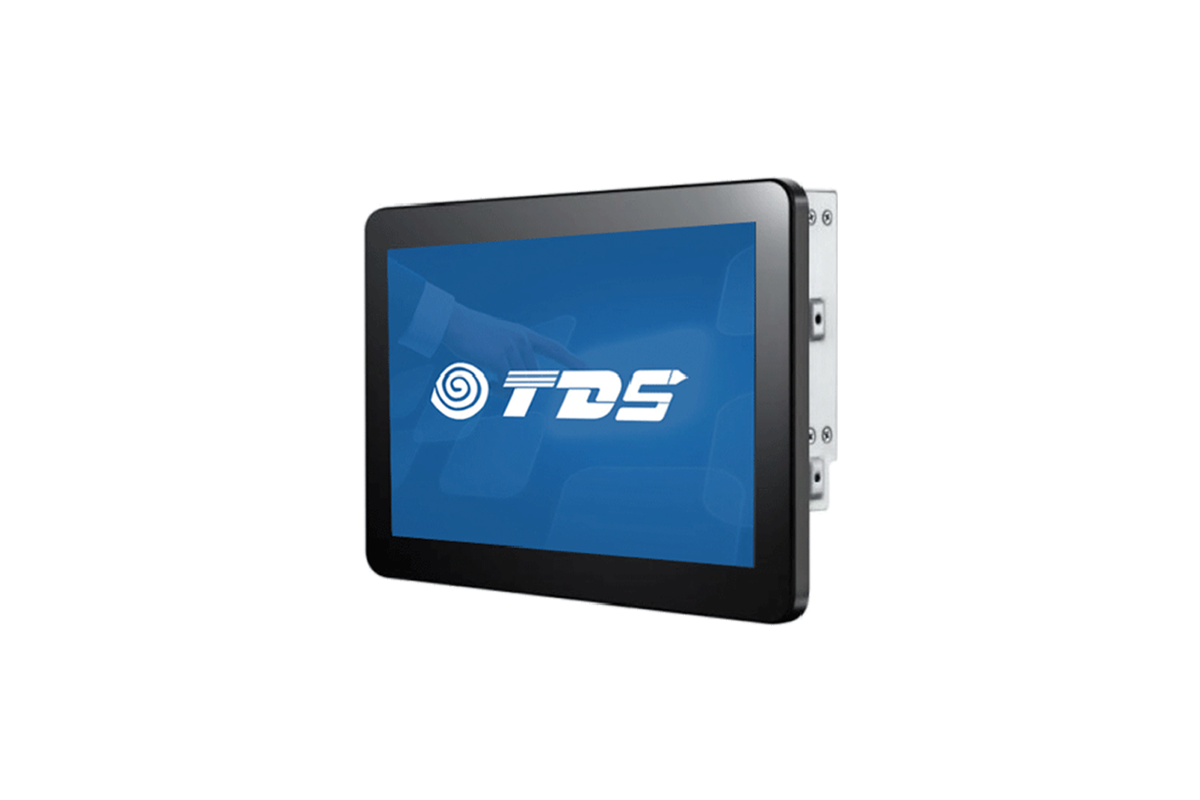

1039C 10.1" Openframe Touchscreen Monitor(16:10)
self service, Gaming, Industrial automation, Healthcare, Kiosks, Interactive signage
Features
+ Metal shell, open frame design
+ Flat and zero bezel appearance
+ Commercial grade LCD, LED backlight
+ Resolution 1280X800@60Hz
+ Widescreen full viewing Angle
+ Supports vertical and horizontal
+ 10-point projection capacitive touchscreen
+ Cover plate anti riot and anti fingerprint

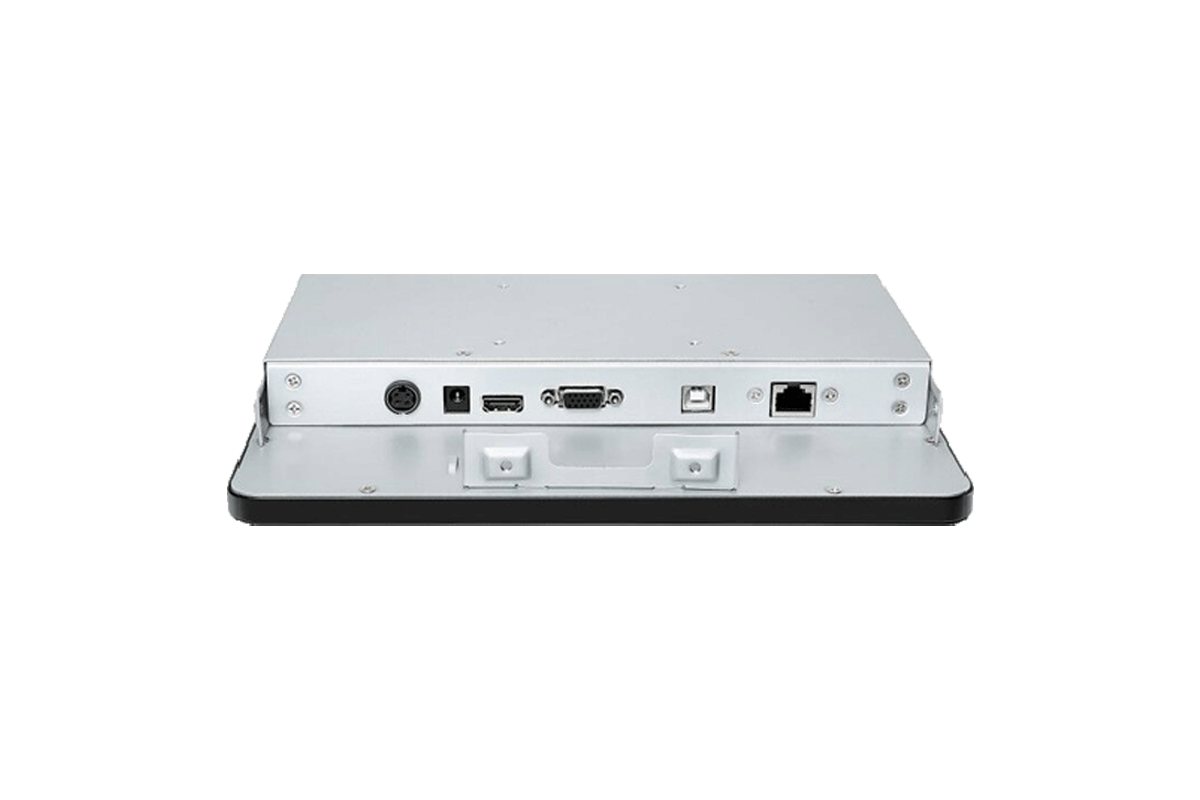

+ Video interface: HDMI+VGA

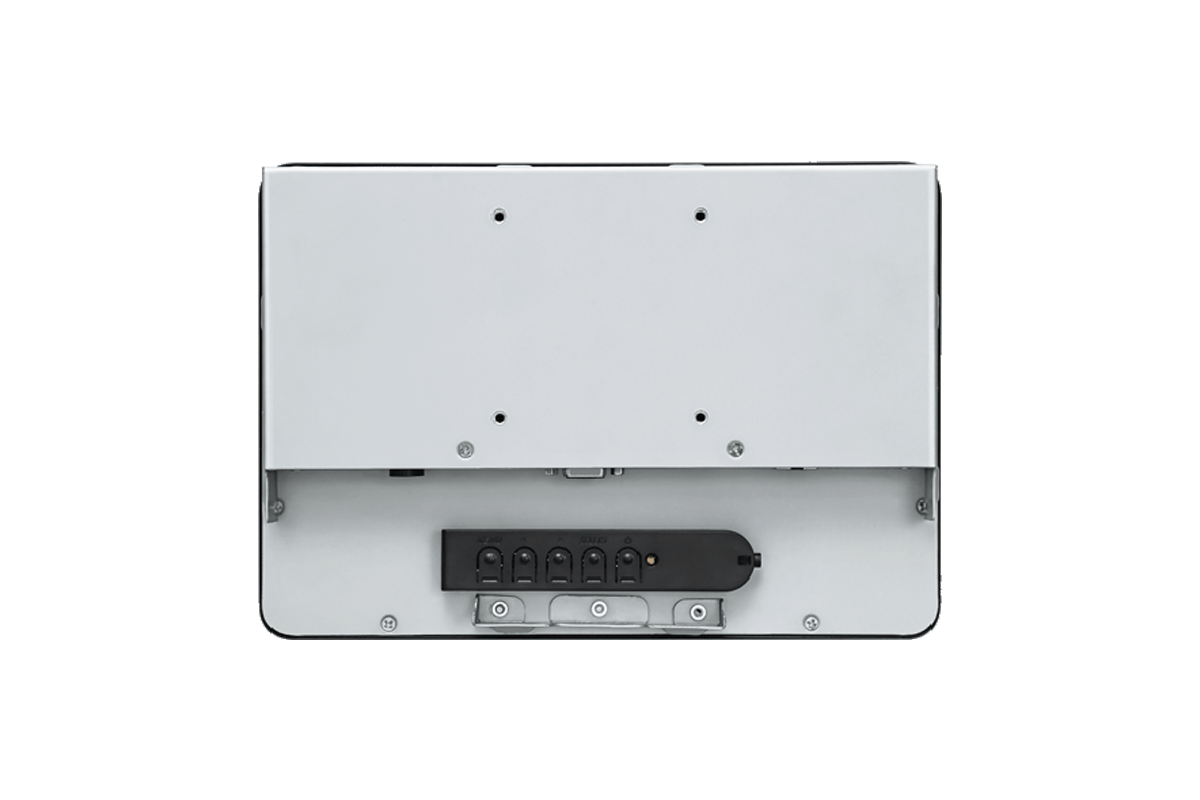

+ Multiple assembly holes on the side and back
+ Support OS: Windows/Android/Linux
+ 2-years Warranty
Optional:
- No Touch
- Private Filter
- AG Coating
- Touch interface: RS232
- Video interface: Display Port
Specifications
Model
TDS1039C
Color
Black or Silver
Diagonal
10.1"
Aspect Ratio
16:10
Active Area
216 X 135(mm)
Dimensions
258 X 180 X 37(mm)
Resolution
1280 X 800@60Hz
Viewing Angle
Horizontal: 85°/85°
Vertical: 85°/85°
Number of Colors
16.7M
Brightness (typical)
LCD Panel: 300 nits
PCAP: 275 nits
Response Time
25ms
Contrast Ratio
800:1
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
Input method
Finger, Capacitance pen(Standard)
Latex gloves touch (pre commissioning required)
Transmittance
≥90%
Surface hardness
7H(Mohs)
Touch Interface
USB2.0
Video Interface
VGA+HDMI
Speakers
TwoX2W internal speakers
Input Voltage
AC:100-240 VAC, 50/60 Hz
Sealability
Touchscreen sealed to bezel
Drop Test
1kg steel ball falls from 1.2m without breaking
Weight
(Unpackaged) 1.5KG
Shipping Dimensions
350 X 140 X 20(mm)
Temperature
Operating: 0°C to 40°C
Storage: -20°C to 60°C
Humidity
Operating: 20% to 70%;
Storage: 10% to 80%;
MTBF
30,000 hours demonstrated
Mounting Options
VESA:75X75(mm)
Base Adjustable Angle
0-90 degrees(Optional)
Power Supply
DC:12V3A
Warranty
2-years
Agency Approvals
FCC, CE, ROHS
Support OS
Windows, Linux, Android
What's in the Box
1*USB cable,1*HDMI cable,1*DC cable
