Reliable touch solutions for industrial panels, self-service kiosks, financial machines, and transport terminals.
Features
+ Ultra narrow edge compact open frame design
+ Front frame against dust and liquids
+ Resolution 1280 X1024@60Hz
+ Industrial grade LCD, LED backlight
+ High contrast and high brightness
+ 10-point projection capacitive touchscreen
+ Cover plate anti riot and anti fingerprint
+ Supports palm rejection and glove touch
+ 5-wire resistance touchscreen optional
+ Video interface: VGA+HDMI
+ Multiple assembly holes on the side and back
+ Support OS: Windows, Android, Linux
Optional
- No Touch
- Private Filter
- AG Coating
- Touch interface:RS232
- Video interface: Display Port
Specifications
Model
TDS1939
Color
Black or Silver
Diagonal
19"
Aspect Ratio
5:4
Active Area
376 x 301(mm)
Dimensions
415 X 343 X 54(mm)
Resolution
1280 X 1024@60Hz
Viewing Angle
Horizontal: 89°/89°
Vertical: 89°/89°
Number of Colors
16.7M
Brightness (typical)
LCD Panel: 350 nits
PCAP: 325 nits
Response Time
5ms
Contrast Ratio
1000:1
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
5-wire Resistive-Single Touch(Optional)
Input method
Finger, Capacitance pen(Standard)
Latex gloves touch (Thickness≤2mm)
Transmittance
≥90%
Surface hardness
7H(Mohs)
Touch Interface
USB2.0
Video Interface
VGA+HDMI
Input Voltage
AC:100-240 VAC, 50/60 Hz
Sealability
Touchscreen sealed to bezel
Drop Test
450g steel ball falls from 1.2m without breaking
Weight
(Unpackaged) 5KG
Shipping Dimensions
570 x 400 x 145(mm)
Temperature
Operating: 0°C to 40°C
Storage: -20°C to 60°C
Humidity
Operating: 20% to 70%;
Storage: 10% to 80%;
MTBF
50,000 hours demonstrated

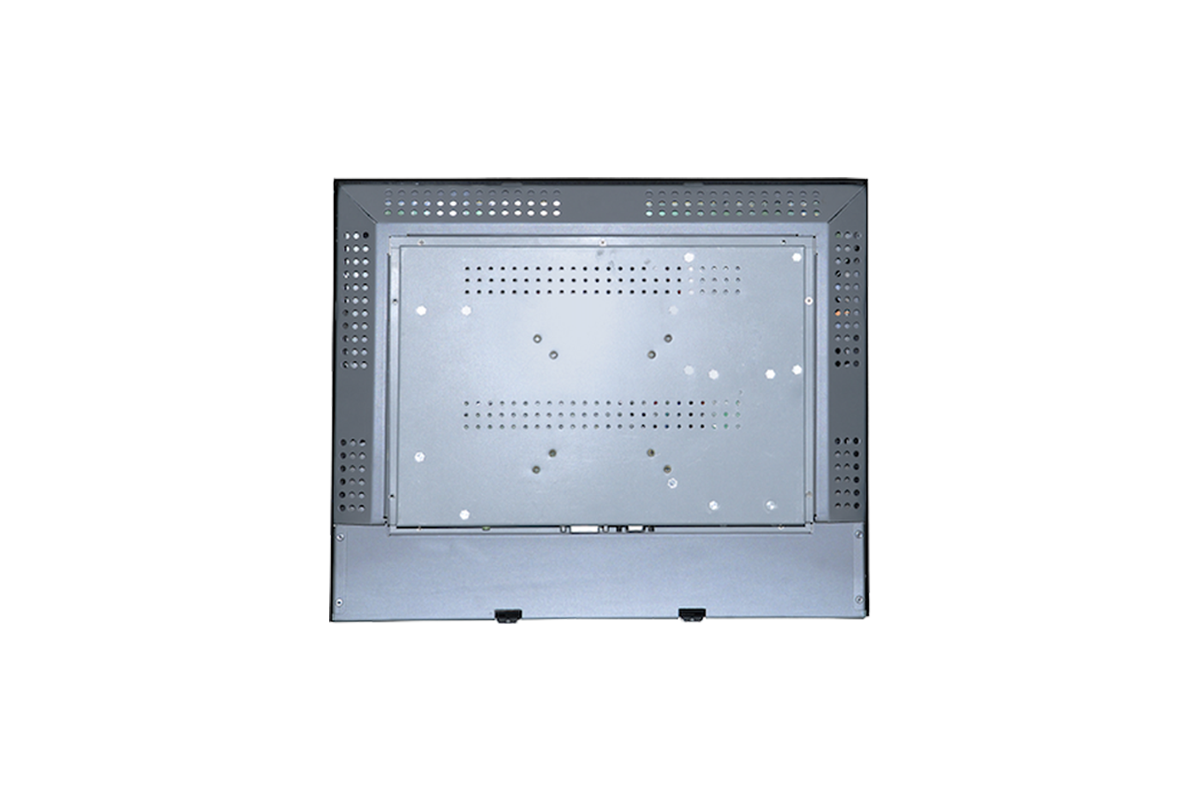

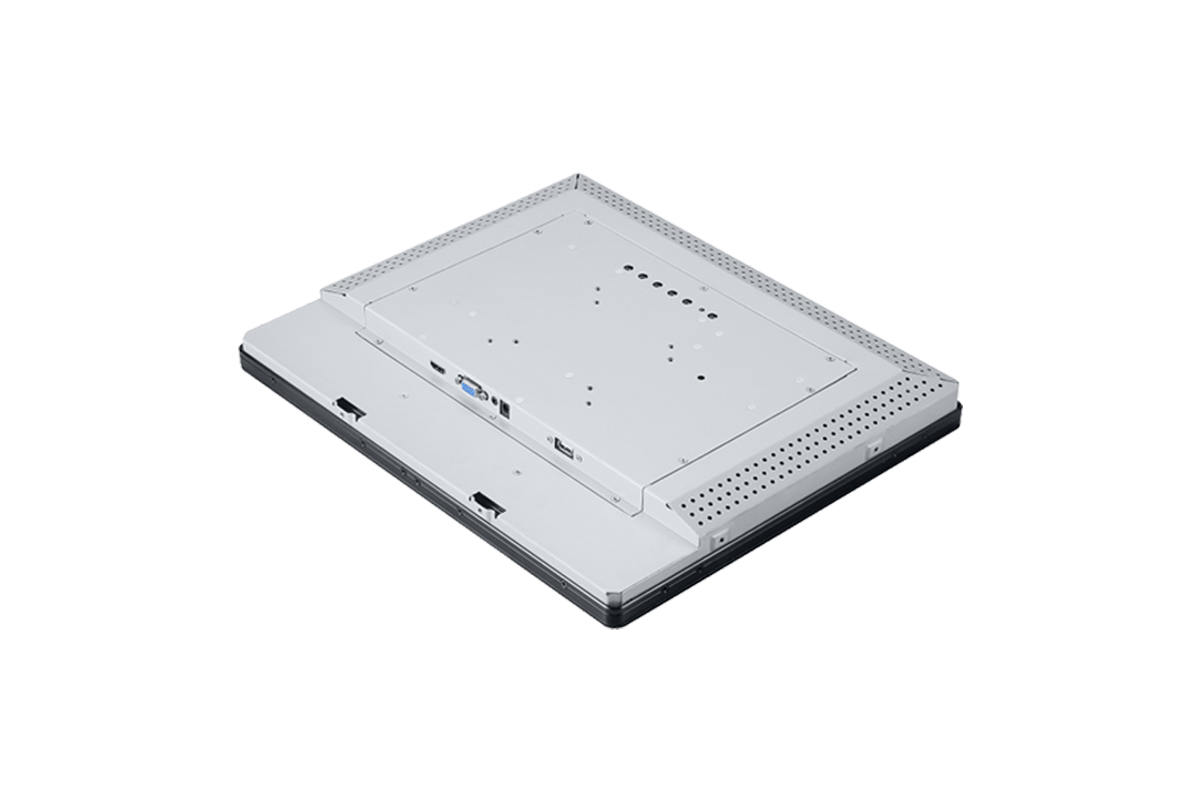

Mounting Options
Back VESA two groups of holes: 75mm & 100mm
Four sides has set of fixing holes: 142mm
Power Supply
DC:12V3A
Warranty
3-year
Agency Approvals
FCC, CE, ROHS
Support OS
Windows, Linux, Android
What's in the Box
1*USB cable, 1*VGA cable, 1*DC cable(Standard)
L” (Side Mount)Brackets and w/Screws(Options)
