Reliable touch solutions for industrial panels, self-service kiosks, financial machines, and transport terminals.
Features

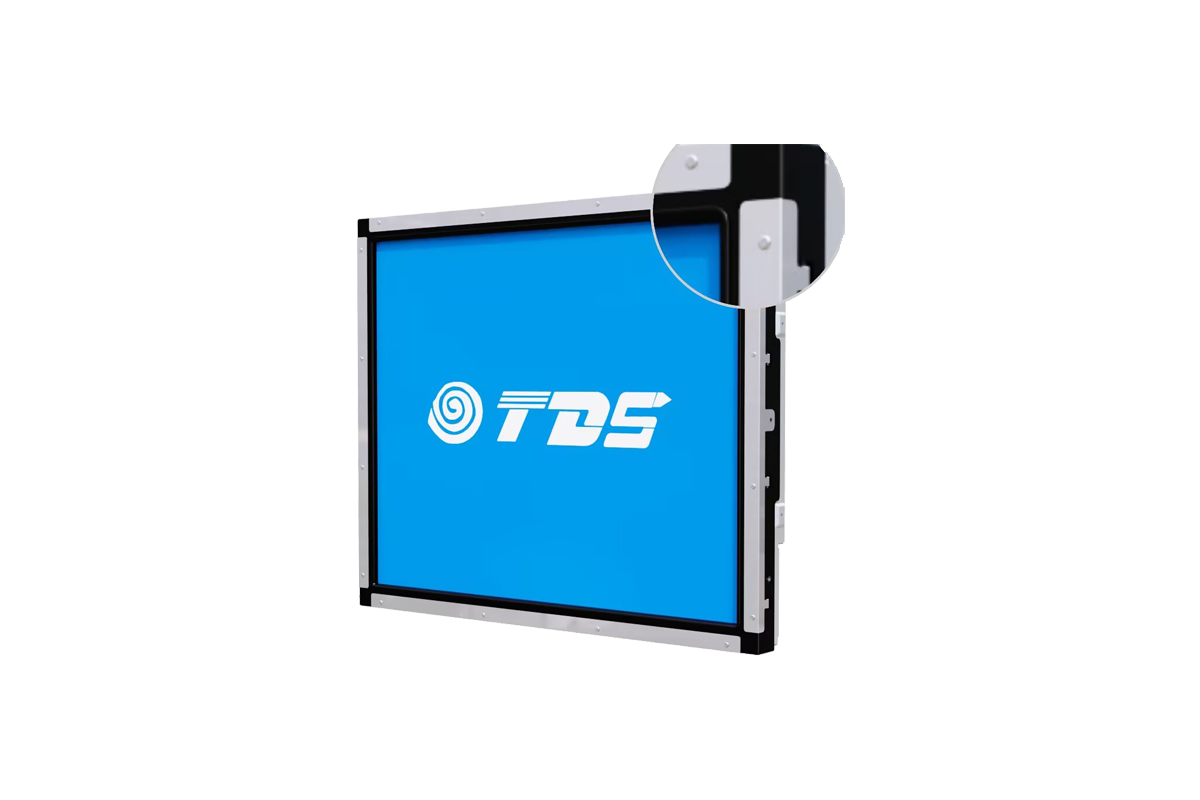

+ Ultra narrow edge compact open frame design
+ Front frame against dust and liquids
+ Industrial grade LCD, LED backlight
+ Resolution 1024X768@ 60Hz
+ High contrast and high brightness
+ 10-point projection capacitive touchscreen
+ Cover plate anti riot and anti fingerprint
+ Video interface: VGA+HDMI
+ Resistance, infrared touch technology optional

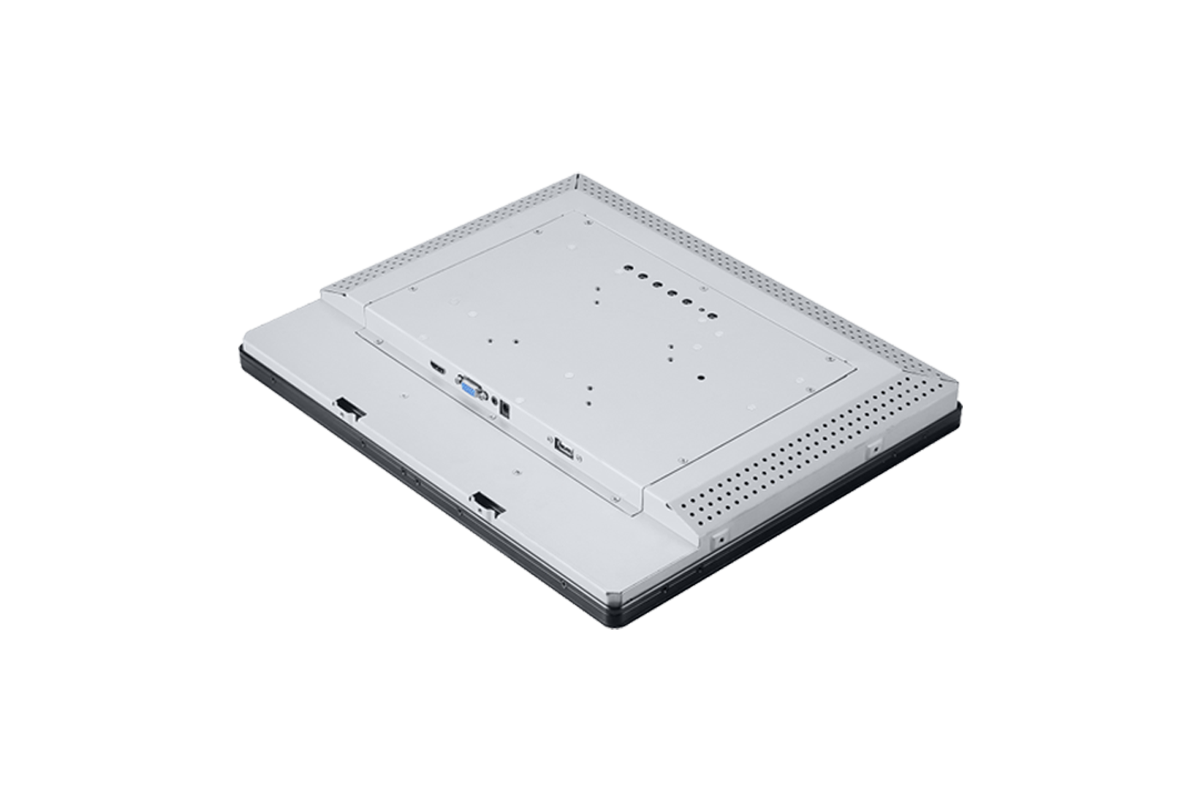

+ Multiple assembly holes on the side and back
+ Support OS: Windows, Android, Linux
Optional
- No Touch
- Private Filter
- AG Coating
- Touch interface:RS232
- Video interface: Display Port
Specifications
Model
TDS1539
Color
Black or Silver
Diagonal
15"
Aspect Ratio
4:3
Active Area
304 x 228(mm)
Dimensions
346 x 270 x 42(mm)
Resolution
1024 X 768@60Hz
Viewing Angle
Horizontal: 85°/85°
Vertical: 85°/85°
Number of Colors
16.2M
Brightness (typical)
LCD Panel: 350 nits
PCAP: 325 nits
Response Time
25ms
Contrast Ratio
1000:1
Touch Technology
PCAP(Projective capacitive)-10 Touch
5-wire Resistance - Single Touch(optional)
Infrared touchscreen -2 points(optional)
Input method
Finger, Capacitance pen(Standard)
Latex gloves touch (Thickness≤2mm)
Transmittance
≥90%
Surface hardness
7H(Mohs)
Touch Interface
USB2.0
Video Interface
VGA+HDMI
Input Voltage
AC:100-240 VAC, 50/60 Hz
Sealability
Touchscreen sealed to bezel
Drop Test
450g steel ball falls from 1.2m without breaking
Weight
(Unpackaged) 2.7KG
Shipping Dimensions
455 x 340 x 135(mm)
Temperature
Operating: 0°C to 40°C
Storage: -20°C to 60°C
Humidity
Operating: 20% to 70%;
Storage: 10% to 80%;
MTBF
50,000 hours demonstrated
Mounting Options

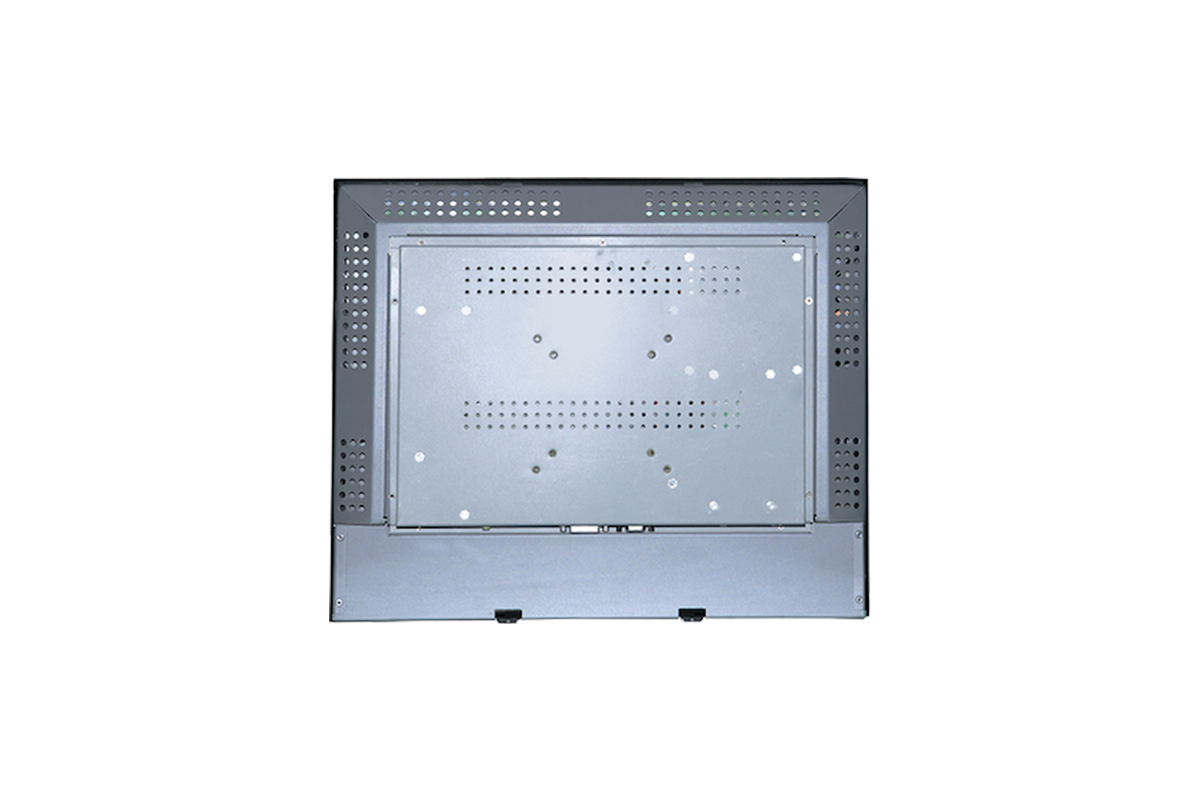

Back VESA two groups of holes: 75mm & 100mm
Four sides has set of fixing holes: 142mm
Power Supply
DC:12V3A
Warranty
3-year
Agency Approvals
FCC, CE, ROHS
Support OS
Windows, Linux, Android
What's in the Box
1*USB cable, 1*VGA cable, 1*DC cable(Standard)
L”(Side Mount)Brackets and w/Screws(Options)
