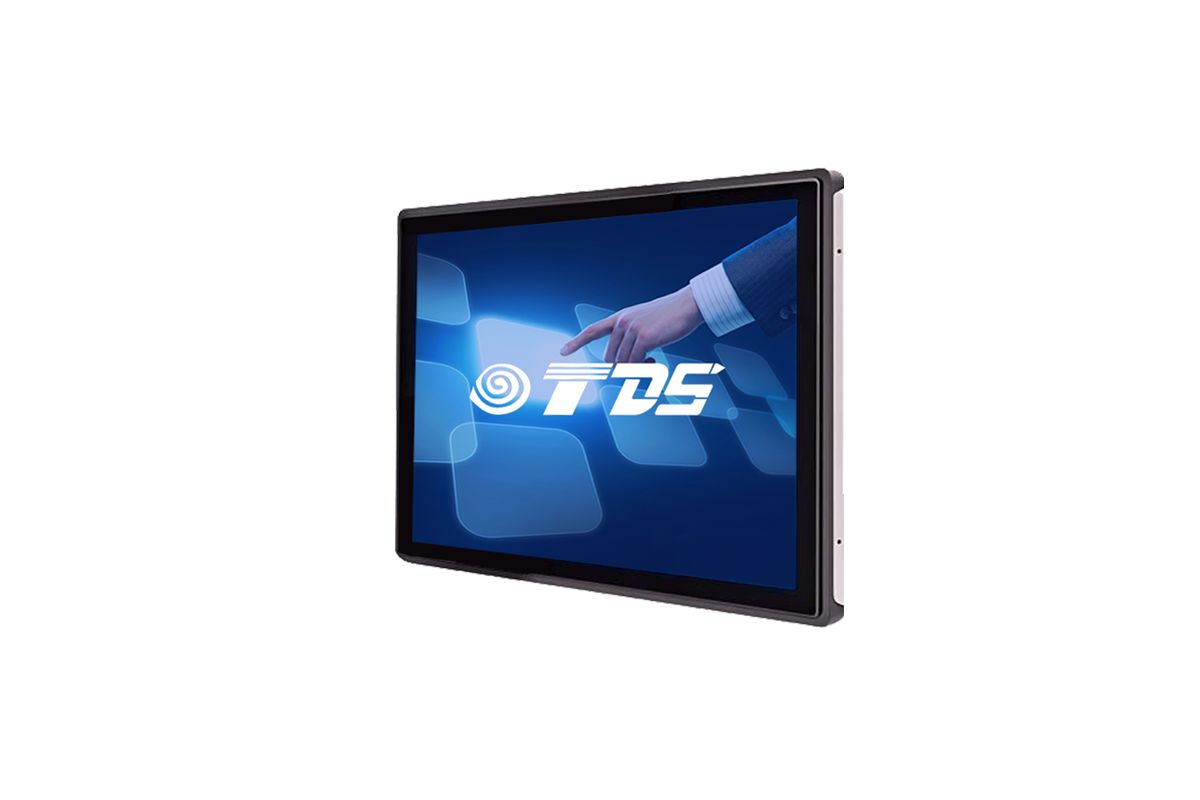

1938C 18.5" Openframe Touchscreen Monitor(16:9)
Self-service terminals, industrial automation, financial self-service equipment, self-service book equipment.
Features
+ Metal shell, open frame structure

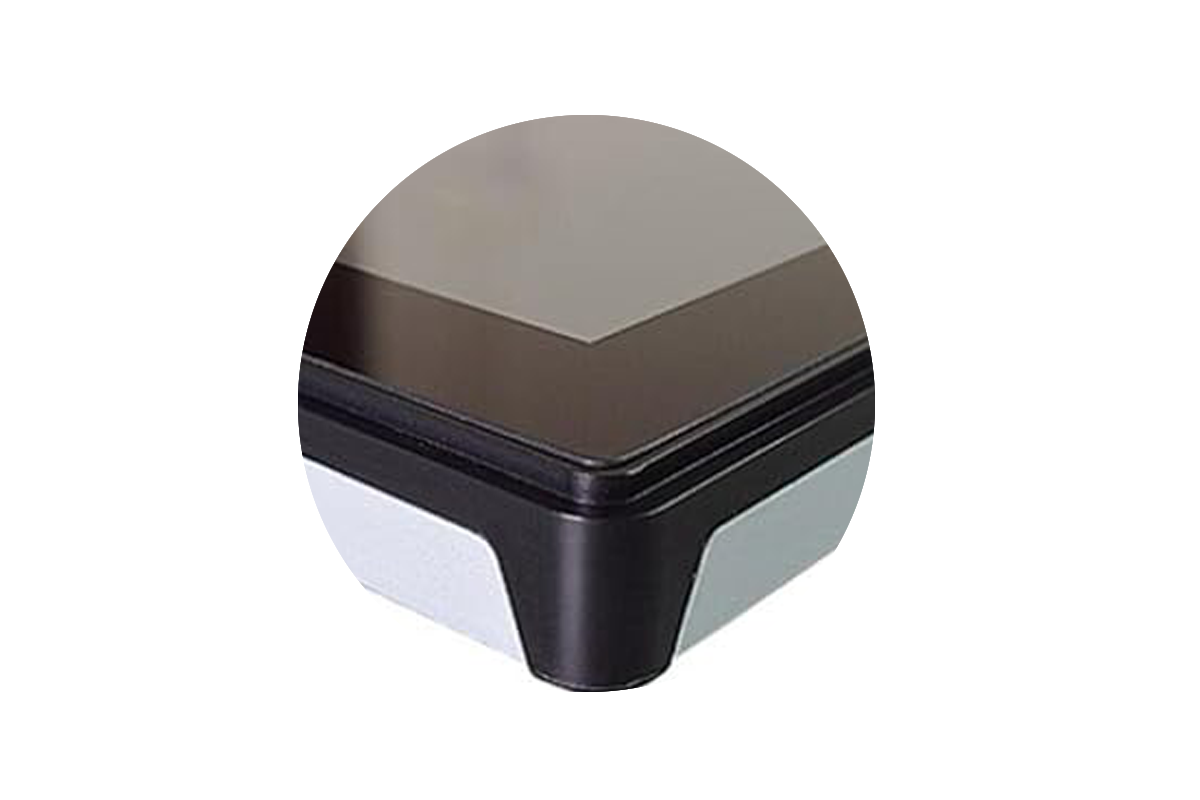

+ Flat frame-less appearance
+ The step frame is easy to assemble
+ Commercial grade LCD, LED backlight
+ Resolution 1366X768@60Hz
+ Widescreen full viewing Angle
+ 10 point projection capacitive touchscreen
+ Cover plate anti riot and anti fingerprint
+ Video interface: HDMI+VGA

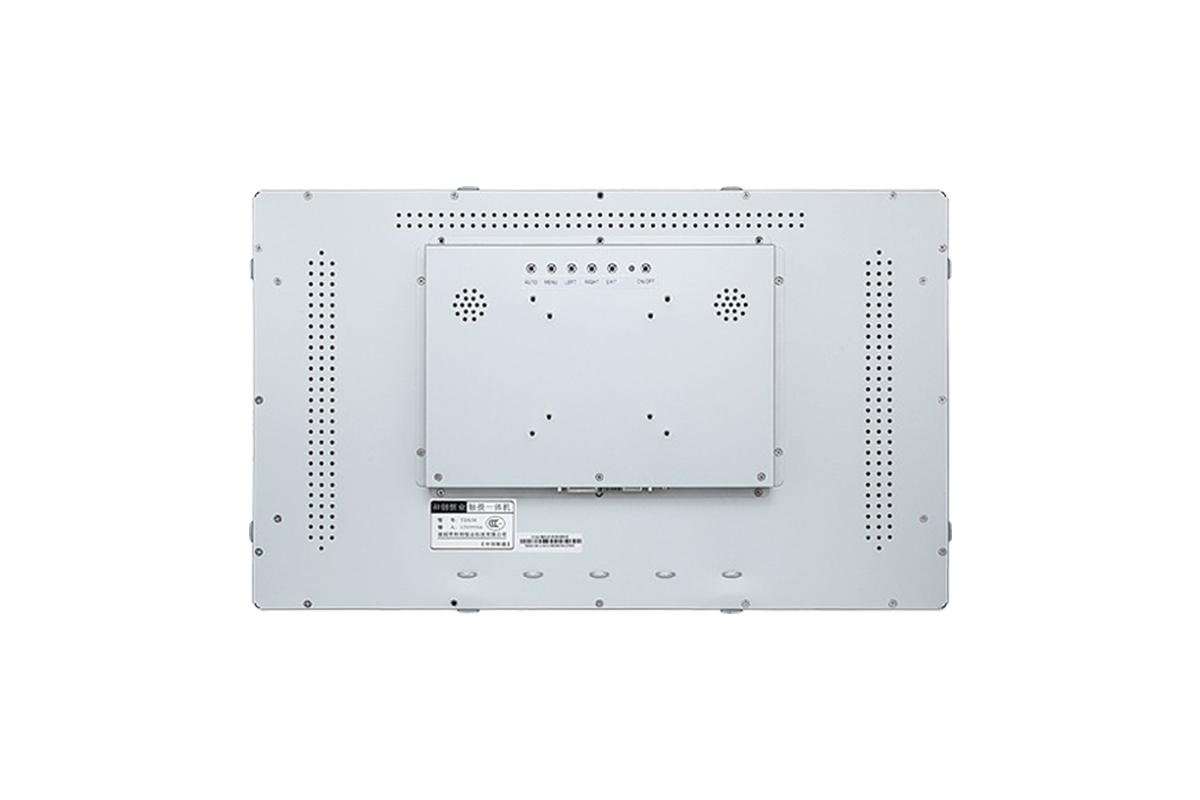

+ Multiple assembly holes on the side and back
+ Support OS: Windows/Android/Linux
+ 3-Years warranty
Optional:
- No Touch
- Privacy Filter
- AG Coating
- Resolution:2K
- Video interface: Display Port
Specifications
Model
TDS1938C
Color
Black or Silver
Diagonal
18.5"
Aspect Ratio
16:9
Active Area
410 x 230(mm)
Dimensions
460 X 288 X 52(mm)
Resolution
1366 X 768DPI@60Hz
Viewing Angle
Horizontal: 85°/85°
Vertical: 80°/80°
Number of Colors
16.7M
Brightness (typical)
LCD Panel: 250 nits
PCAP: 235 nits
Response Time
5ms
Contrast Ratio
1000:1
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
Input method
Finger, Capacitance pen(Standard)
Latex gloves touch (pre commissioning required)
Transmittance
≥90%
Surface hardness
7H(Mohs)
Touch Interface
USB2.0
Video Interface
VGA+HDMI
Speakers
TwoX2W internal speakers
Input Voltage
AC:100-240 VAC, 50/60 Hz
Sealability
Touchscreen sealed to bezel
Drop Test
1kg steel ball falls from 1.2m without breaking
Weight
(Unpackaged) 4.5KG
Shipping Dimensions
570 X 400 X 145(mm)
Temperature
Operating: 0°C to 40°C
Storage: -20°C to 60°C
Humidity
Operating: 20% to 70%;
Storage: 10% to 80%;
MTBF
30,000 hours demonstrated
Mounting Options
VESA:75X75(mm), 100X100(mm)
Base Adjustable Angle
0-90 degrees(Optional)
Power Supply
DC:12V3A
Warranty
3-years
Agency Approvals
FCC, CE, ROHS
Support OS
Windows, Linux, Android
What's in the Box
1*USB cable,1*VGA cable,1*DC cable
