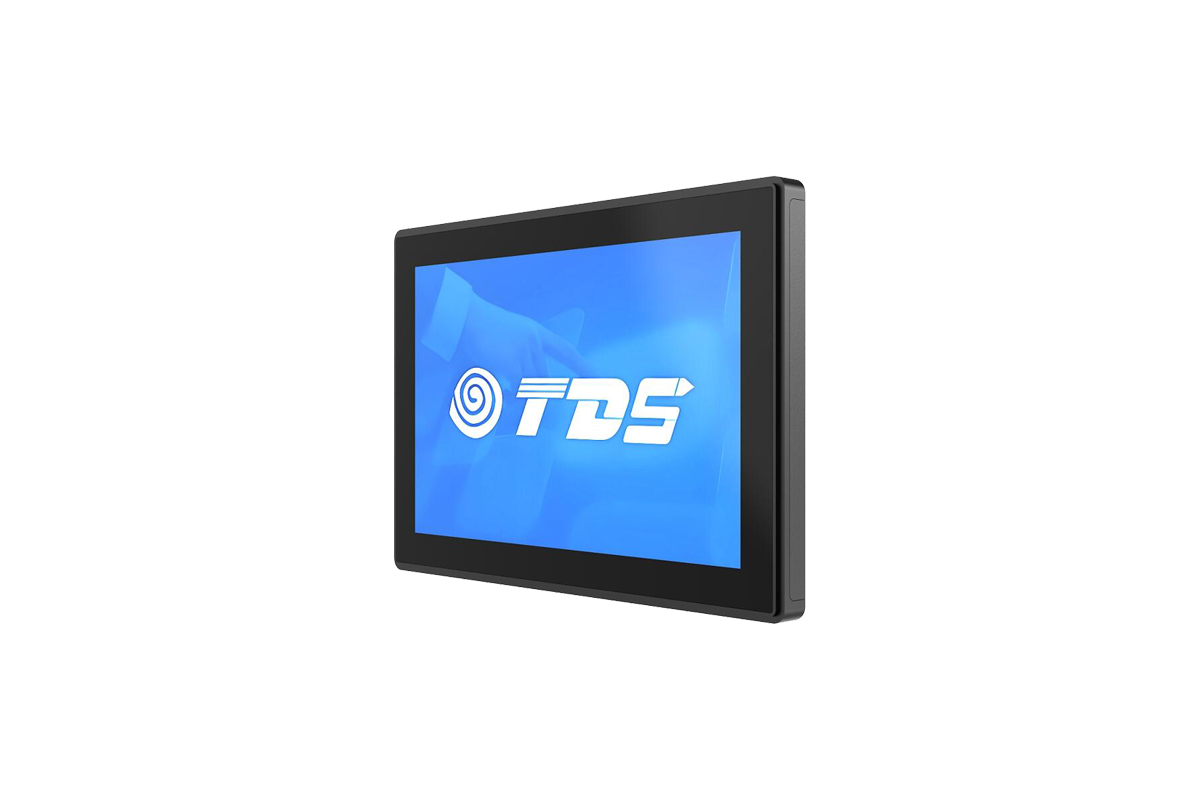

1038C 10.1" Openframe Touchscreen Monitor(16:10)
Self-service terminals, industrial automation, financial self-service equipment, self-service book equipment.
Features
+ Metal shell, open frame structure

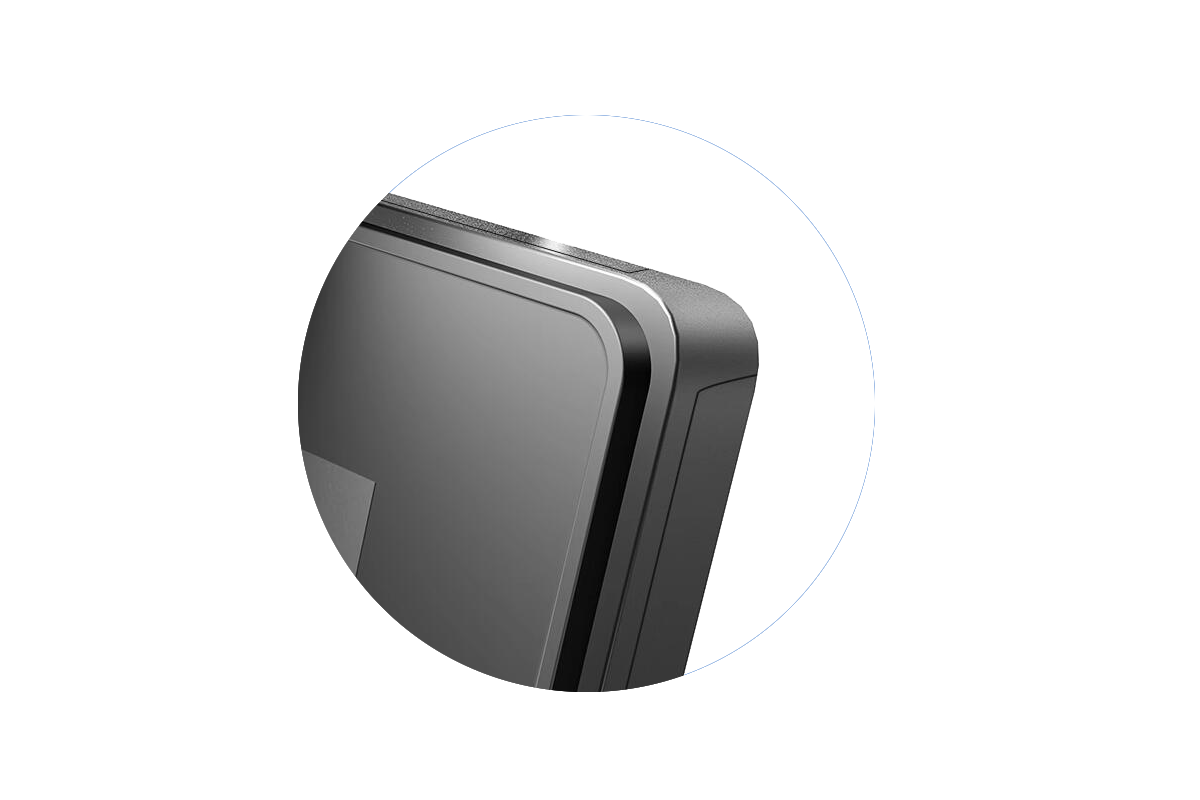

+ Stepped edge of front frame, easy to integrate
+ Bezels and touch screen sealed and waterproof
+ Commercial grade LCD, LED backlight
+ Resolution 1280X800@60Hz
+ Widescreen ratio full viewing angle display
+ 10-point projection capacitive touchscreen
+ Cover plate anti riot and anti fingerprint
+ Reliable Industrial Grade Components

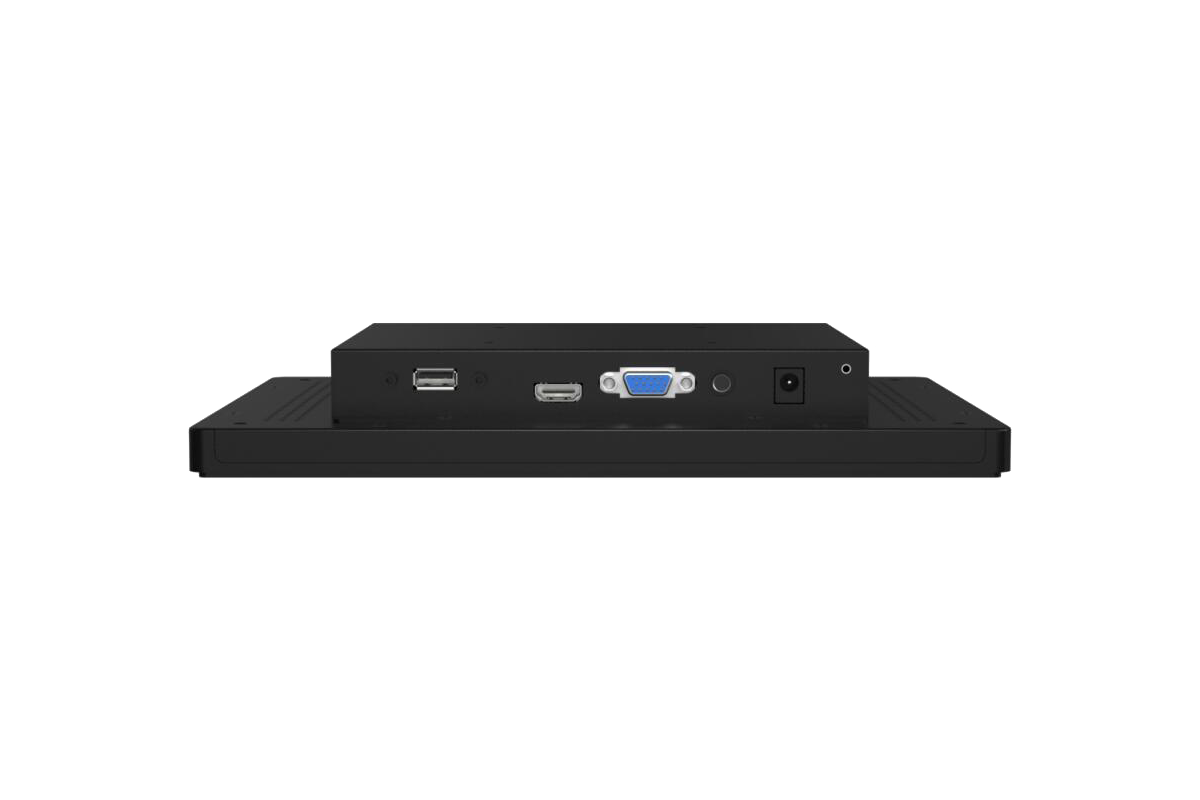

+ Video interface: HDMI+VGA

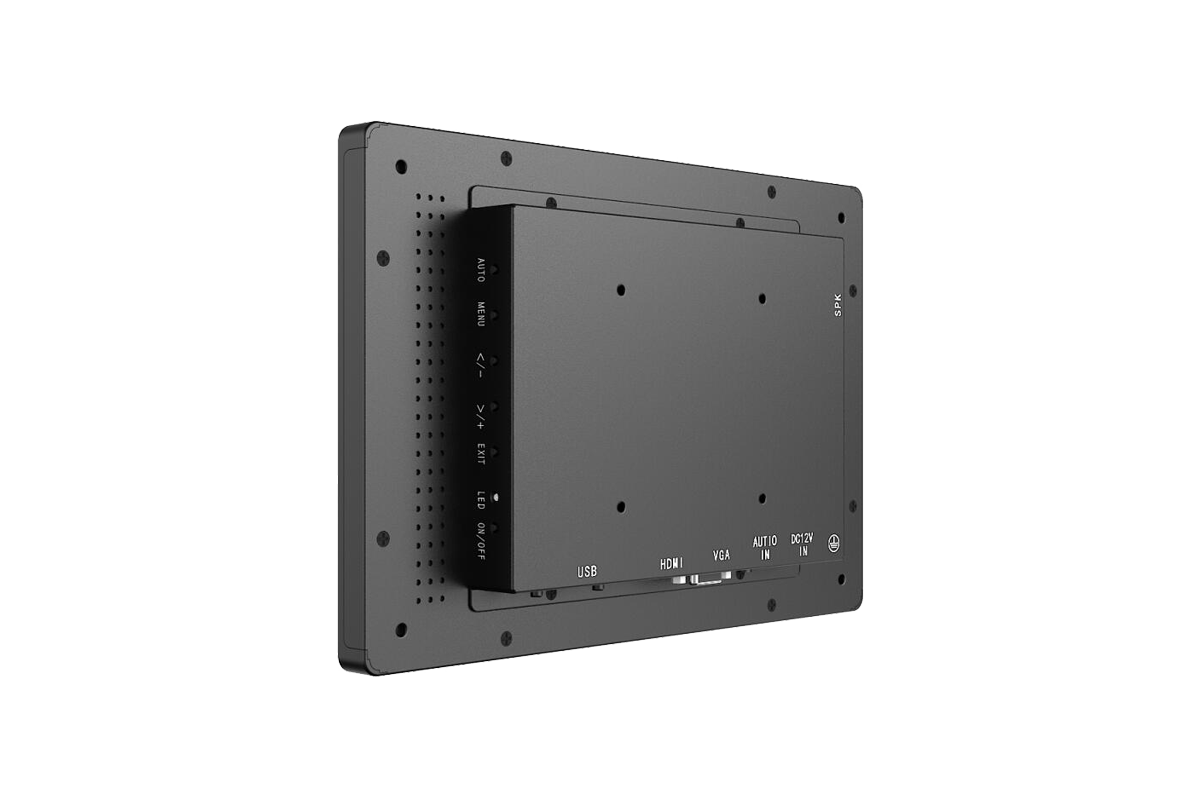

+ Multiple assembly holes on the side and back
+ Support OS: Windows/Android/Linux
+ 2-Year warranty
Optional:
- No Touch
- Privacy Filter
- AG Coating
- Resolution:2K
- Video interface: Display Port
Specifications
Model
1038C
Color
Black
Diagonal
10.1”
Aspect Ratio
16:10
Active Area
216.96×135.6 (mm)
Dimensions
260×178×38 (mm)
Resolution
1280×800@60Hz
Viewing Angle
Horizontal: 85°/85°, Vertical: 85°/85°
Number of Colors
16.7M
Brightness (typical)
LCD panel: 400nits; PCAP: 350nits
Response Time
25ms
Contrast Ratio
800:1
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
Input Method
Finger, Capacitance pen (Standard), Latex gloves touch (pre-commissioning required)
Transmittance
≥90%
Surface Hardness
7H (Mohs)
Touch Interface
USB 2.0
Video Interface
VGA+HDMI
Input Voltage
AC: 100-240 VAC, 50/60 Hz
Scalability
Touchscreen sealed to bezel
Drop Test
450g steel ball falls from 1.0m without breaking
Weight (net.)
1.5KG
Shipping Dimensions
350×140×200 (mm)
Operating Temperature
0°C to 40°C
Storage Temperature
-20°C to 60°C
Humidity
Operating: 20% to 70%; Storage: 10% to 80%
Mounting Options
VESA: 75mm×75mm; Fixing holes: 102mm (four sides)
MTBF
30,000 hours demonstrated
Power Supply
DC: 12V3A
Warranty
2-year
Agency Approvals
FCC, CE, ROHS
Support OS
Windows/Linux/Android
Accessories
Enhancements, expansions, and extras.
Resources
- 1038C Specification & Drawing
- VIEW
