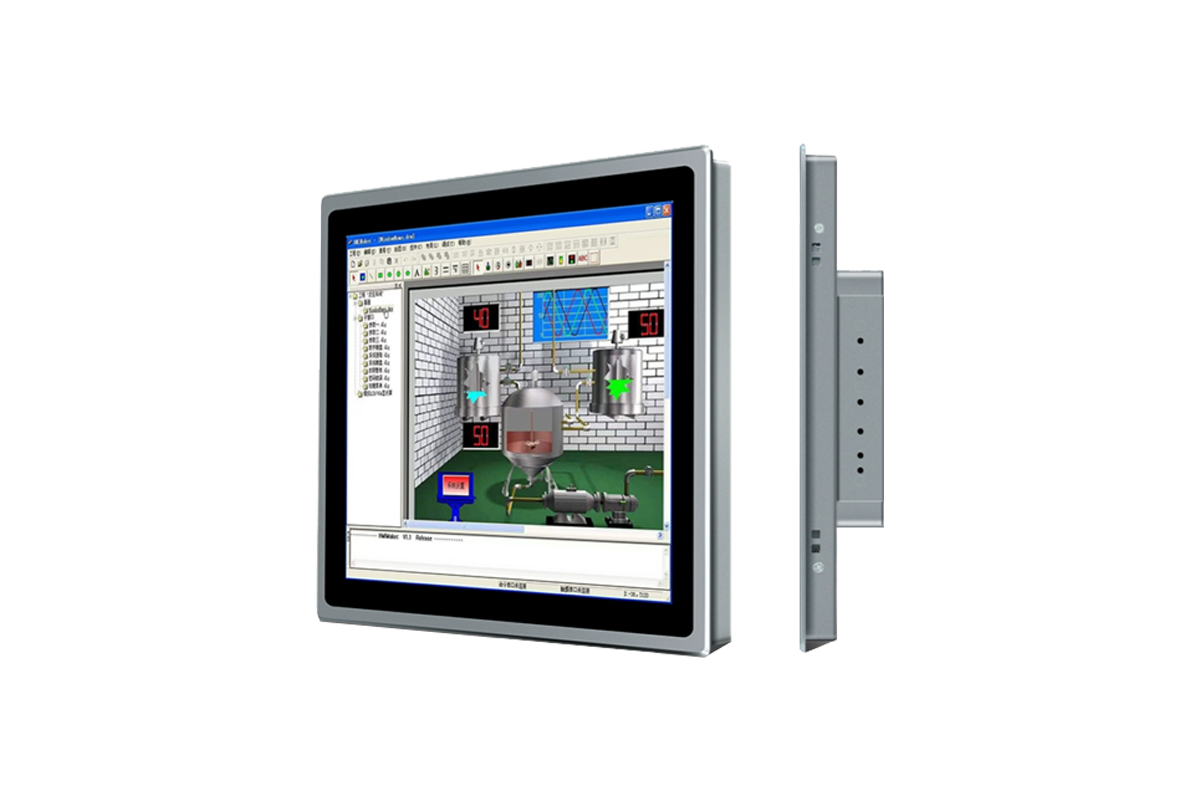

1737B 17" Embedded Standard Aspect Touchscreen Monitor
Features
+ Aluminum flat all aluminum front frame
+ Front assembly method, easy to integrate
+ Industrial grade LCD, LED backlight
+ Native resolution 1280X1024@60Hz
+ High contrast, high brightness, full color
+ 10-point projected capacitive touchscreen
+ 3MM tempered glass, surface AG coating
+ USB touch interface, driver-free plug and play
+ Ultra-Fast response speed and high precision
+ Anti-riot, anti-vibration, anti-static

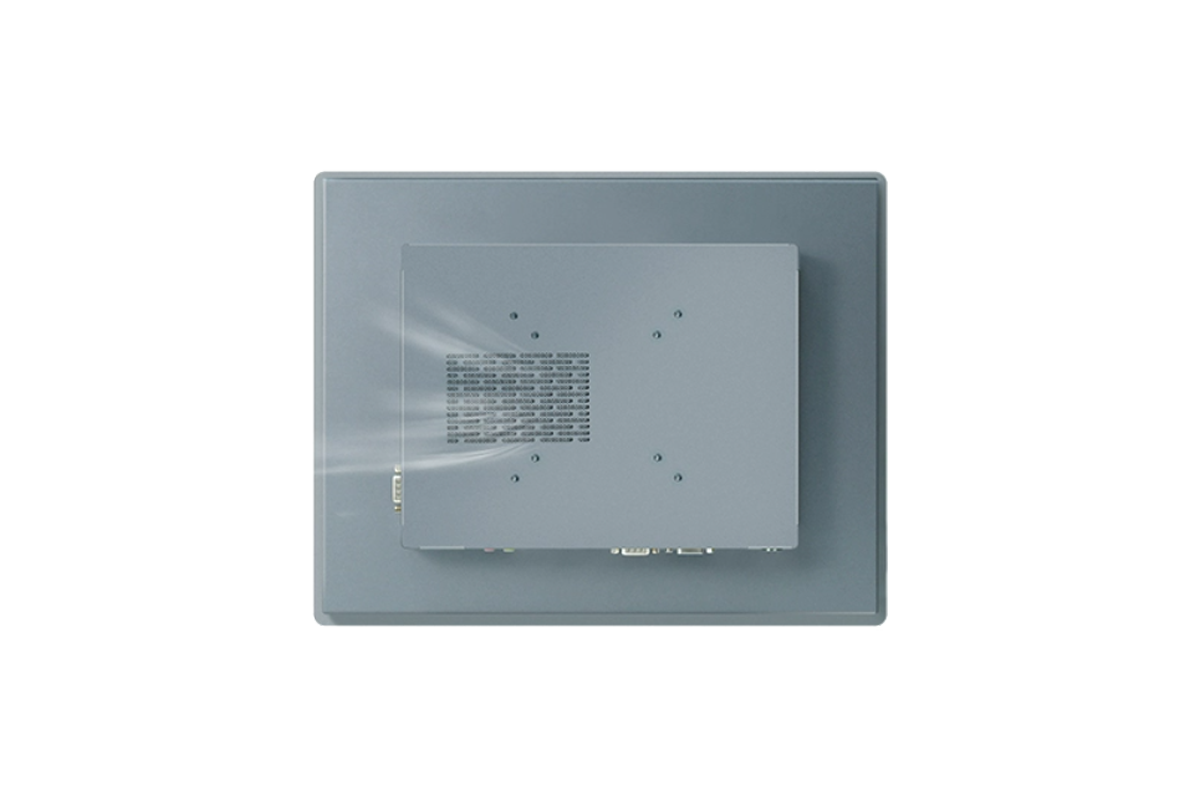

+ There are fixing holes on the back and sides

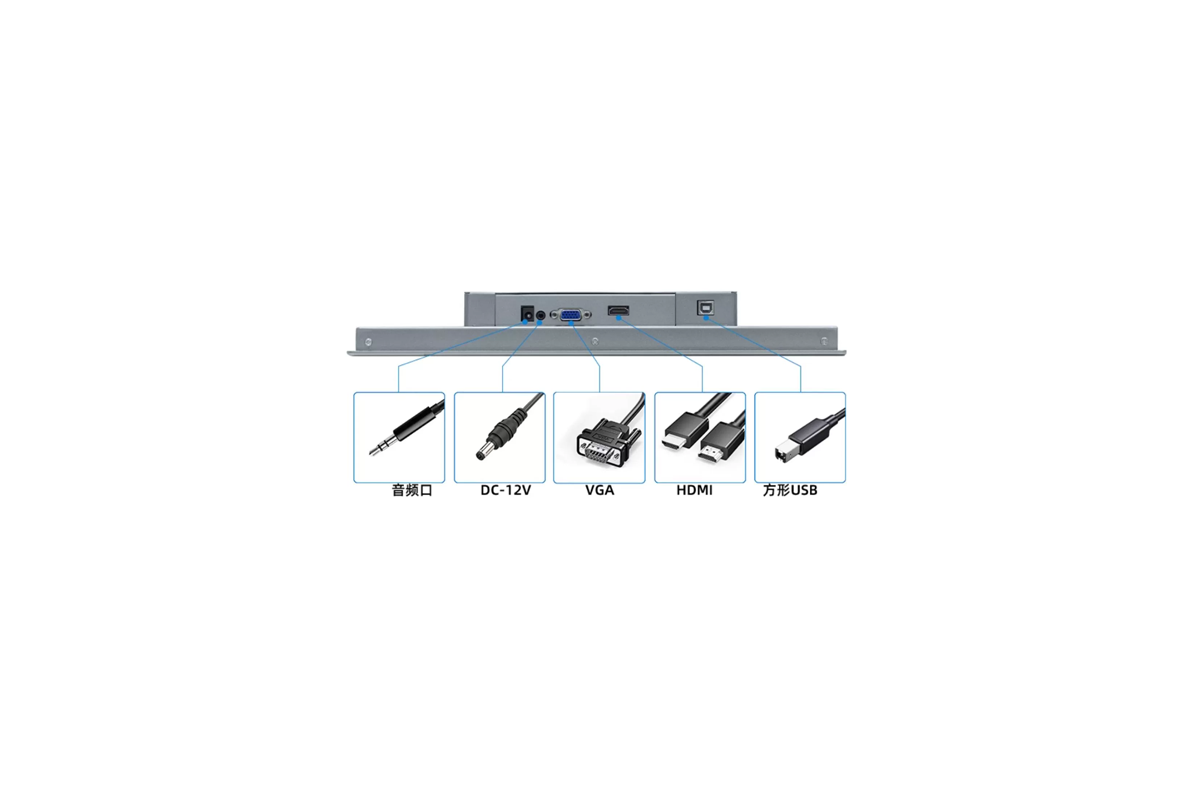

+ Video interface: HDMI+VGA
+ Support OS: Windows/Android/Linux
+ 2-Year warranty
Optional：
- No touch
- Five-wire resistive touchscreen(5W)
- ALL-IN-ONE(X86 motherboard)
Specifications
Model
TDS1737B
Color
Silver
Diagonal
17"
Aspect Ratio
5:4
Active Area
338 x 271(mm)
Dimensions
389 X 333 X 50(mm)
Resolution
1280 X 1024@60Hz
Viewing Angle
Horizontal: 80u00b0/80u00b0
Vertical: 70u00b0 /70u00b0
Number of Colors
16.7M
Brightness (typical)
LCD Panel: 330 nits
PCAP: 285 nits
Response Time
8ms
Contrast Ratio
1000:1
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
Input method
Finger, Capacitance pen(Standard)
Latex gloves touch (pre commissioning required)
Transmittance
u226590%
Surface hardness
6H(Mohs)
Touch Interface
USB2.0
Video Interface
VGA+HDMI
Speakers
TwoX2W internal speakers
Input Voltage
AC:100-240 VAC, 50/60 Hz
Sealability
Touchscreen sealed to bezel
Drop Test
450g steel ball falls from 1m without breaking
Weight
(Unpackaged) 5KG
Operating Temperature
0u00b0C to 40u00b0C
Storage Temperature
-20u00b0C to 60u00b0C
Humidity
Operating: 20% to 80%;
Storage: 10% to 90%;
MTBF
50,000 hours demonstrated
Mounting Options
VESA:75X75(mm)
100X100(mm)
Base Adjustable Angle
0-90 degrees(Optional)
Power Supply
DC:12V3A
Warranty
2-years
Agency Approvals
FCC, CE, ROHS
Support OS
Windows, Linux, Android
What's in the Box
1*USB cable,1*HDMI cable,1*DC cable
Accessories
Enhancements, expansions, and extras.
Resources
- 1737B Specification & Drawing
