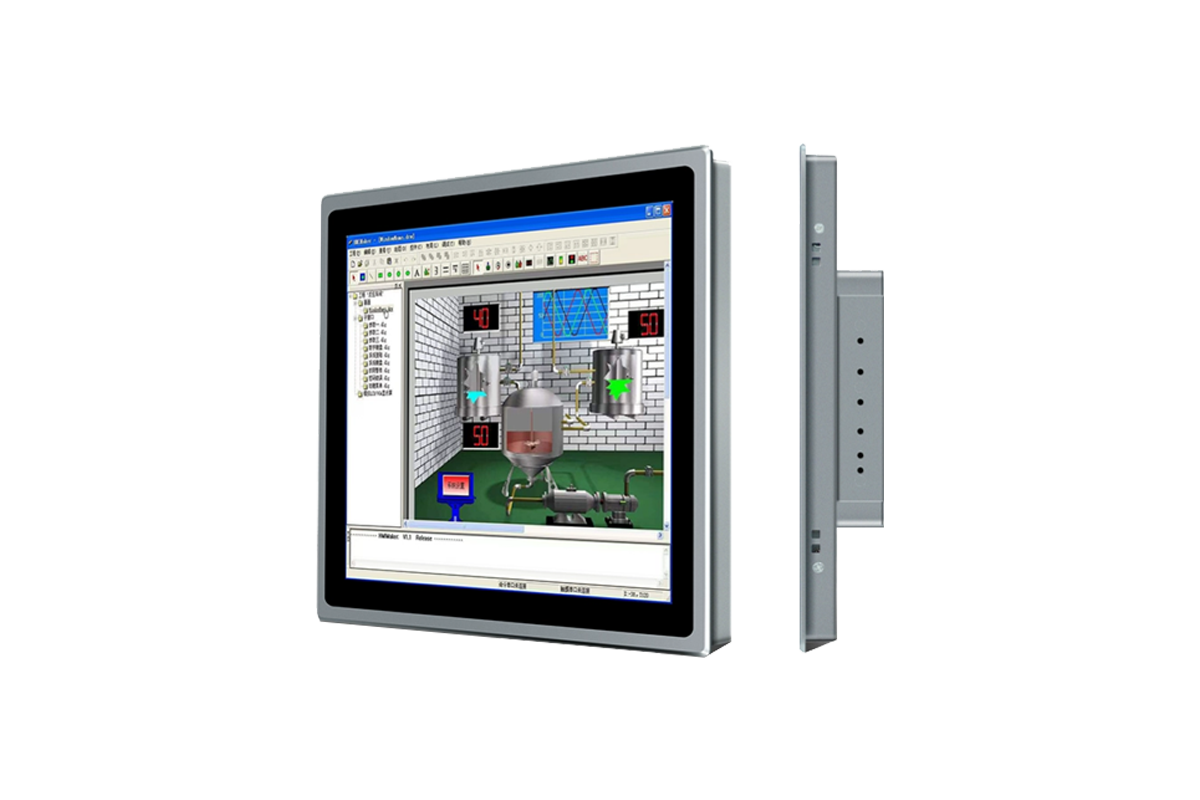

1537B 15" Embedded Standard Aspect Touchscreen Monitor
Features
+ Flat metal aluminum shell
+ The front panel meets the IP65 standard
+ Industrial grade LCD, LED backlight
+ Resolution 1024X768DPI@60Hz
+ 10 point projection capacitive touchscreen
+ 3mm anti-riot tempered glass
+ Ultra-Fast response speed and high precision

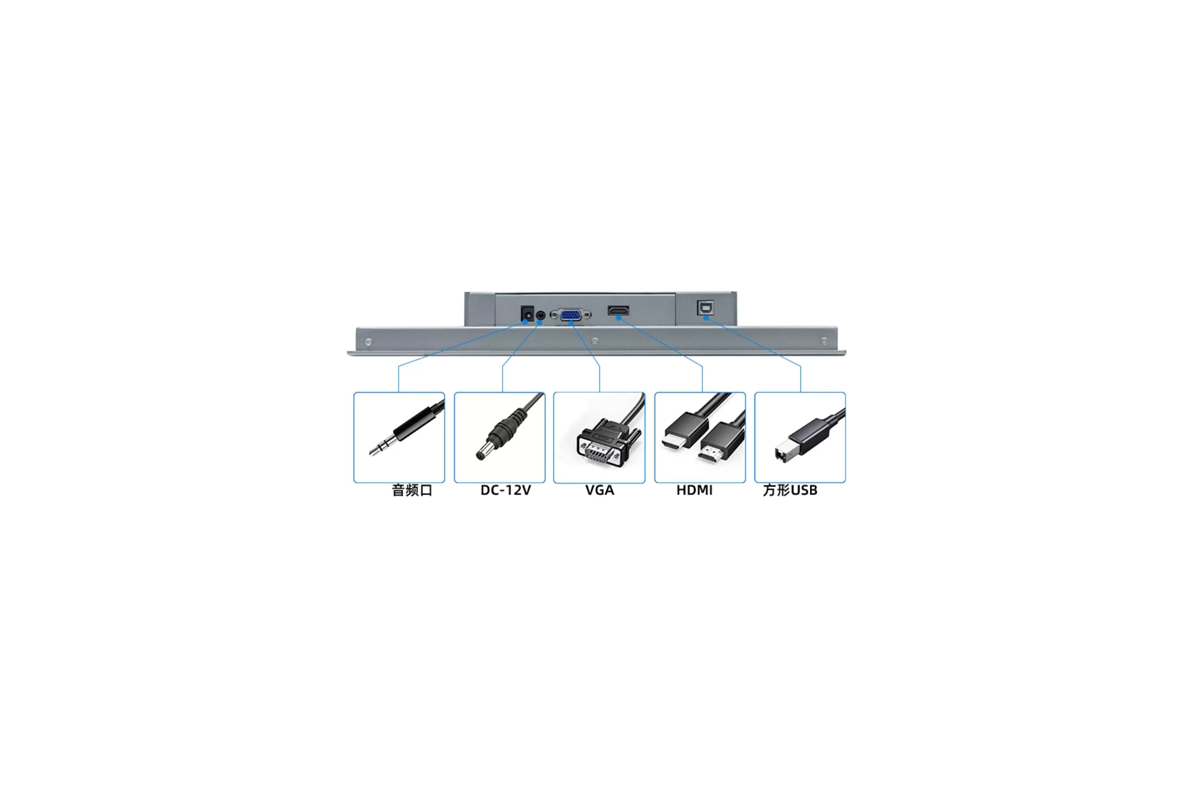

+ Video interface: HDMI+DVI+VGA
+ Back-mounted assembly structure
+ Prevent the DC port from falling off
+ Support OS: Windows/Android/Linux
+ 2-Years warranty
Optional：
- No touch
- Five-wire resistive touchscreen(5W)
- ALL-IN-ONE(X86 motherboard)
Specifications
Model
TDS1537B
Color
Silver
Diagonal
15"
Aspect Ratio
4:3
Active Area
304 x 228(mm)
Dimensions
350 X 296 X 59(mm)
Resolution
1024 X 768@60Hz
Viewing Angle
Horizontal: 80u00b0/80u00b0
Vertical: 80u00b0 /80u00b0
Number of Colors
16.7M
Brightness (typical)
LCD Panel: 300 nits
PCAP: 275 nits
Response Time
6ms
Contrast Ratio
1000:1
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
Input method
Finger, Capacitance pen(Standard)
Latex gloves touch (pre commissioning required)
Transmittance
u226590%
Surface hardness
6H(Mohs)
Touch Interface
USB2.0
Video Interface
VGA+HDMI
Speakers
TwoX2W internal speakers
Input Voltage
AC:100-240 VAC, 50/60 Hz
Sealability
Touchscreen sealed to bezel
Drop Test
1kg steel ball falls from 1.2m without breaking
Weight
(Unpackaged) 8KG
Operating Temperature
0u00b0C to 40u00b0C
Storage Temperature
-20u00b0C to 60u00b0C
Humidity
Operating: 20% to 70%;
Storage: 10% to 80%;
MTBF
50,000 hours demonstrated

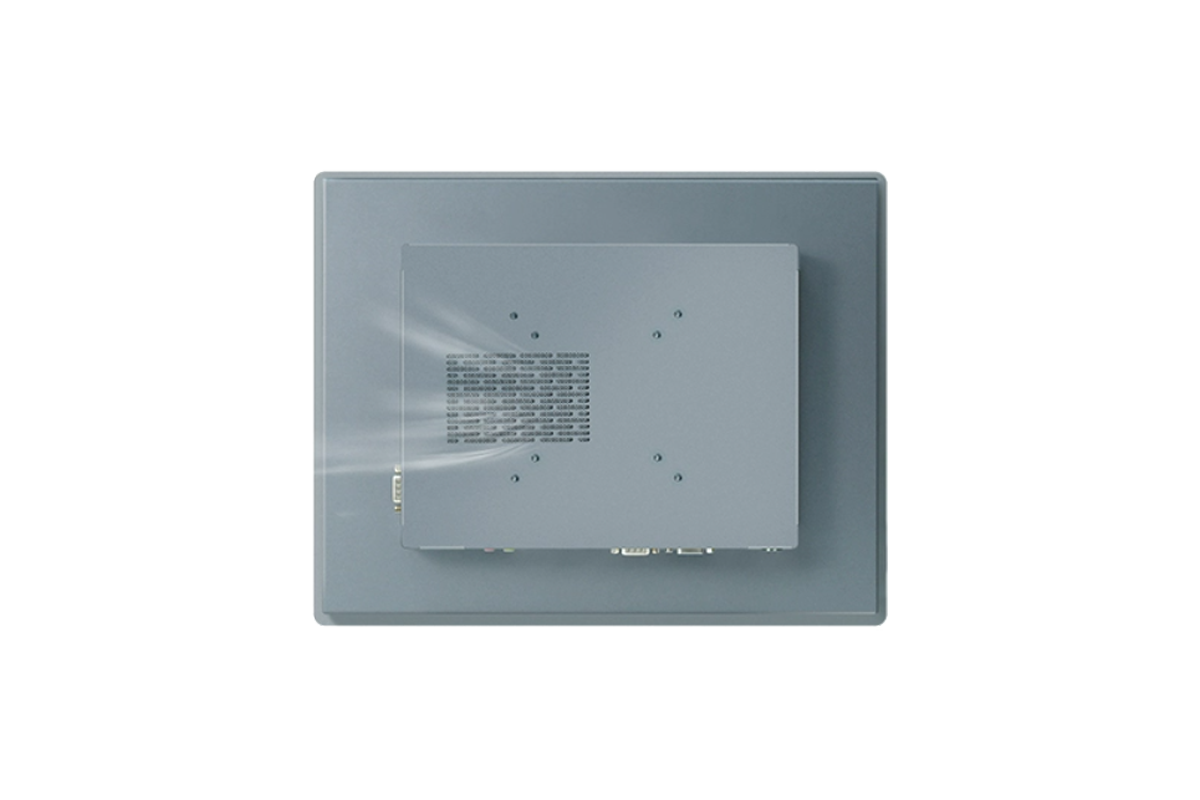

Mounting Options
VESA:75X75(mm)
100X100(mm)
Base Adjustable Angle
0-90 degrees(Optional)
Power Supply
DC:12V3A
Warranty
2-years
Agency Approvals
FCC, CE, ROHS
Support OS
Windows/Linux\Android
What's in the Box
1*USB cable,1*VGA cable,1*DC cable
