Digital signage, brand experience, electronic menus, conference terminals, retail display windows, information desks
Features
+ Metal shell, flat surface appearance
+ Front frame is waterproof and dustproof
+ Commercial grade LCD, LED backlight
+ Resolution 1920X1080FHD@60Hz
+ Supports vertical and horizontal display
+ Video interface: HDMI+VGA
+ BackVESA wall mounting hole
+ Support OS: Windows10/Linux
+ 2-Years Warranty
Motherboard Solution：
+ Low power industrial motherboard
+ Intel ® Core I5-6200U/2.3GHzprocessor
+ Optional: Intel® Core I5-8255Uprocessor
+ Intel® HD Graphics 520/620
+ 1*RJ45 gigabit network port
+ Supports dual-screen displayand4K
+ Supports power-on and restart
+ Support hardware watchdog
+ Supports 7X24 hours ofuse
+ Built-in OPS host architecture
Specifications
Model
TDS5530D
Color
Black
Diagonal
55"
Aspect Ratio
16:9
Active Area
1208 X 679(mm)
Dimensions
1268 X 738 X 55(mm)
Resolution
1920 X 1080@60Hz
Viewing Angle
Horizontal: 89u00b0/89u00b0
Vertical: 89u00b0 /89u00b0
Number of Colors
16.7M
Brightness (typical)
LCD Panel: 300 nits
PCAP: 275 nits
Response Time
8ms
Contrast Ratio
1200:1
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
Input method
Finger, Capacitance pen(Standard)
Latex gloves touch (pre commissioning required)
Transmittance
u226590%
Surface hardness
7H(Mohs)
Touch Interface
USB2.0
Processor
Intel Coreu00ae I5-6200U, 2.3GHz, Dual-core TDP15W, three- level cache, four-thread, up to 2.8GHz
Intel Coreu00ae I5-8255U, 1.6ghz, quad-coreTDP15W, three-stage slow8- thread, upto3.4ghz
Chipset
BayTrail
Kaby lake
Graphics
Intelu00aeHD Graphics 520
Intelu00aeHD Graphics 620
Memory
DDR4-4GB, single slot for maximum of 16GB
DDR4-8GB, dual slots for maximum of 64GB
Hard Disk
SSD 128GB
BIOS
64MB Flash ROM
Network
1 x RTL8111H GIGABit NIC, supporting wake up and PXE functions
Wireless
Wi-fi 802.11a/b/g/n/ protocol, 2.4ghz&5ghz dual wifi band
Speakers
TwoX2W internal speakers
I/O Interface
1*VGA, 1*HDMI, 2*USB3.0, 2*USB2.0uff0c1*RJ45(gigabit), 1*Line-out
Guard Dog
Hardware reset
Input Voltage
AC:100-240 VAC, 50/60 Hz
Sealability
Touchscreen sealed to bezel
Drop Test
1kg steel ball falls from 1.2m without breaking
Weight
(Unpackaged)32KG
Shipping Dimensions
1330 X 840 X 130(mm)
Operating Temperature
0u00b0C to 40u00b0C
Storage Temperature
-20u00b0C to 60u00b0C
Humidity
Operating: 20% to 70%;
Storage: 10% to 80%;
MTBF
30,000 hours demonstrated

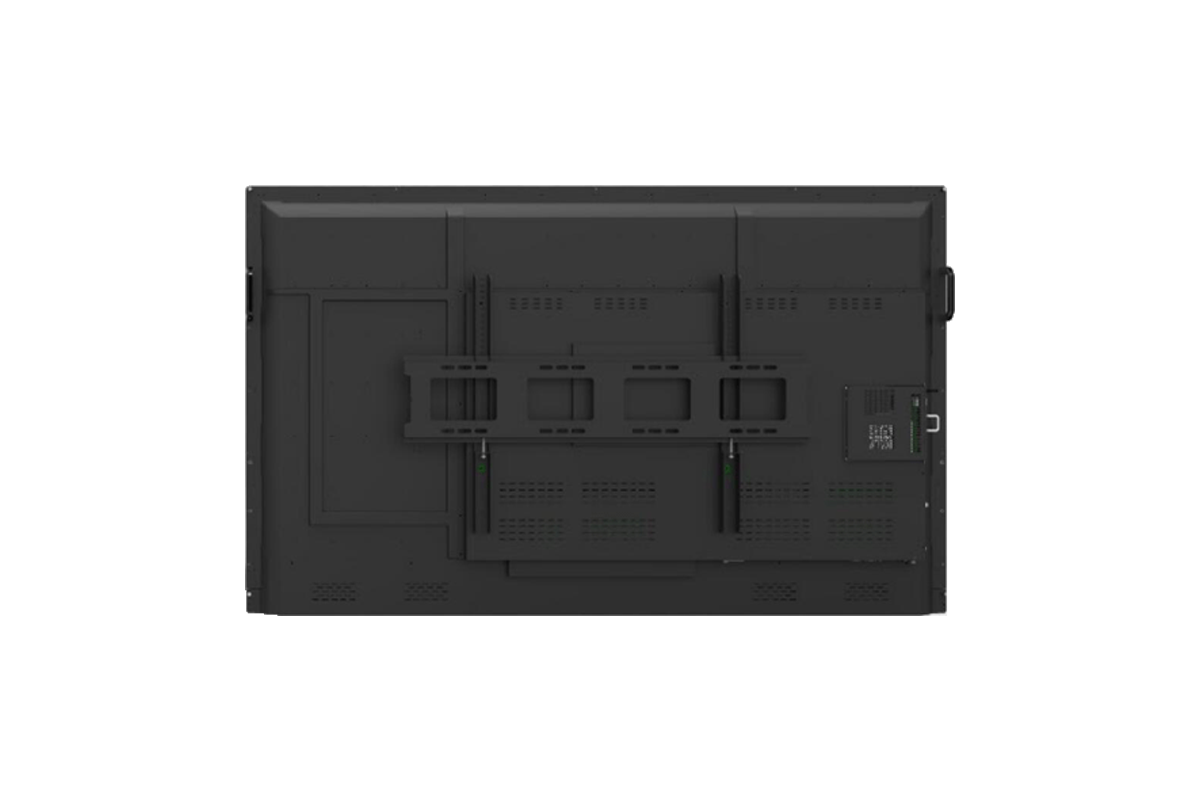

Mounting Options
VESA: 200 X 400(mm)
400 X 400(mm)
Power Supply
AC in build power
Warranty
2-years
Agency Approvals
FCC, CE, ROHS
Support OS
Windows 10/Android
What's in the Box
AC power cord, wall mount bracket
