Digital signage, brand experience, electronic menus, conference terminals, retail display windows, information desks
Features
+ Metal shell material,flat and ultra-thin shape
+ Front frame against dust and liquids
+ Commercial grade LCD, LED backlight
+ Resolution 1920X1080FHD@60Hz
+ 10 point projective capacitive touchscreen
+ Cover plate anti riot and anti fingerprint
+ Rockchip RK3399 processor motherboard
+ 64-bit processor with the frequency of 2.0GHz
+ Supports horizontal and vertical display and touch
+ Supports 2.4ghz & 5Ghz dual-band WIFI
+ Support timing switch and remote monitoring

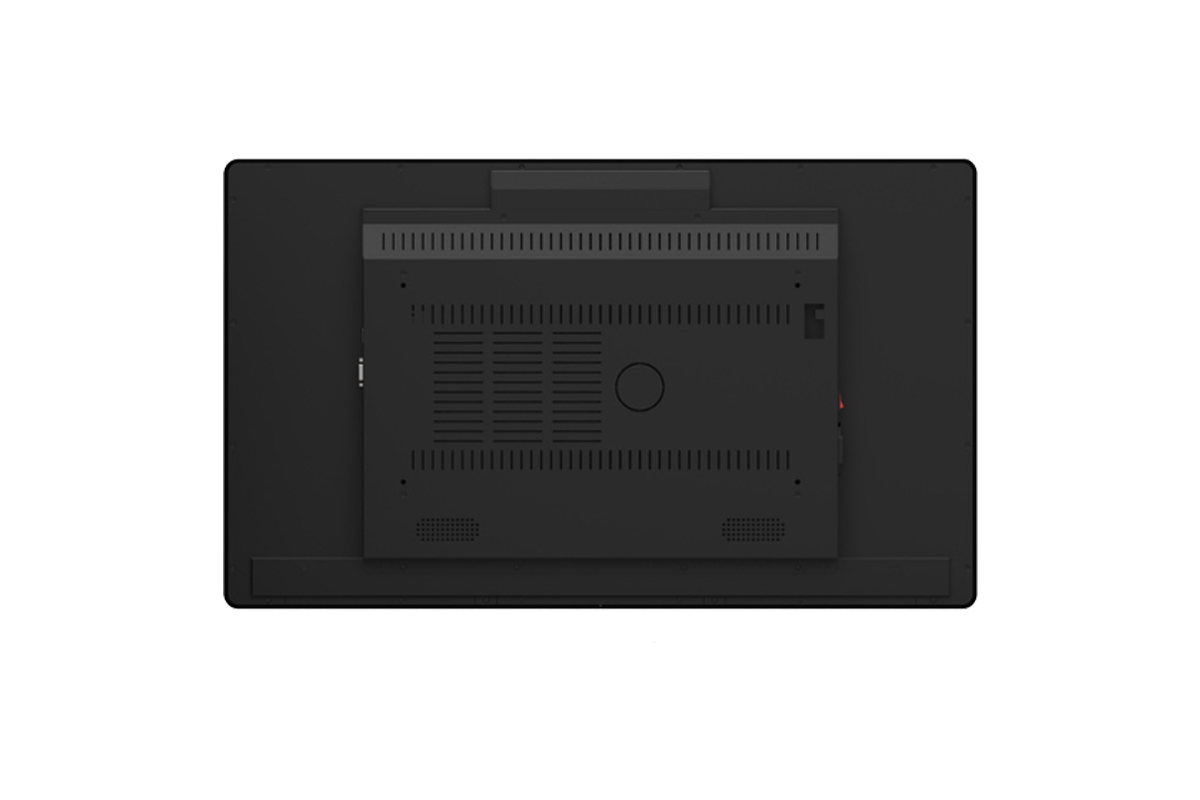

+ Back VESA wall mounting hole
+ Support OS: Android 9.0
+ 2-Year Warranty
Optional:
- No Touch
- AG Coating
- Resolution:3840X2160(4K）
- Media player box
- RK3288 processor
- Touchscreen Monitor
Specifications
Model
TDS5520D
Color
Black or Silver
Diagonal
55"
Aspect Ratio
16:9
Active Area
1209 X 680(mm)
Dimensions
1284 X 755 X 71(mm)
Resolution
1920 X 1080FHD@60Hz
Viewing Angle
Horizontal: 89u00b0/89u00b0
Vertical: 89u00b0 /89u00b0
Number of Colors
16.7M
Brightness (typical)
LCD Panel: 450 nits
PCAP: 415 nits
Response Time
6ms
Contrast Ratio
1400:1
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
Input method
Finger, Capacitance pen(Standard)
Latex gloves touch (pre commissioning required)
Surface Hardness
7H
Touch Accuracy
u22652.5mm
Transmittance
u226590%
Touch Interface
USB2.0
CPU
Rk3399/2.0Ghz, 6 core 64 bit processor
GPU
Mail-T860 GPU
Support OpenGL ES1.1,2.0,3.0,3.1, OpenVG1.1,OpenCL, DX11
Memory
DDR3-4GB
Storage
eMMC 32GB(16GB,32GB,64GB,128GB optional)
Network
1 X LAN RJ45(Gigabit)
WLAN Card
802.11b/g/n/ac protocol, support 2.4ghz & 5GHZ dual WIFI band
Bluetooth
Bluetooth 3.0
Speakers
TwoX2W internal speakers
Watch Dog
Support software watch dog
Timer Switch
Support
I/O Interface
2* USB2.0, 1*USB3.0uff0c1*USB3.0 type-ci, 1*HDMI, 1*RJ45, 1*TF/SIM, 1*DC12V, 1*MIC IN,u00a0
Input Voltage
AC:100-240 VAC, 50/60 Hz
Sealability
Touchscreen sealed to bezel
Drop Test
1kg steel ball falls from 1.2m without breaking
Shipping Dimensions
1380 X 820 X 220(mm)
Operating Temperature
0u00b0C to 40u00b0C
Storage Temperature
-20u00b0C to 70u00b0C
Humidity
Operating: 20% to 80%;
Storage: 10% to 90%;
MTBF
50,000 hours demonstrated
Mounting Options
VESA:400X400(mm)
Power Supply
DC:12V3A
Warranty
2-years
Agency Approvals
FCC, CE, ROHS
Support OS
Android7.1, 9.0
What's in the Box
AC cable wall mounting bracket(standard)
Handwriting capacitor pen(optional)
