Digital signage, brand experience, electronic menus, conference terminals, retail display windows, information desks
Features

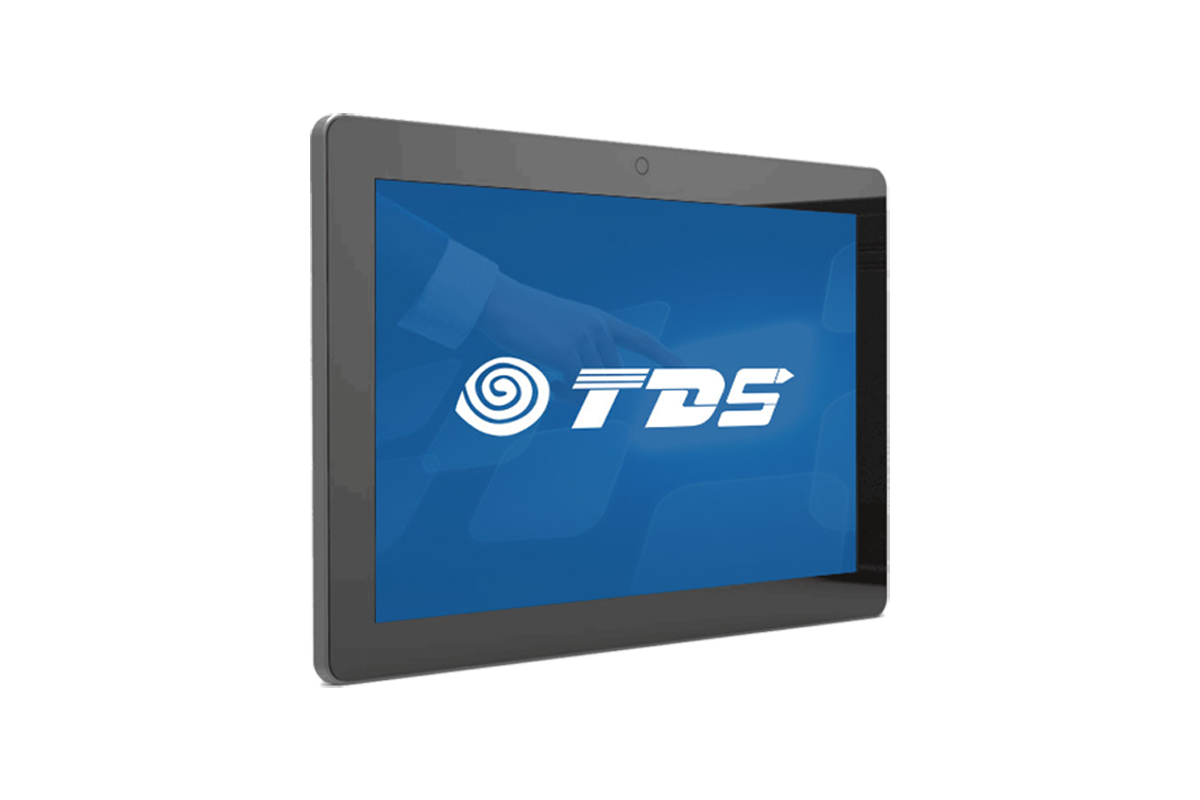

+ Metal material, flat ultra-thin frame
+ 10 point projection capacitive touchscreen
+ Commercial grade LCD, LED backlight
+ Resolution 1280X800@60Hz
+ Industrial ARM motherboard
+ Rockchip RK3399 six-core 64-bit processor
+ Optional: Rockchip RK3288 quad-core processor
+ Supports dual display and HDMI supports 4K
+ Supports 360 degree image rotation
+ Support software watchdog, support remote update
+ Supports power-on, POE, and one-button reset
+ Expandable Reader, RFID and other peripherals
+ Support 7x24 working hours

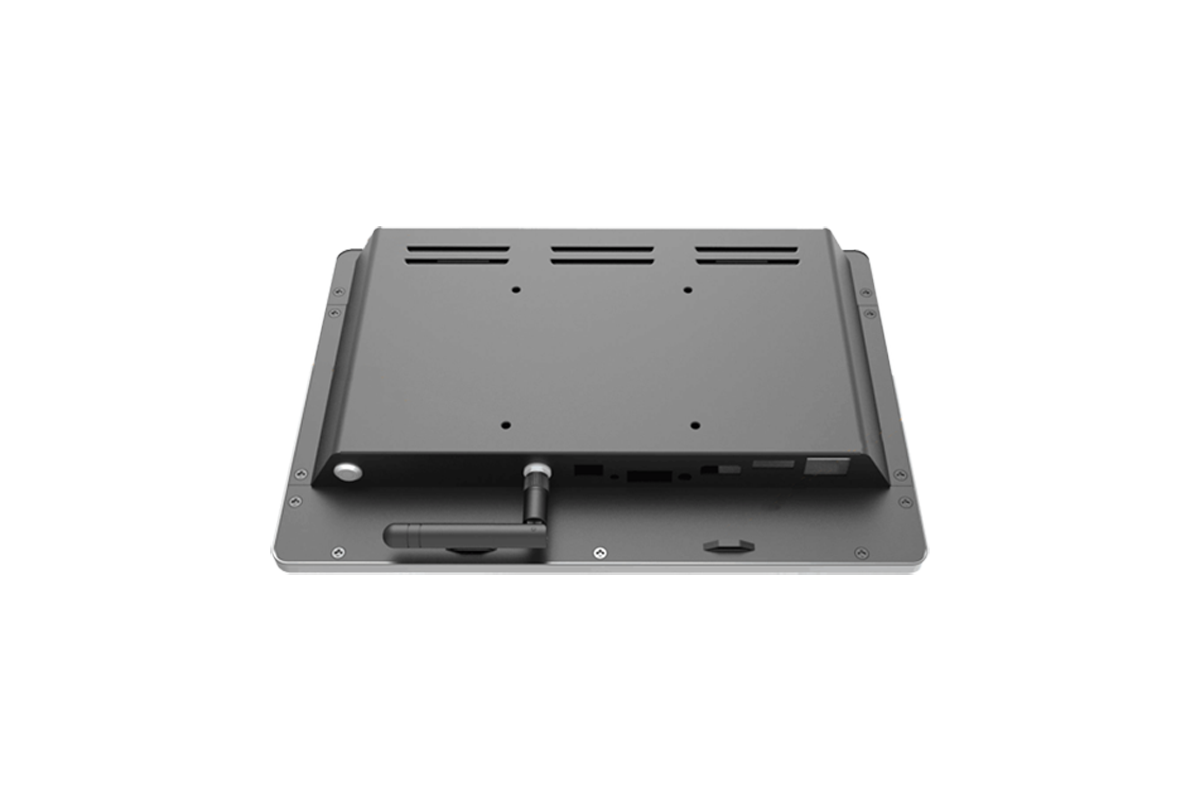

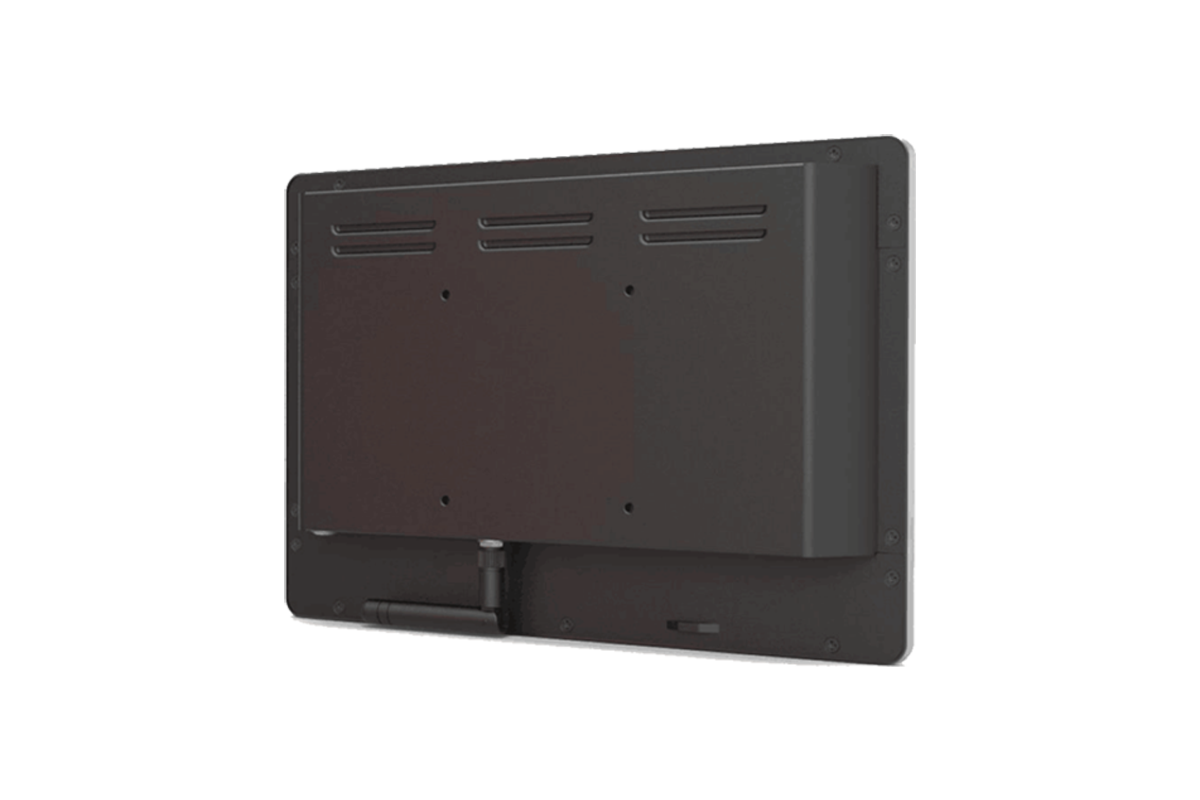

+ Back VESA wall mounting hole
+ Supports Android 7.1/9.0
+ 2-Years Warranty
Optional:
- No Touch
- Camera
- AG Coating
- POE
Specifications
Model
TDS1020D
Color
Black or Silver
Diagonal
10.1"
Aspect Ratio
16:10
Active Area
217 X 136(mm)
Dimensions
254 X 173 X 30(mm)
Resolution
1280 X 800@60Hz
Viewing Angle
Horizontal: 85u00b0/85u00b0
Vertical: 85u00b0 /85u00b0
Number of Colors
16.7M
Brightness (typical)
LCD Panel: 300 nits
PCAP: 275 nits
Response Time
30ms
Contrast Ratio
800:1
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
Input method
Finger, Capacitance pen(Standard)
Latex gloves touch (pre commissioning required)
Transmittance
u226590%
Touch Interface
USB2.0
Processor
Rk3399/2.0Ghz, 64 bit processor
RK3288/1.8Ghz
Memory
DDR3-4GB
DDR3-2GB
Hard Disk
32GB, maximum to 128GB
16GB, maximum to 32GB
Network
Wi-fi 802.11b/g/n/ac+Bluetooth 4.0
Speakers
TwoX2W internal speakers
I/O Interface
2* USB2.0, 1*RS232uff0c1*485, 1*RJ45, 1*OTG USB, 1*Line-out, 1*TF/SIM, 1*DC12V
OS
Android 7.1, 9.0
Android 6.0, 7.1
Watch Dog
Support software watch dog
Real time clock
Built in real time clock power supply battery, supporting the timing switch
System Management
APK install
Original Android system, open root rights, can be customized product
Real time remote monitoring, system crash self recovery, 7*24 hours use
Support OTA remoteupgrade
Support wifi display
Input Voltage
AC:100-240 VAC, 50/60 Hz
Sealability
Touchscreen sealed to bezel
Drop Test
1kg steel ball falls from 1.2m without breaking
Weight
(Unpackaged) 1.5KG
Shipping Dimensions
350 X 200 X 80(mm)
Operating Temperature
0u00b0C to 40u00b0C
Storage Temperature
-20u00b0C to 60u00b0C
Humidity
Operating: 20% to 70%;
Storage: 10% to 80%;
MTBF
30,000 hours demonstrated
Mounting Options
VESA:75X75(mm)
Power Supply
DC:12V3A
Warranty
2-years
Agency Approvals
FCC, CE, ROHS
Support OS
Android
What's in the Box
1*power cable, 1*power adapter
