Model# 3202D
Large Format 02D Serials

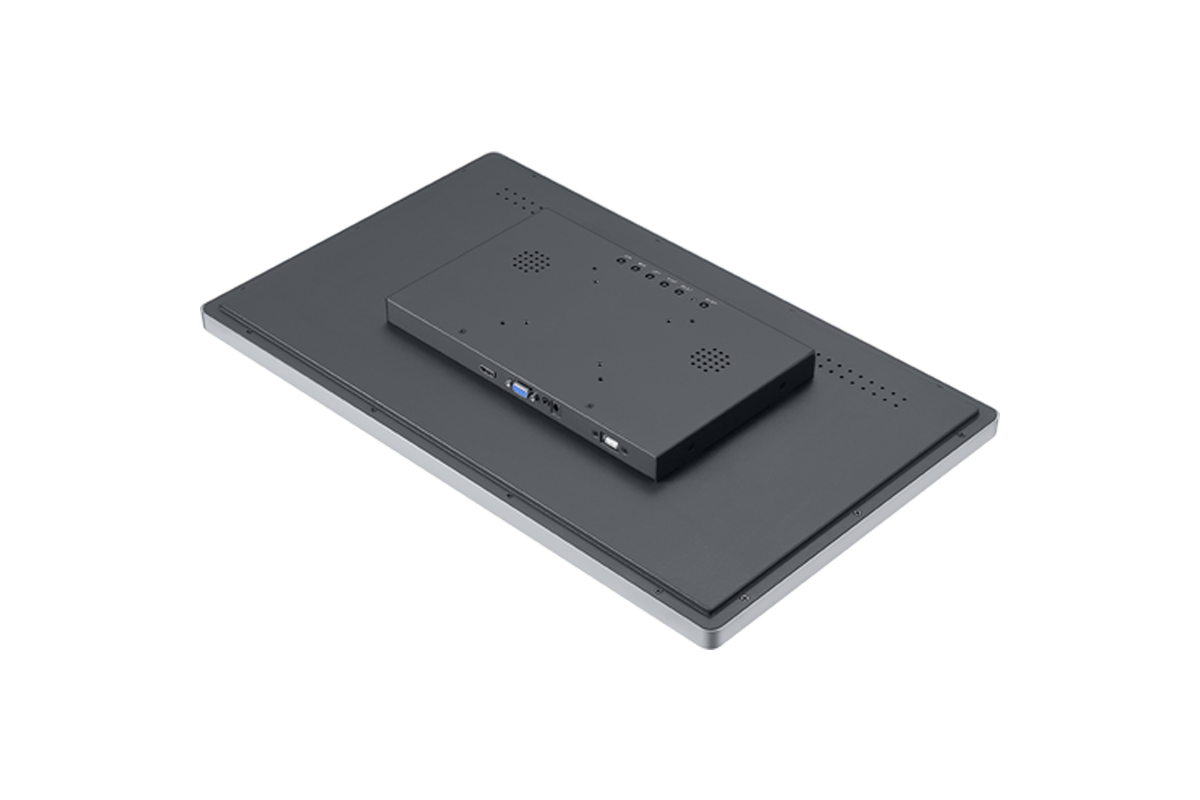

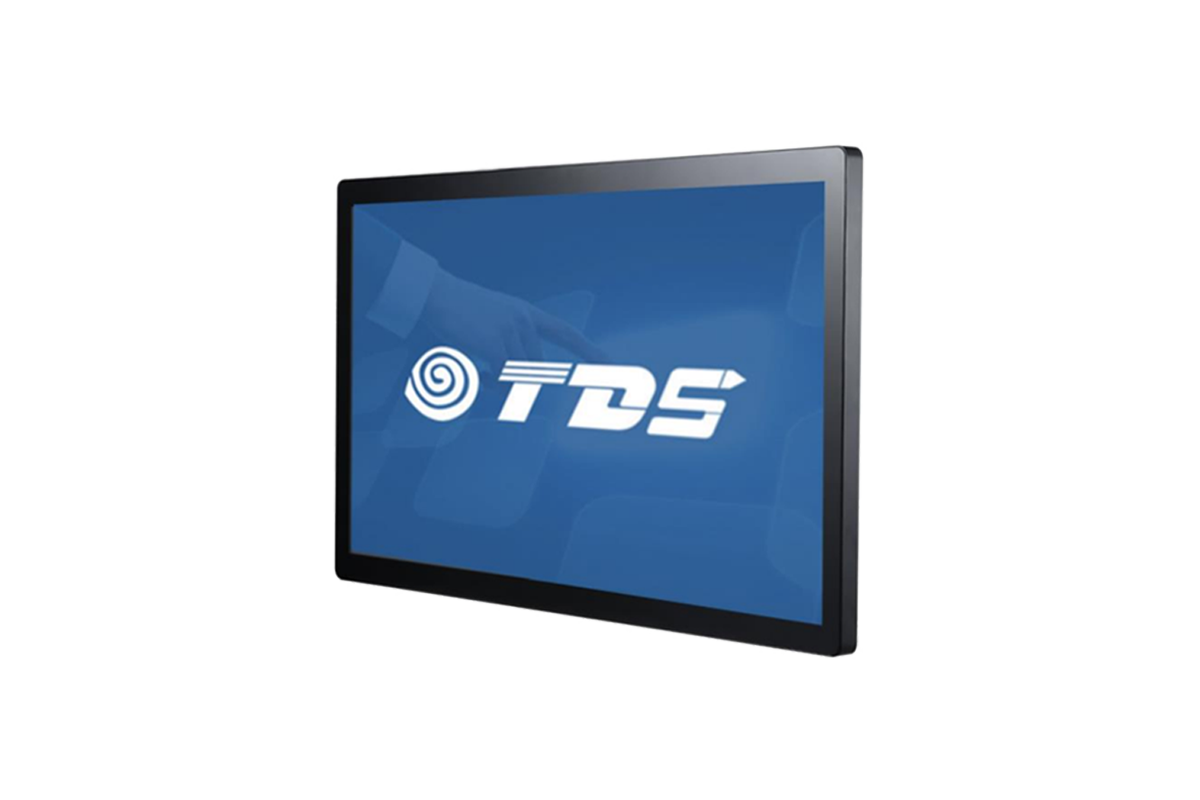

3202D 32" Touchscreen Monitor

TDSTOUCH New
Models:

Point-of-sale, self-service-signage, Commercial applications

Features

+ Metal shell material flat and ultra-thin shape

+ Front frame against dust and liquids

+ Commercial grade LCD, LED backlight

+ Resolution 1920X1080FHD@60Hz

+ Wide ratio and full viewing Angle

+ 10 point projective capacitive touchscreen

+ Cover plate anti riot and anti fingerprint

+ Supports vertical and horizontal screen

+ Video interface : HDMI+VGA

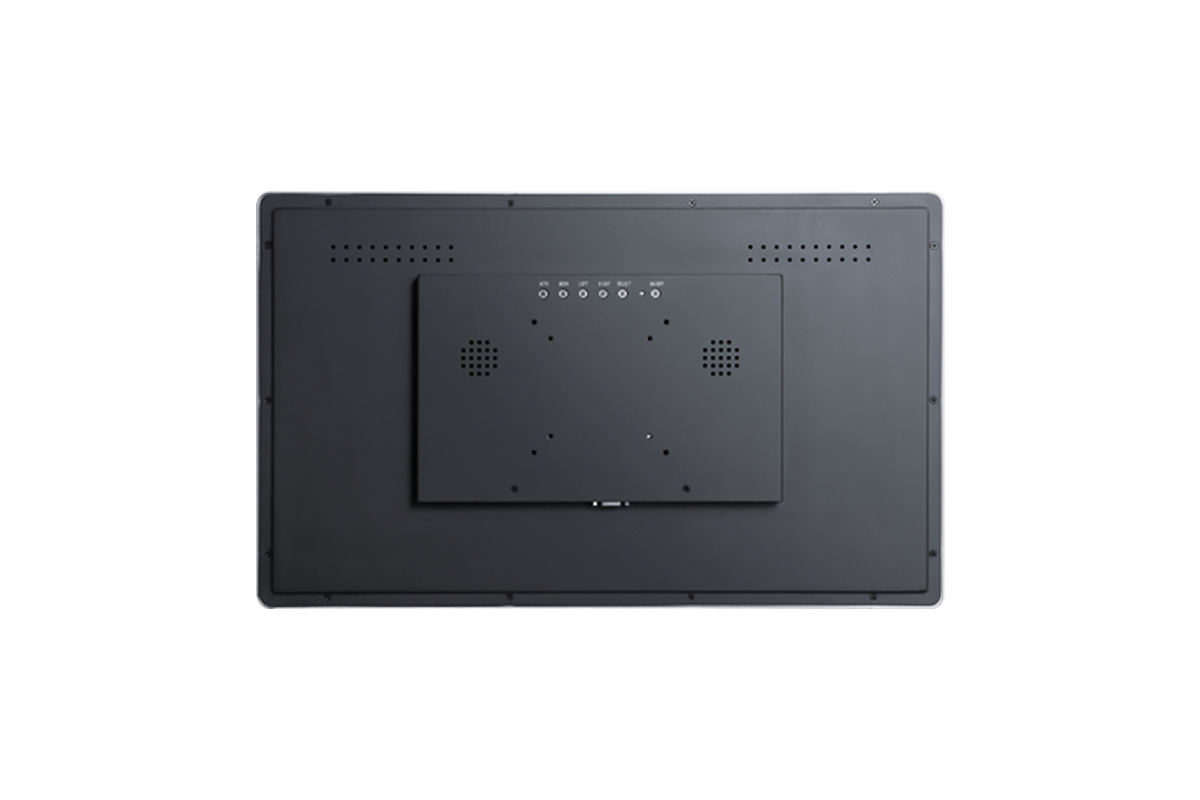

+ Back VESA wall mounting hole

+ Support OS: Windows/Android/Linux

+ 2 Year Warranty


Optional:

- No Touch

- AG Coating

- Video interface: Display Port

- Media play

- All-in-one (Android/Windows)

Specifications

Model

3202D

Color

Black/Silver

Diagonal

32 inch

Aspect Ratio

16:9

Active Area

699.4×393.4 (mm)

Dimensions

749.2×454.6×54 (mm)

Resolution

1920×1080FHD@60Hz

Viewing Angle

Horizontal: 89°/89°, Vertical: 89°/89°

Number of Colors

16.7M

Brightness

LCD panel: 400nits; PCAP: 375nits

Contrast Ratio

1200:1

Response Time

8ms

Touch Technology

Projective Capacitive - 10 point touch

Input Method

Finger, Capacitance pen (Standard), Latex gloves touch (pre-commissioning required)

Light Transmittance

90%

Surface Hardness

7H (Mohs)

Touch Interface

USB 2.0

Video Interface

HDMI+VGA

Speakers

Two×2W internal speakers

Input Voltage

AC: 100-240 VAC, 50/60 Hz

Power Type

Built-in AC

Scalability

Touchscreen sealed to bezel

Drop Test

450g steel ball falls from 1.2m without breaking

Weight (Unpackage)

13KG

Shipping Dimensions

820×130×550 (mm)

Operating Temperature

0°C to 40°C

Storage Temperature

-10°C to 60°C

Humidity

Operating: 20% to 70%; Storage: 10% to 80%

VESA Mounting

200×400 (mm)

MTBF

30,000 hours

Warranty

2-years

Agency Approvals

FCC, CE, ROHS

Support OS

Windows/Linux/Android

Accessories

Enhancements, expansions, and extras.

Resources

3202D Specification & Drawing
