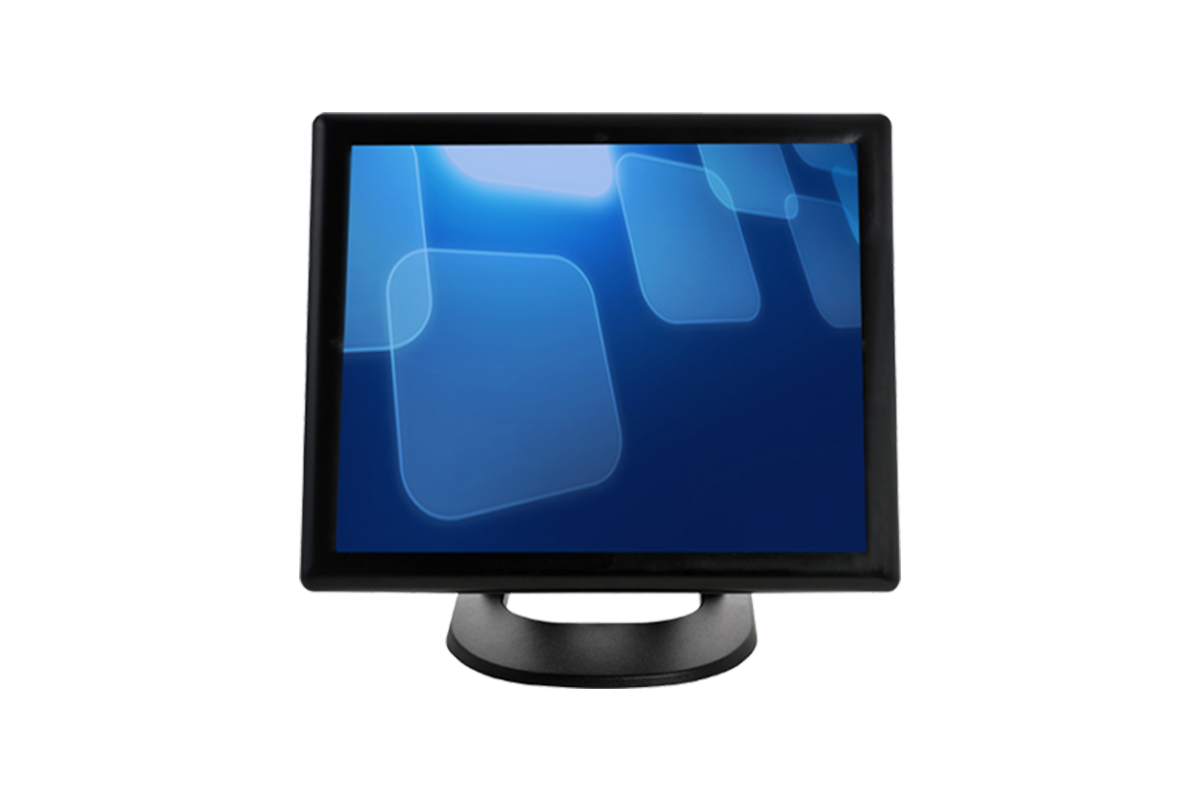

Suited for Retail, Information acquisition desk, Service station, Conference terminal, Cash register system, Library inquiry terminal
Features
-ABS+PC plastic shell

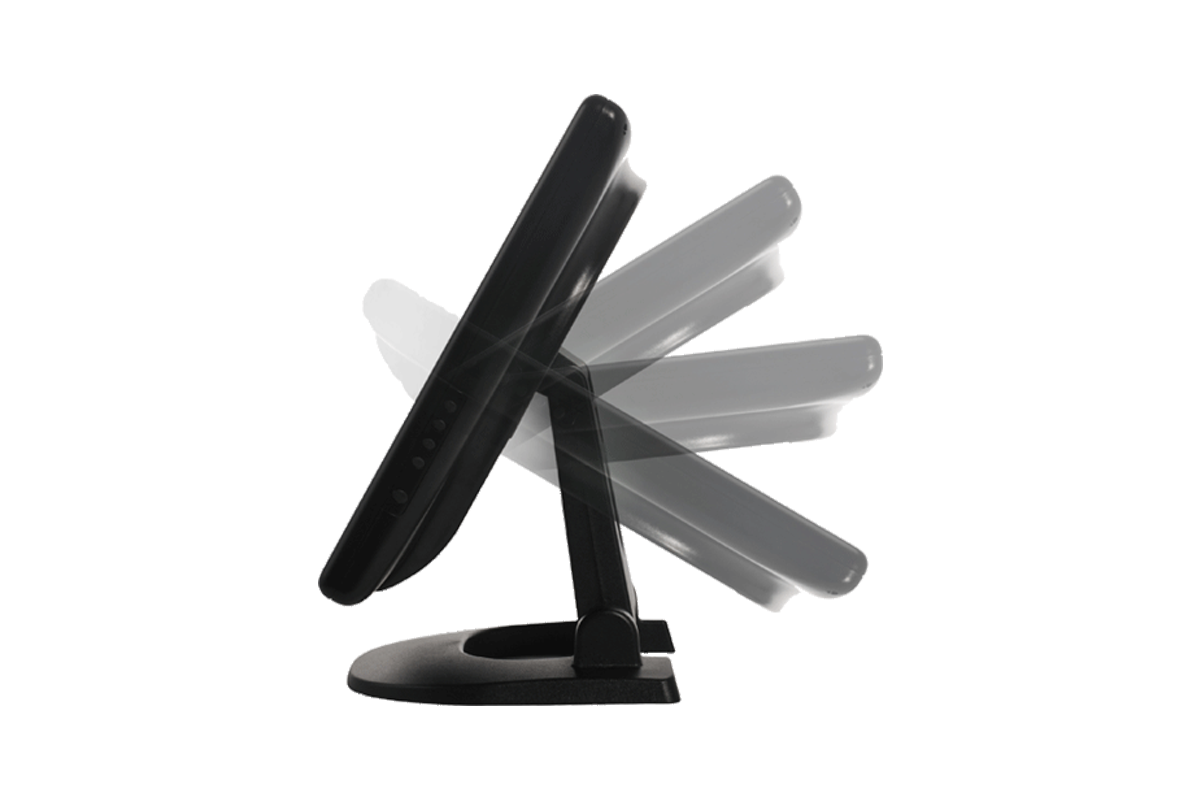

-Stable base with adjustable angle
-Dust-proof and Water-proof Front Panel
-Industrial grade LCD, LED back-light
-1280 X 1024 DPI 60HZ
-10-point PCAP touchscreen

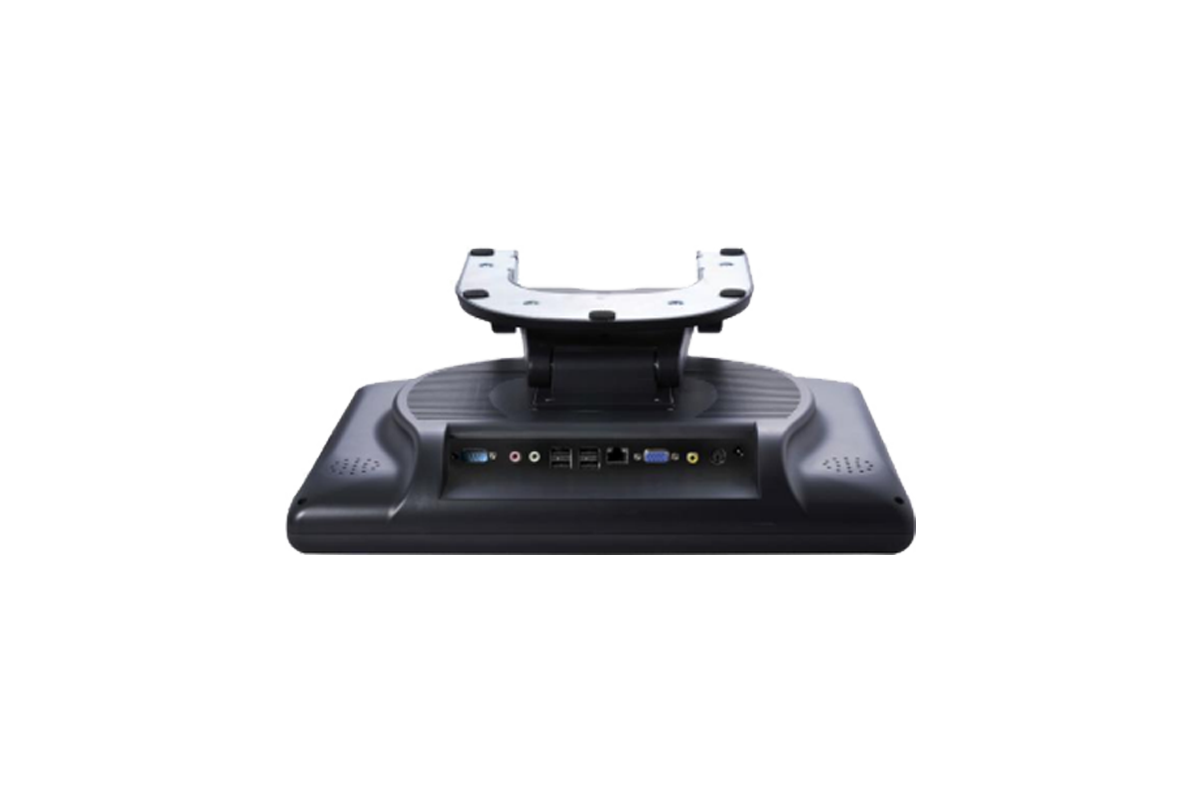

-Multi-video interface: HDMI+VGA

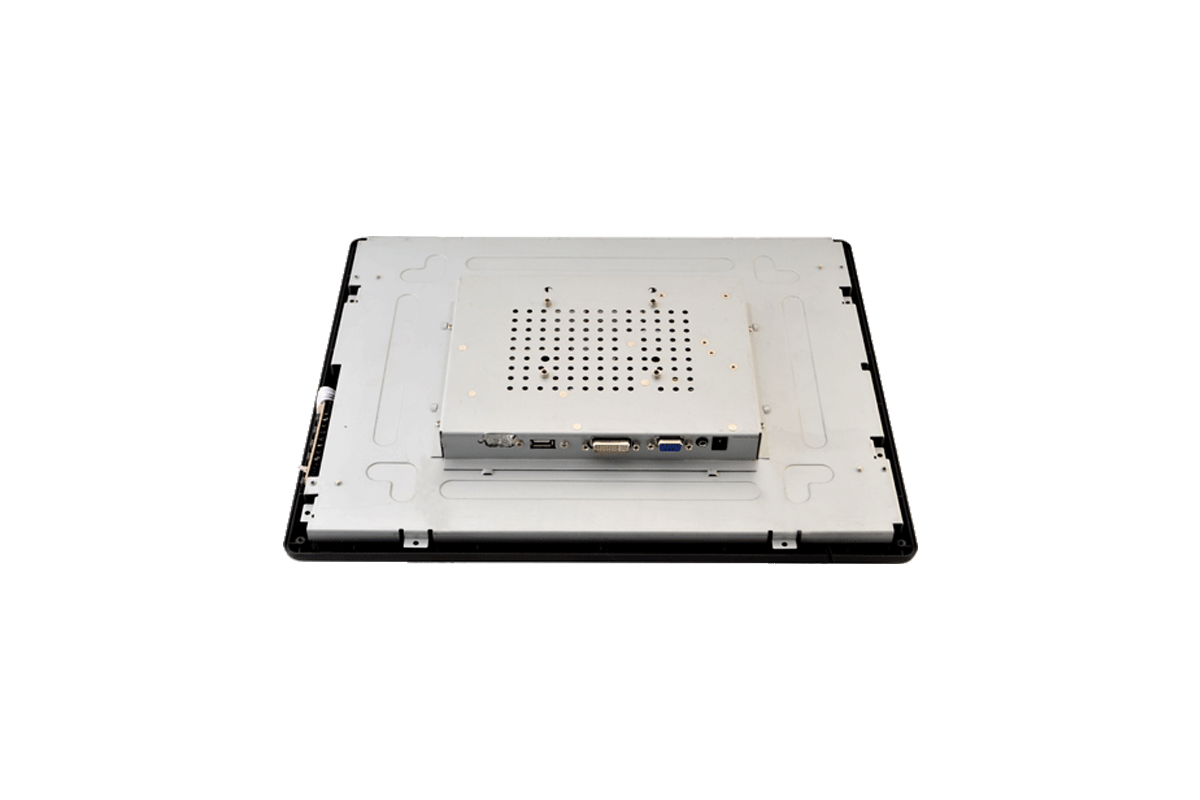

-VESA Mount and side fixed mount position
-Support Windows, Android, Linux
-3 Years warranty
Optional：
- No Touch
- Privacy filter
- Touch interface: Dual serial/USB
- Video interface: Display Port
- ALL-IN-ONE(Windows/Android)
Specifications
Model
TDS1701
Color
Black
Diagonal
17"
Aspect Ratio
5:4
Active Area
338 x 270(mm)
Dimensions
400 x 330 x 69(mm)
Resolution
1280 X 1024@60Hz
Viewing Angle
Horizontal: 85°/85°
Vertical: 80°/80°
Number of Colors
16.7M
Brightness (typical)
LCD Panel: 300 nits, PCAP: 275 nits
Response Time
5ms
Contrast Ratio
1000:1
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
Input method
Finger, Capacitance pen(Standard)
Latex gloves touch (pre commissioning required)
Transmittance
90%
Surface hardness
7H(Mohs)
Touch Interface
USB2.0
Video Interface
VGA+HDMI
Speakers
Two X 2W internal speakers
Input Voltage
AC:100-240 VAC, 50/60 Hz
Sealability
Touchscreen sealed to bezel
Drop Test
1kg steel ball falls from 1.2m without breaking
Weight
(Unpackaged) 6KG
Shipping Dimensions
570 x 400 x 45(mm)
Operating Temperature
0u00b0C to 40u00b0C
Storage Temperature
-20u00b0C to 60u00b0C
Humidity
Operating: 20% to 70%;
Storage: 10% to 80%;
MTBF
50,000 hours demonstrated
Mounting Options
VESA:75X75(mm)
100X100(mm)
Base Adjustable Angle
0-90 degreesuff08Optional)
Power Supply
DC:12V3A
Warranty
3-years
Agency Approvals
FCC, CE, ROHS
Support OS
Windows, Linux, Android
What's in the Box
1*USB cable,1*VGA cable,1*DC cable
