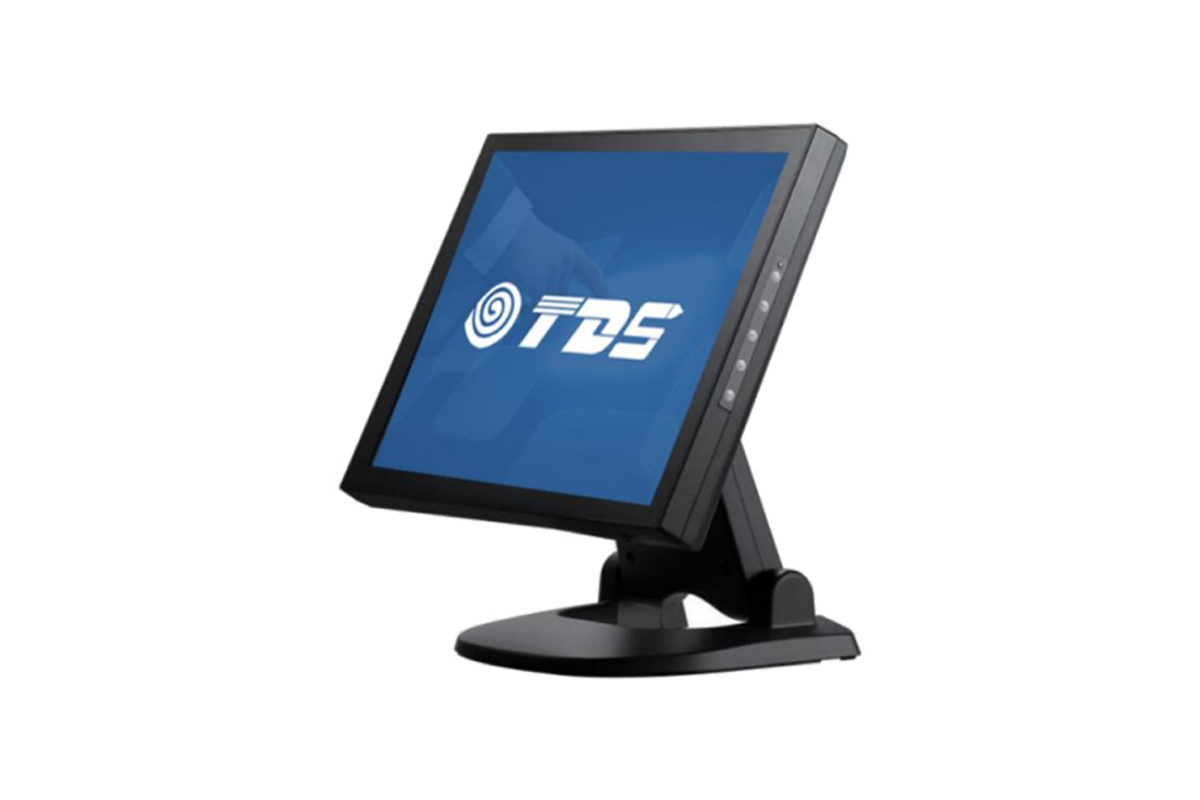

1502 15" Desktop Touchscreen Monitor
Suited for Industrial automation console, IoT self-service terminal, industrial dashboard.
Features
+ Flat appearance design
+ ABS+PC plastic shell material
+ Front frame against dust and liquids
+ Hidden cooling air duct structure
+ Industrial grade LCD, LED backlight
+ Resolution 1024 X768@60Hz
+ High contrast and high brightness
+10 point projective capacitive touch screen
+ Cover plate anti riot and anti fingerprint

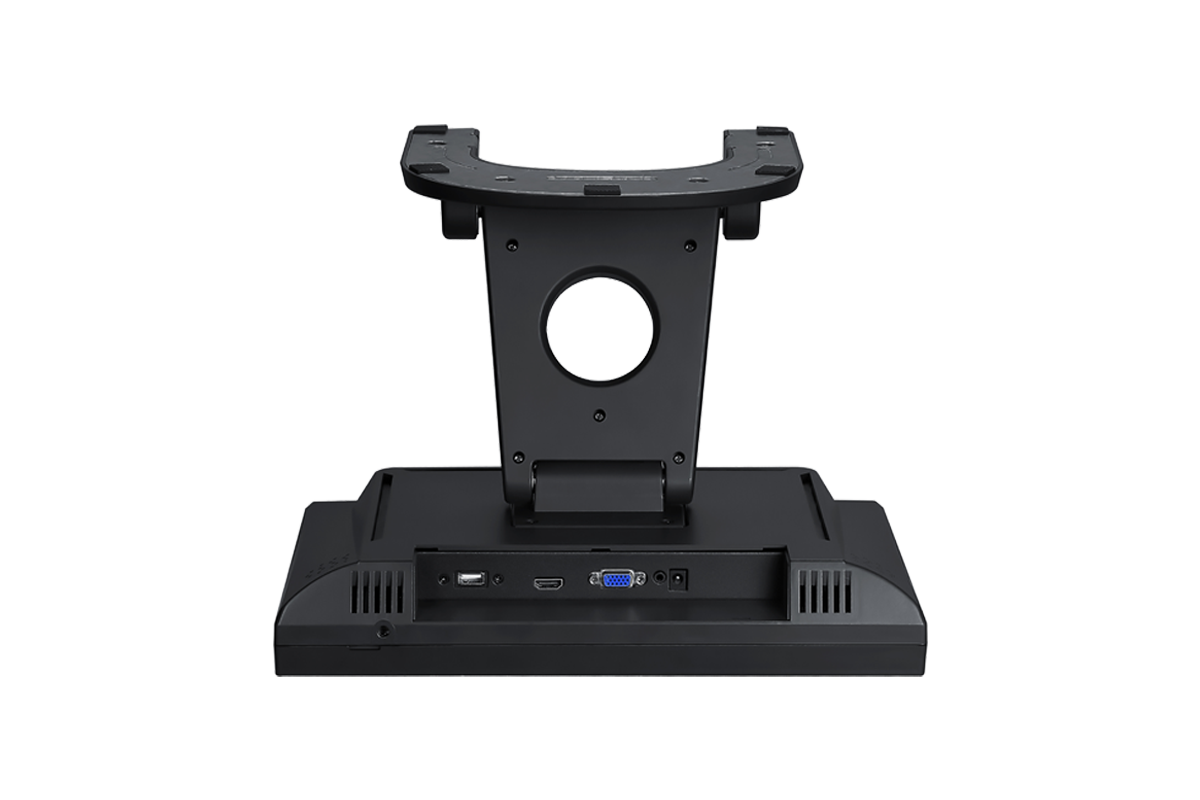

+ Video interface: HDMI+VGA

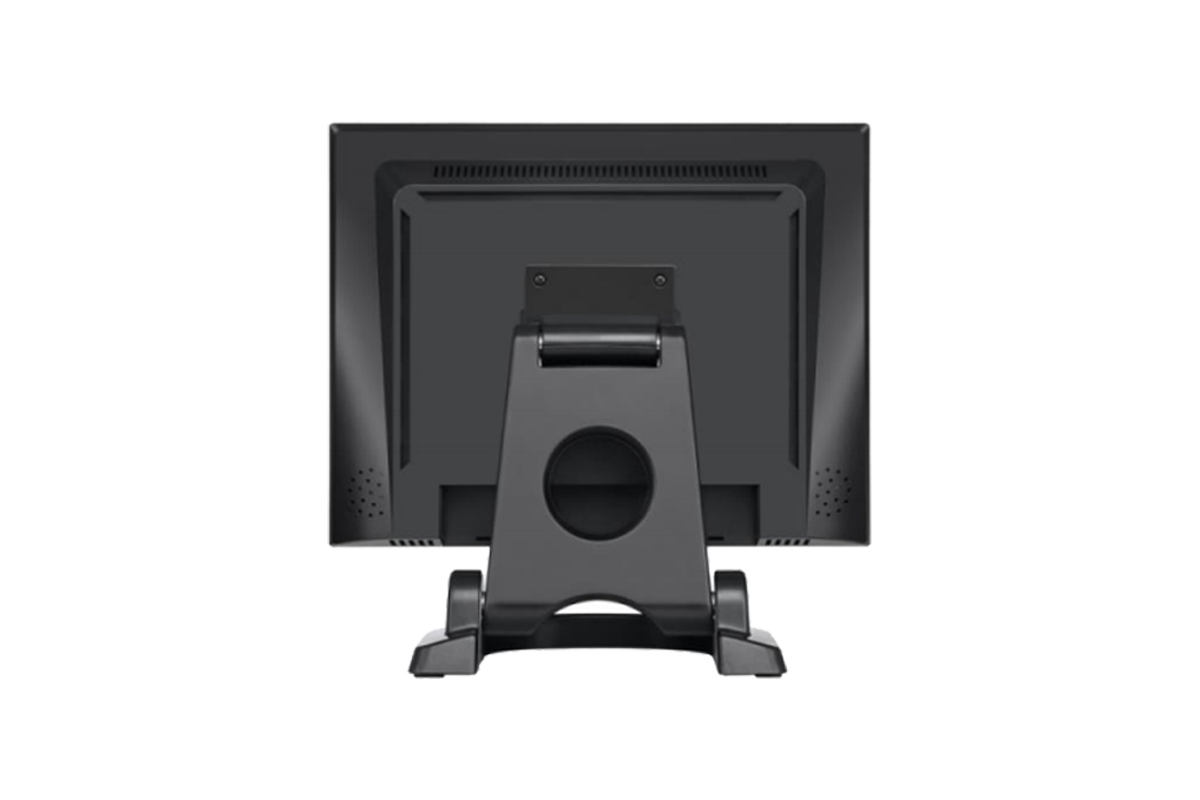

+ Stable base with adjustable angle
+ Back VESA wall mounting hole
+ Support OS: Windows/Android/Linux
+ 2-years warranty
Optional:
- No Touch
- Private Filter
- Touch interface:RS232
- Video interface:Display Port
- All-in-one (Windows/Android)
Specifications
Model
TDS1502
Color
Black, Gray
Diagonal
15"
Aspect Ratio
4:3
Active Area
304 x 228(mm)
Dimensions
346 x 270 x 42(mm)
Resolution
1024 X 768@60Hz
Viewing Angle
Horizontal: 89°/89°
Vertical: 89° /89°
Number of Colors
16.2M
Brightness (typical)
LCD Panel: 300 nits
PCAP: 275 nits
Response Time
20ms
Contrast Ratio
1500:1
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
Input method
Finger, Capacitance pen(Standard)
Latex gloves touch (pre commissioning required)
Transmittance
90%
Surface hardness
7H(Mohs)
Touch Interface
USB2.0
Video Interface
VGA+HDMI
Speakers
Two X 2W internal speakers
Input Voltage
AC:100-240 VAC, 50/60 Hz
Sealability
Seal between touchscreen and frame
Drop Test
1kg steel ball falls from 1.2m without breaking
Weight
(Unpackaged) 3.5KG
Shipping Dimensions
520 x 340 x 135(mm)
Temperature
Operating: 0°C to 40°C
Storage: -20°C to 60°C
Humidity
Operating: 20% to 70%;
Storage: 10% to 80%;
MTBF
50,000 hours demonstrated
Mounting Options
VESA:75X75(mm)
100X100(mm)
Base Adjustable Angle
0-90 degrees(Optional)
Power Supply
DC:12V3A
Warranty
2-years
Agency Approvals
FCC, CE, ROHS
Support OS
Windows, Linux, Android
What's in the Box
1*USB cable,1*VGA cable,1*DC cable
