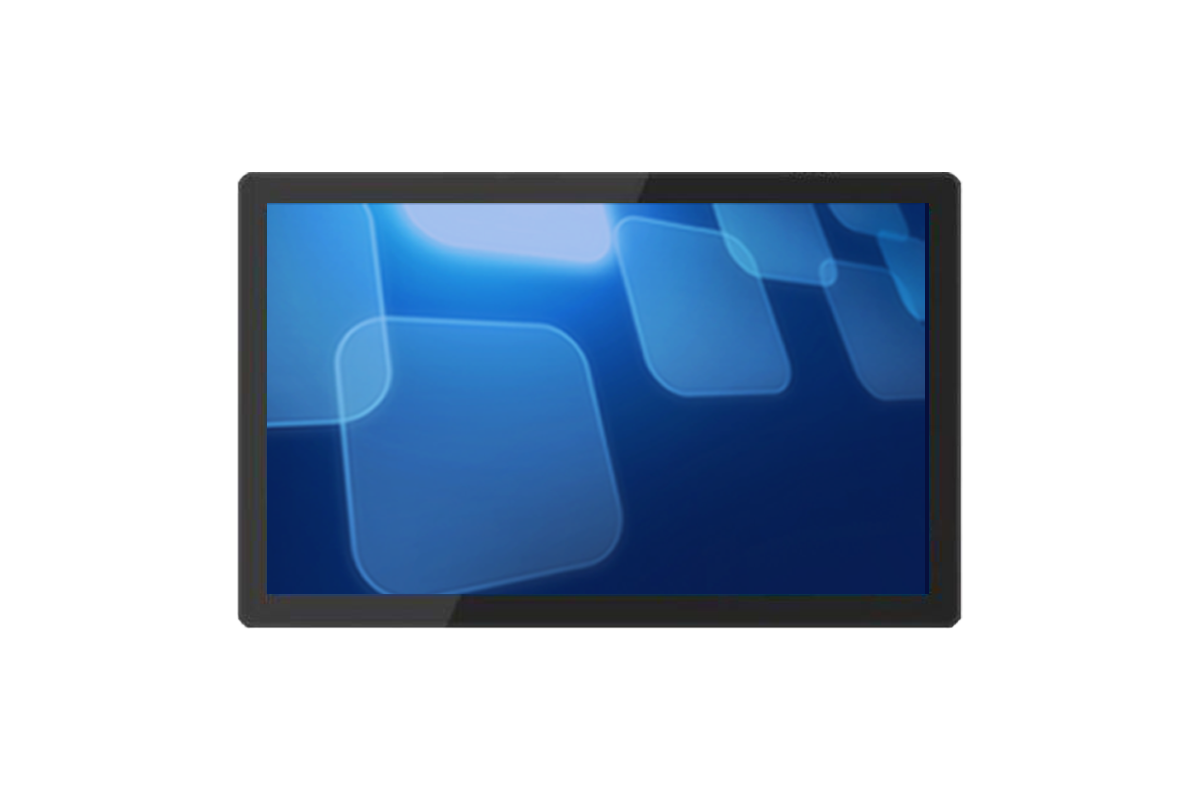

2130E 21" Industrial Touchscreen Computer
Industrial automation console, IOT self-service terminal, industrial dashboard
Features
+ Flat front bezel,Aluminum material Shell
+ Fanless design, IP54 dustproof and waterproof
+ Industrial grade LCD screen, LED backlight
+ Resolution 1920X1080FHD@60Hz
+10-touch projection capacitive touchscreen
+ Low power industrial grade motherboard
+ Intel 12th Celeron®J6412 high-performance processor
Option: 10th Generation Intel® Core™ i5 Processors
+ 9-24V wide input voltage, stable operation
+ Various connection modes: wired network, Wireless Wi-Fi, Bluetooth
+ Supports wall-mounting, column mounting, floor-standing bracket
+ Support OS:windows10/11/Linux/Ubuntu
+ 2 -year warranty
Optional：
-No touchscreen
-AG coating
-Android motherboard
-Card reader
-Interface customized
-Brightness customized
Specifications
Model
2130E
Color
Dark gray/silver
Diagonal
21.5”
Aspect Ratio
16:9
Active Area
473.6X265.1(mm)
Dimensions
517.6X310.2X50(mm)
Native Resolution
1920X1080FHD@60Hz
Number of Colors
16.7M , 72% NTSC
Viewing Angle
Horizontal:89°/89°, Vertical:89°/89°
Aspect Ratio
1000:1 (Typ.)
Brightness
LED: 300nits, Touch:275nits
LED Response
8ms
Touch Technology
Projected capacitive touch screen -10 points
Glass Thickness
3mm,tempered anti-riot treatment
Touch Mode
Fingers/silicone gloves/capacitive stylus
Touch the accuracy
≥2mm
Touch Interface
USB2.0
Processor
Intel® Celeron®J6412
(1.5M Cache,up to 2.6 GHz)
Intel® Core™ i5-10210U
(6M Cache, up to 4.2GHz)
BIOS
AMI
Graphics
Intel® UHD Graphics for 10th
Memory
DDR4L-8GB
Storage
SSD 128GB
LAN
2*Gigabit LAN(intel i211 AT)
Wireless
802.11 a/b/g/n/ac/ax 2.4GHz/5GHz
Bluetooth
Bluetooth 5.2
Input Voltage
AC: 100-240 VAC , 50-60 Hz

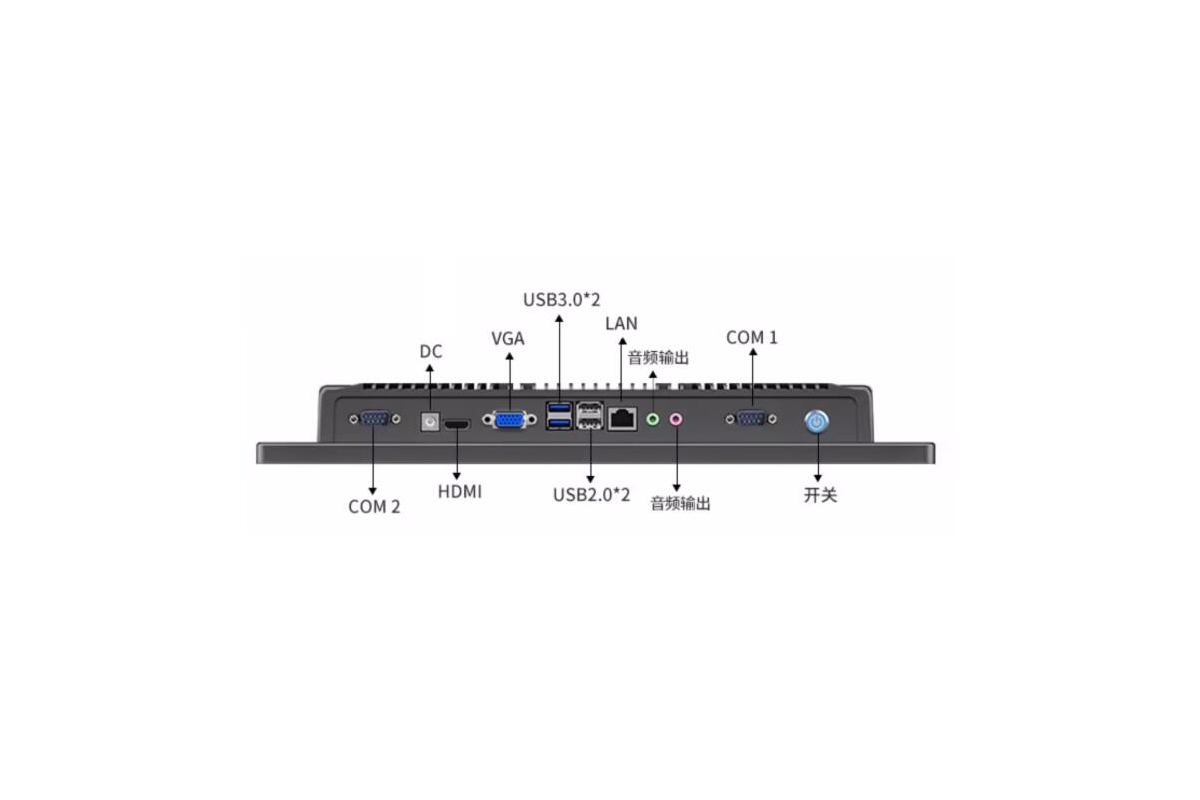

I/O Interface
2*USB2.0,2*USB3.0,2*COM, 2*RJ45 LAN Port,1*HDMI,1*VGA
1* Audio Port (3.5 mm headset jack), 1* 12V DC , 1*Power ON/OFF
Watchdog
Supports hardware reset (level 256, 0-255 seconds)
Temperature
Operating: 0°C-50°C; Storage: -20°C-70°C
Humidity
Operating: 20%-70%; Storage: 10%-80%
Shock
5-19Hz/1.0mm amplitude,19-200Hz/1.0g acceleration
Protection Grade
The front panel IP65 is dustproof and waterproof
Drop Ball Test
The 450g ball does not broken when it falls from 0.8 meters
MTBF
30000 hours
Power Supply
DC:12V5A(2pin,Phoenix terminal)
VESA Mounting
75*75(mm),100*100(mm)
Support OS
Windows10/Windows11/Linux (The product comes with no OS)
What’s in the Box
1*Power cable, 1*Power Adapter
Agency Approvals
FCC; CE; ROHS
Accessories
Enhancements, expansions, and extras.
20F Stand
20A Stand
Resources
- 2130E Specification & Drawing
