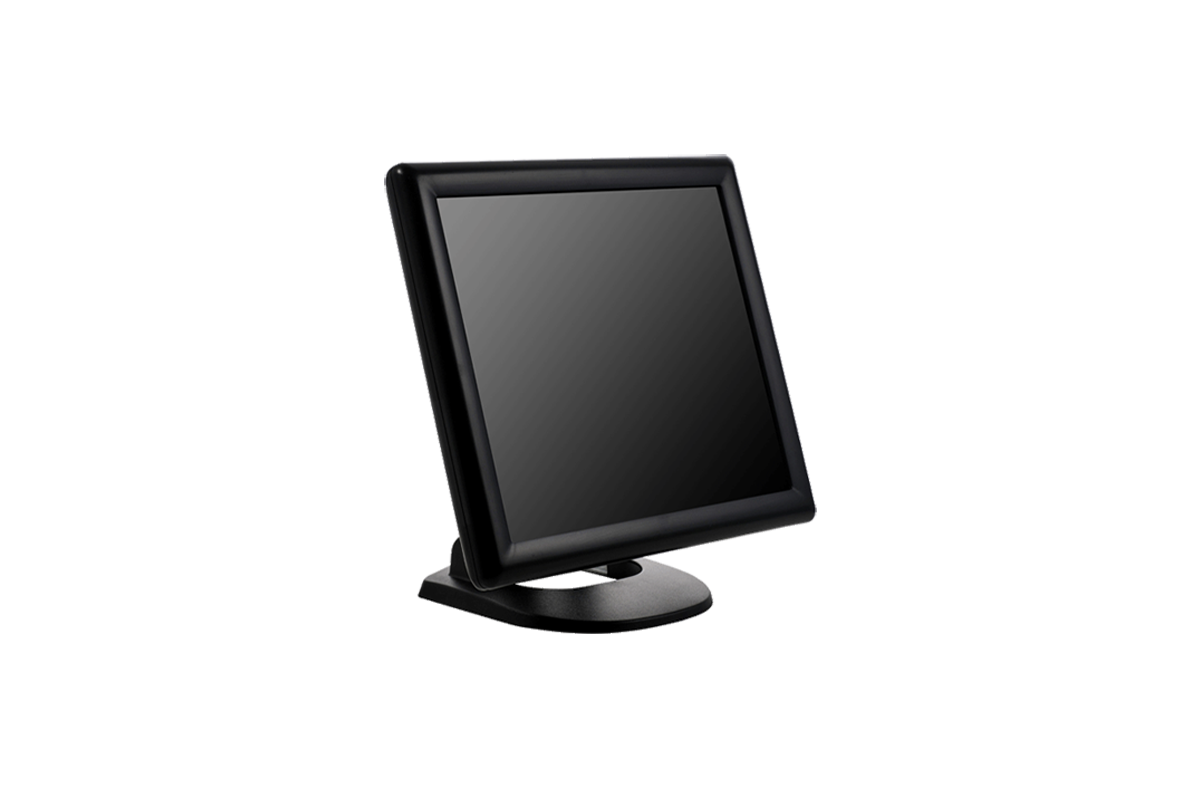

Retail service desk, information acquisition desk, service station, conference terminal, cash register system, library inquiry terminal
Features
+ ABS+PC Plastic material,dustproof front frame
+ 10 point projection capacitive touchscreen
+ Cover plate anti riot and anti fingerprint
+ 5-wire resistance touchscreen is optional
+ Industrial grade LCD, LED backlight
+ Resolution 1280X1024@60Hz
+ Fan-less low consumption motherboard
+ Intel Celeron®J1900 quad-core processor
Optional :Intel Core ® I5-6200U dual-core processor
+ Two Intel I211AT Gigabit Ethernet Ports
+ Support power on startup and reset
+ Expandable Reader, RFID and other peripherals
+ Stable base with adjustable angle
+ Back VESA mounting option
+ Support Windows 10 / Linux
+ 2-Years Warranty
Optional：
- No Touch
- PrivateFilter
- AG Coating
Application:
- Registration
- Information query
- Industrial automation
- POS System
Specifications
Model
TDS1920A
Color
Black or Silver
Diagonal
19"
Aspect Ratio
5:4
Active Area
376 x 301(mm)
Dimensions
440 X 365 X 67(mm)
Resolution
1280 X 1024@60Hz
Viewing Angle
Horizontal: 89° / 89°
Vertical: 89° / 89°
Number of Colors
16.7M
Brightness (typical)
LCD Panel: 300 nits
PCAP: 275 nits
Response Time
5ms
Contrast Ratio
1000:1
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
Input method
Finger, Capacitance pen(Standard)
Latex gloves touch (pre commissioning required)
Transmittance
≥90%
Surface hardness
7H(Mohs)
Touch Interface
USB2.0
Processor
Intel Celeronu00aeJ1900/2.0GHz,
TDP10W(2M cache, up to 2.42GHz)
Intel Coreu00aeI5-6200/2.3GHz,
TDP15W(3M cache, up to 2.8GHz)
Chipset
Bay Trail
Skylake-U
Memory(RAM)
4GB 2133MHz DDR3 SO-DIMM on 1 slots (expandable to 8GB)
4GB 2133MHz DDR4 SO-DIMM on 2 slots (expandable to 16GB)
Storage
SSD 64GB
SSD 128GB
BIOS
64Mb Flash ROM
Ethernet Ports
2XRTL8111H (Gigabit), supporting wake up and PXE functions
Wireless
Support 802.11a/ B/G/N protocol,
2.4ghz & 5GHz dual WIFI band

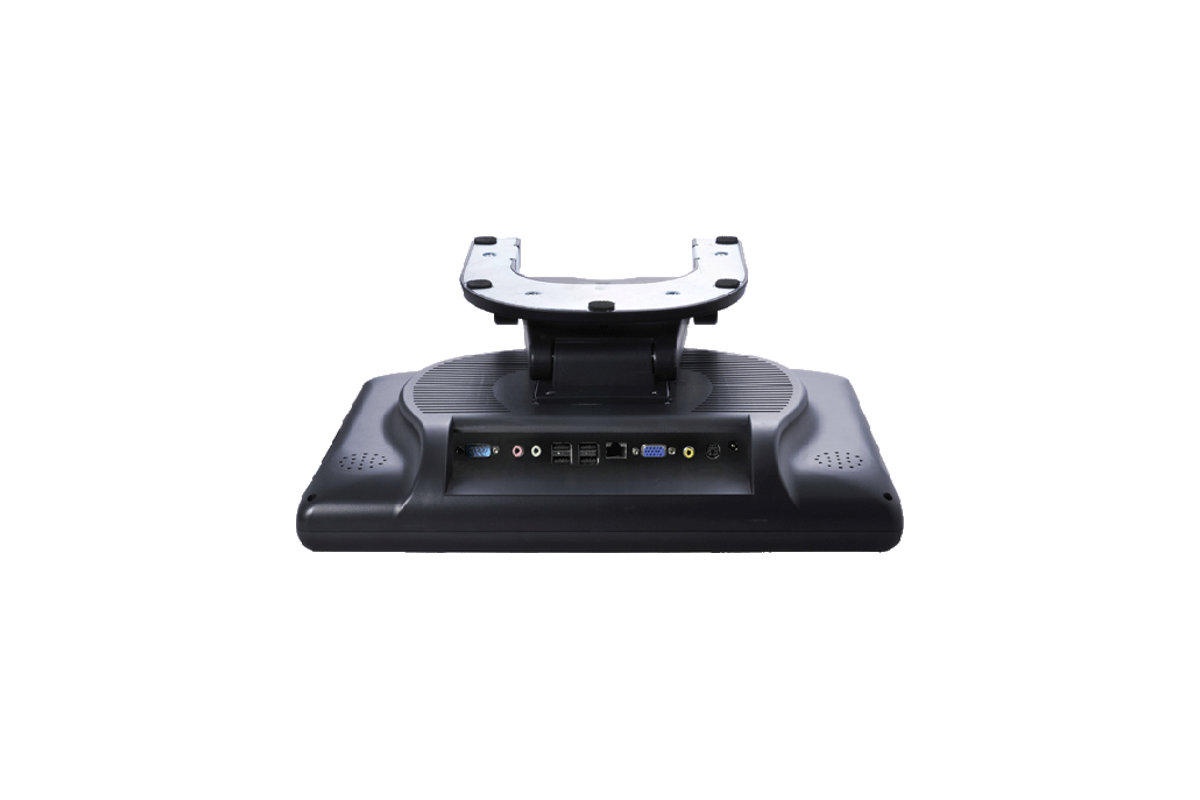

I/O Interface
1* VGA, 1* HDMI
2* USB3.0, 1*RS232, 2* RJ45(gigabit),1* line-out
1* DC
Speakers
TwoX2W internal speakers
Watch Dog
Hardware reset(256 levels, 0 to 255 seconds)
Input Voltage
AC:100-240 VAC, 50/60 Hz
Sealability
Touchscreen sealed to bezel
Drop Test
1kg steel ball falls from 1.2m without breaking
Weight
(Unpackaged) 7KG
Shipping Dimensions
500 x 430 x 260(mm)
Operating Temperature
0°C to 40°C
Storage Temperature
-20°C to 60°C
Humidity
Operating: 20% to 70%;
Storage: 10% to 80%;
MTBF
50,000 hours demonstrated
Mounting Options
VESA:75X75(mm)
100X100(mm)
Base Adjustable Angle
0-90 degrees(Optional)
Power Supply
DC:12V5A
DC:12V8A
Warranty
2-years
Agency Approvals
FCC, CE, ROHS
Support OS
Windows, Linux, Android
What's in the Box
1*power cord,1*power adapter
