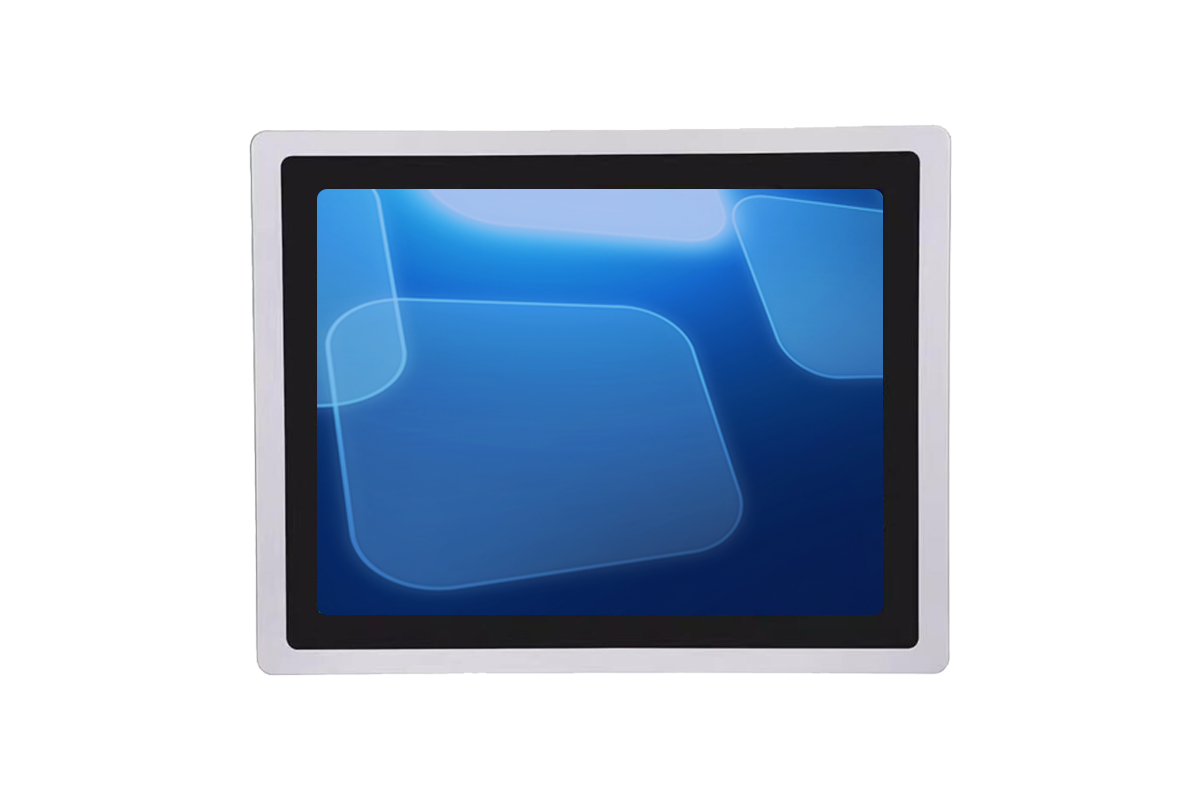

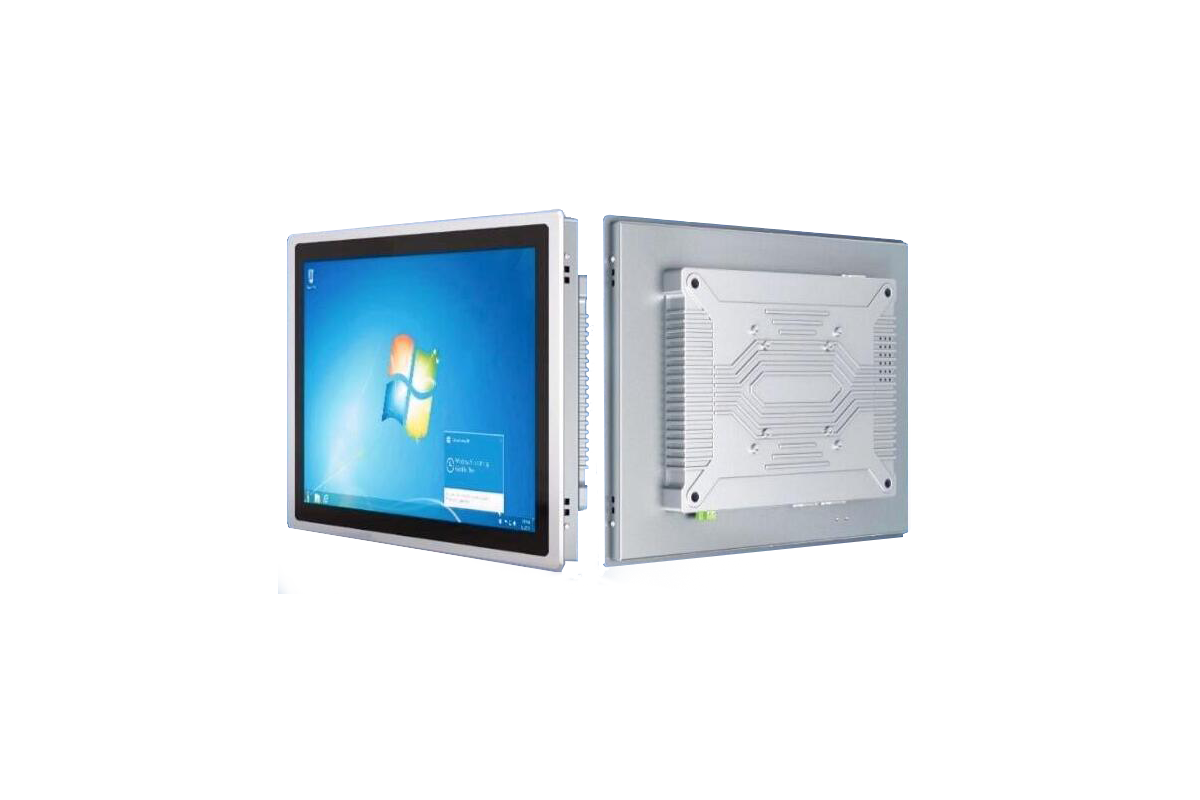

1730A 17" Industrial Touchscreen Computer(5:4)
Industrial automation console, IOT self-service terminal, industrial dashboard
Features
+ Front embedded panel, aluminum enclosure
+The entire unit complies with the IP54 standard
+ Industrial grade LCD screen, LED backlight
+ Resolution 1280X1024@60Hz
+ 10-touch projection capacitive touchscreen
+ 3mm tempered anti-riot glass cover
Option: Five wire resistive touch screen
+ Low power industrial grade motherboard
+ Intel Celeron®J1900 high-performance processor
Option: Intel 9th generation J4125 processor
+ 2* Intel 211AT gigabit network
+ DC anti-falling phoenix connection terminal

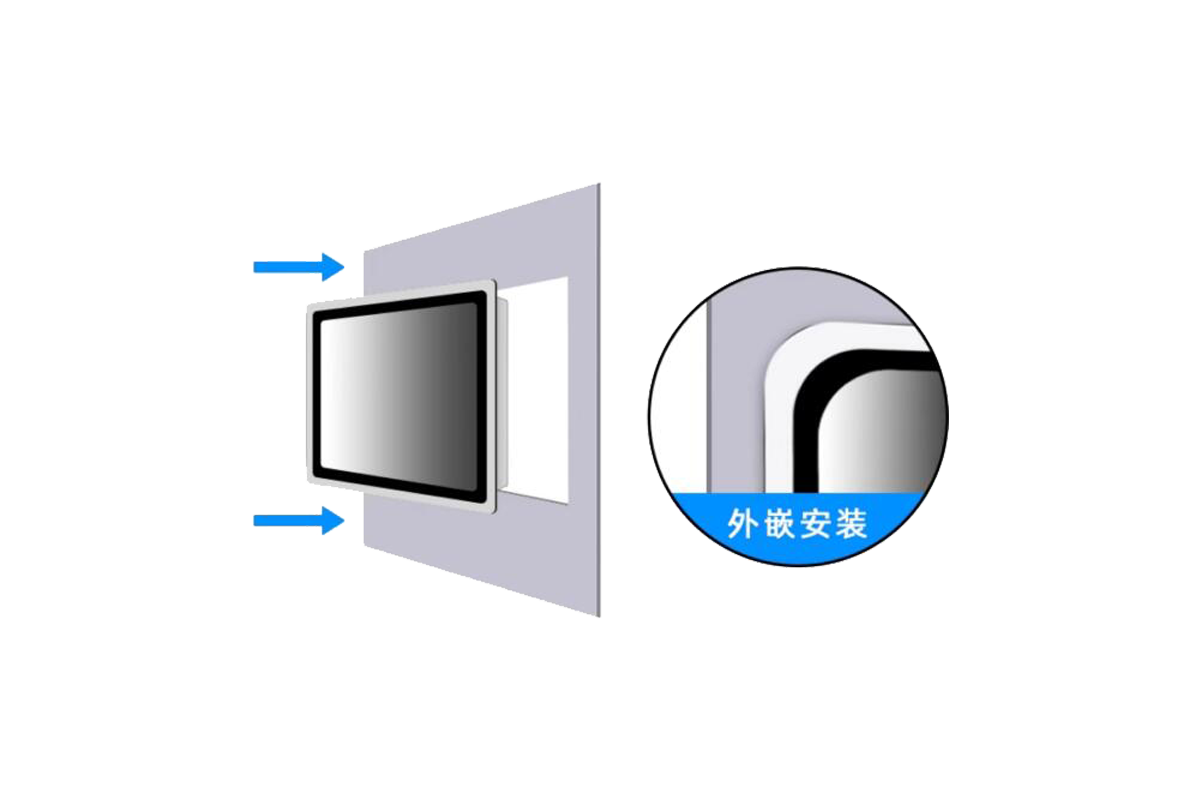

+ Snap-fit installation method, easy to assemble
+ Support OS:windows10/11/Linux/Ubuntu
+ 2 -year warranty
Optional：
- No Touch
- AG Coating
- I3/i5 processor
- Card reader
- Interface customized
- Brightness customized
Specifications
Model
1730A
Color
Silver/black
Diagonal
17”
Aspect Ratio
5:4
Active Area
338.92X271.34(mm)
Dimensions
413X342X59(mm)
Native Resolution
1280X1024@60Hz
Number of Colors
16.7M, 72% NTSC
Viewing Angle
Horizontal:80°/80°, Vertical:70°/70°
Aspect Ratio
1000:1
Brightness
LED: 300nits, Touch:275nits
LED Response
8ms
Touch Technology
Projected capacitive touch screen -10 points
Glass Thickness
3mm,tempered anti-riot treatment
Touch Mode
Fingers/silicone gloves/capacitive stylus
Touch the accuracy
≥2mm
Touch Interface
USB2.0
Processor
Intel® Celeron®J1900 (2 MB Cache,up to 2.42 GHz)
IntelCeleron®J4125 (4 MB Cache,up to 2.7GHz)
BIOS
AMI
Graphics
Intel®HD Graphics
Intel®UHD Graphics 600
Memory
DDR3L_4GB
DDR4L_8GB
Storage
SSD 64GB
SSD 128GB
LAN
2*Gigabit LAN(intel i22 AT)
2*2.5G LAN(intel i225/i226)
Wireless
802.11 a/b/g/n/ac 2.4GHz
802.11 a/b/g/n/ac/ax 5GHz
Bluetooth
Bluetooth 4.1
Bluetooth 5.2
Input Voltage
AC: 100-240 VAC , 50-60 Hz
I/O Interface
2*USB2.0,2*USB3.0,2*COM, 2*RJ45 LAN Port,1*HDMI,1*VGA
1* Audio Port (3.5 mm headset jack), 1* 12V DC , 1*Power ON/OFF
Watchdog
Supports hardware reset (level 256, 0-255 seconds)
Temperature
Operating: 0°C-50°C; Storage: -20°C-70°C
Humidity
Operating: 20%-70%; Storage: 10%-80%
Shock
5 – 19Hz/1.0mm amplitude,19-200Hz/1.0g acceleration
Protection Grade
The front panel IP65 is dustproof and waterproof
Drop Ball Test
The 450g ball does not broken when it falls from 1.Ometers
MTBF
50000 hours
Power Supply
DC:12V5A(2pin,Phoenix terminal)
VESA Mounting
75*75(mm),100*100(mm)
Support OS
Windows10/Windows11/Linux (The product comes with no OS)
What’s in the Box
1*Power cable, 1*Power Adapter 1*Buckles
Agency Approvals
FCC; CE; ROHS
