Cashier systems, self-service, digital signage and hospitality applications, electronic menus, fitness equipment, information desks
Features
+ Metal material, flat and ultra-thin design
+ 10 point projection capacitive touchscreen
+ Cover plate anti riot and anti fingerprint
+ Commercial grade LCD, LED backlight
+ Resolution 1920X1080FHD@60Hz
+ Industrial grade fan-less motherboard
+ IntelCore®I5- 6200U dual Core processor
Optional: Intel Core® I5-8255U Quad-core processor
+ Intel®HD Graphics520 graphics card
+ Two Intel I211AT Gigabit Ethernet Ports
+ Support power on startup and reset
+ Expandable Reader, RFID and other peripherals

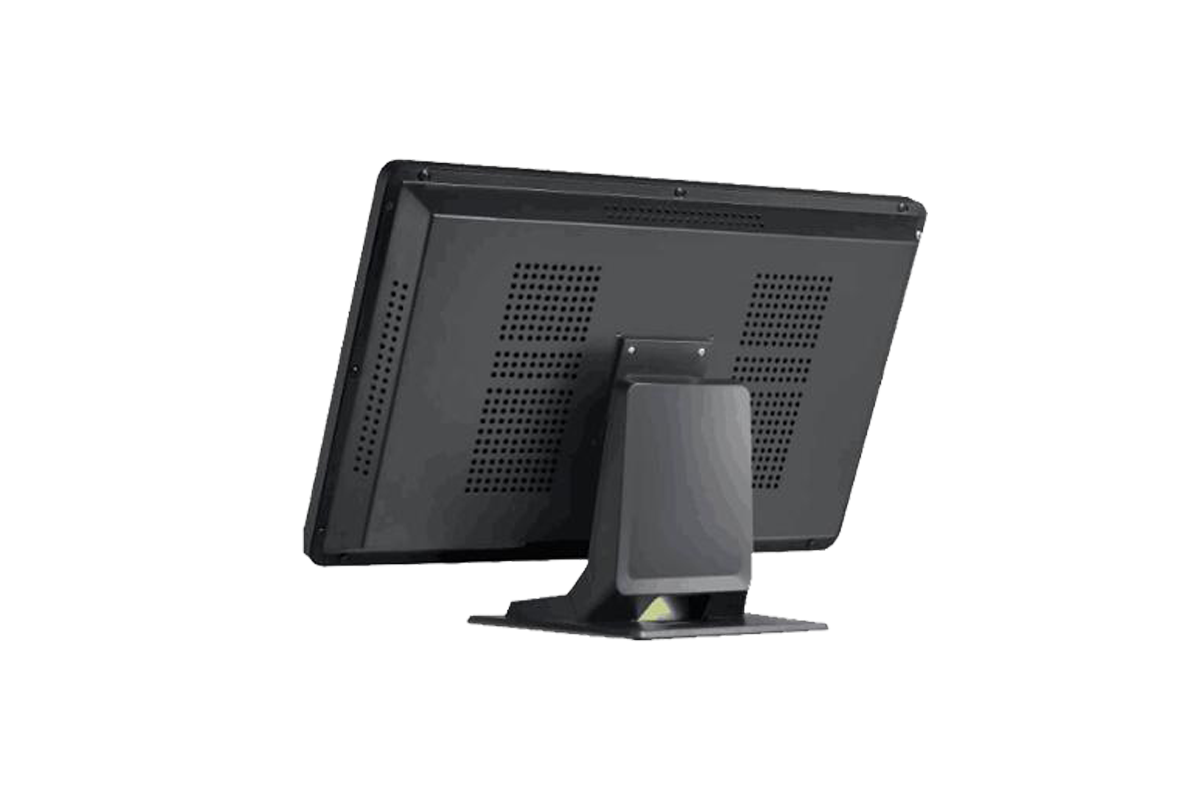

+ Stable base with adjustable angle
+ Back VESA mounting option
+ Support Windows 10 / Linux
+ 2-Years Warranty
Optional：
- No Touch
- PrivateFilter
- AG Coating
Application:
- Registration
- Information query
- Education and training
- Games and entertainment
Specifications
Model
TDS1520C
Color
Black
Diagonal
15.6"
Aspect Ratio
16:9
Active Area
344 X 193(mm)
Dimensions
395 X 242 X 37(mm)
Resolution
1920 X 1080@60Hz
Viewing Angle
Horizontal: 85°/85°
Vertical: 85°/85°
Number of Colors
16.2M
Brightness (typical)
LCD Panel: 300 nits
PCAP: 275 nits
Response Time
30ms
Contrast Ratio
1000:1
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
Input method
Finger, Capacitance pen(Standard)
Latex gloves touch (pre commissioning required)
Transmittance
≥90%
Surface hardness
7H(Mohs)
Touch Interface
USB2.0
Processor
Intel Coreu00ae I5-6200U/2.3GHz,TDP15W
(3M cache, up to 2.8GHz)
Intel Coreu00ae I5 8255U/1.6GHz,TDP15W
((3M cache, up to 3.4GHz)
Chipset
Bay Trail
Storage
SSD 128GB
Memory(RAM)
4GB 2133MHz DDR3 SO-DIMM on 1 slots (expandable to 16GB)
8GB 2133MHz DDR4 SO-DIMM on 1 of 2 slots (expandable to 64GB)
BIOS
64Mb Flash ROM
Ethernet Ports
2XRTL8111H (Gigabit), supporting wake up and PXE functions
Wireless
Support 802.11a/ B/G/N protocol,
2.4ghz & 5GHz dual WIFI band

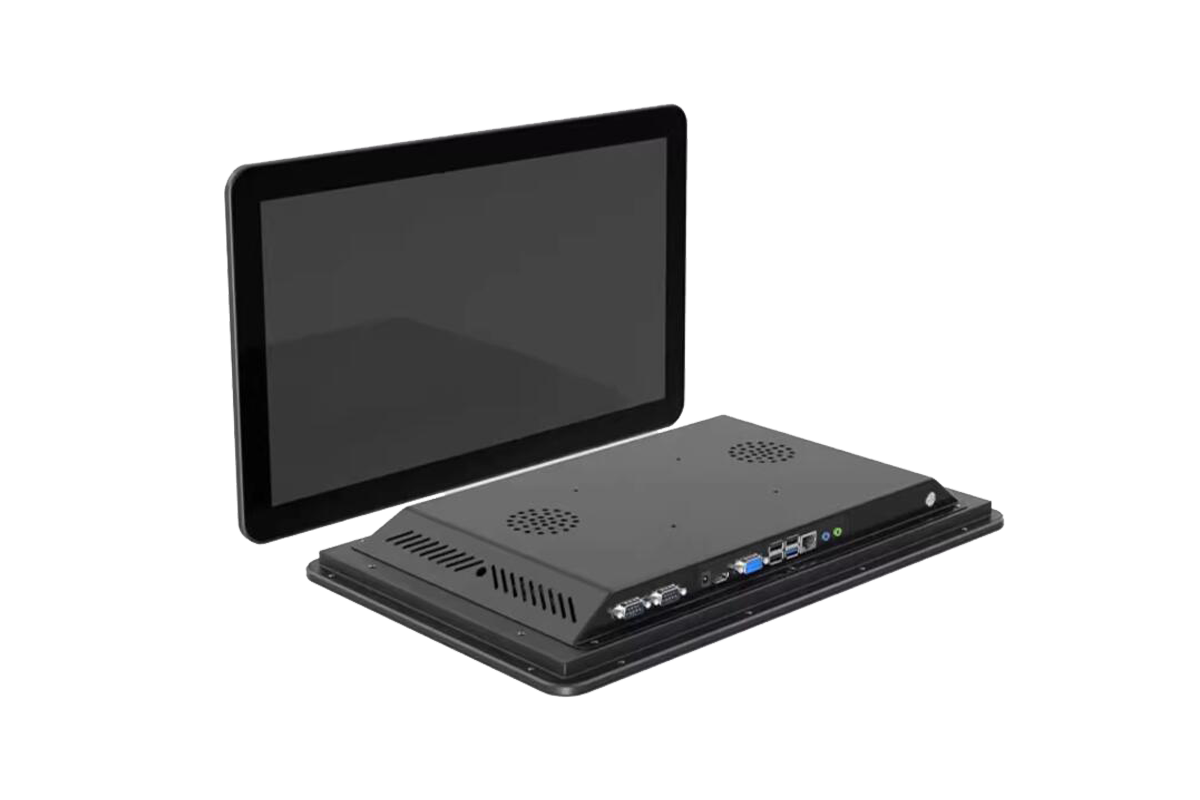

I/O Interface
1* VGA, 1* HDMI
2* USB3.0, 1*RS232, 2* RJ45(gigabit),1* line-out
1* DC
Watch Dog
Hardware reset(256 levels, 0 to 255 seconds)
Speakers
TwoX2W internal speakers
Video Interface
VGA+HDMI
Speakers
TwoX2W internal speakers
Input Voltage
AC:100-240 VAC, 50/60 Hz
Sealability
Touchscreen sealed to bezel
Drop Test
1kg steel ball falls from 1.2m without breaking
Weight
(Unpackaged) 3KG
Shipping Dimensions
520 x 340 x 135(mm)
Operating Temperature
0°C to 40°C
Storage Temperature
-20°C to 60°C
Humidity
Operating: 20% to 70%;
Storage: 10% to 80%;
MTBF
30,000 hours demonstrated
Mounting Options
VESA:75X75(mm)
100X100(mm)
Base Adjustable Angle
0-90 degrees(Optional)
Power Supply
DC:12V3A
Warranty
2-years
Agency Approvals
FCC, CE, ROHS
Support OS
Windows, Linux, Android
What's in the Box
1*USB cable,1*VGA cable,1*DC cable
Accessories
Enhancements, expansions, and extras.
20F Stand
20A Stand
Backpack-A05 for Windows10
