15" TE Projected Capacitive Touchscreen
Features
- 10-point projected capacitive touchscreen
- G+G glass structure, high light transmittance
- 3mm explosion-proof tempered glass cover
- AF anti-fingerprint treatment, smooth touch
- FPC strip anti-static material
- EETI industrial grade touch control IC
- USB touch interface, driver-free
- Supports glove and stylus touch
- Support OS:Windows/Android/Linux
- 2-years Warranty
Optional:
- 1mm-5mm thickness glass
- Special glass shapes
- Logo customization
- Different colors print
- Anti-glare coating

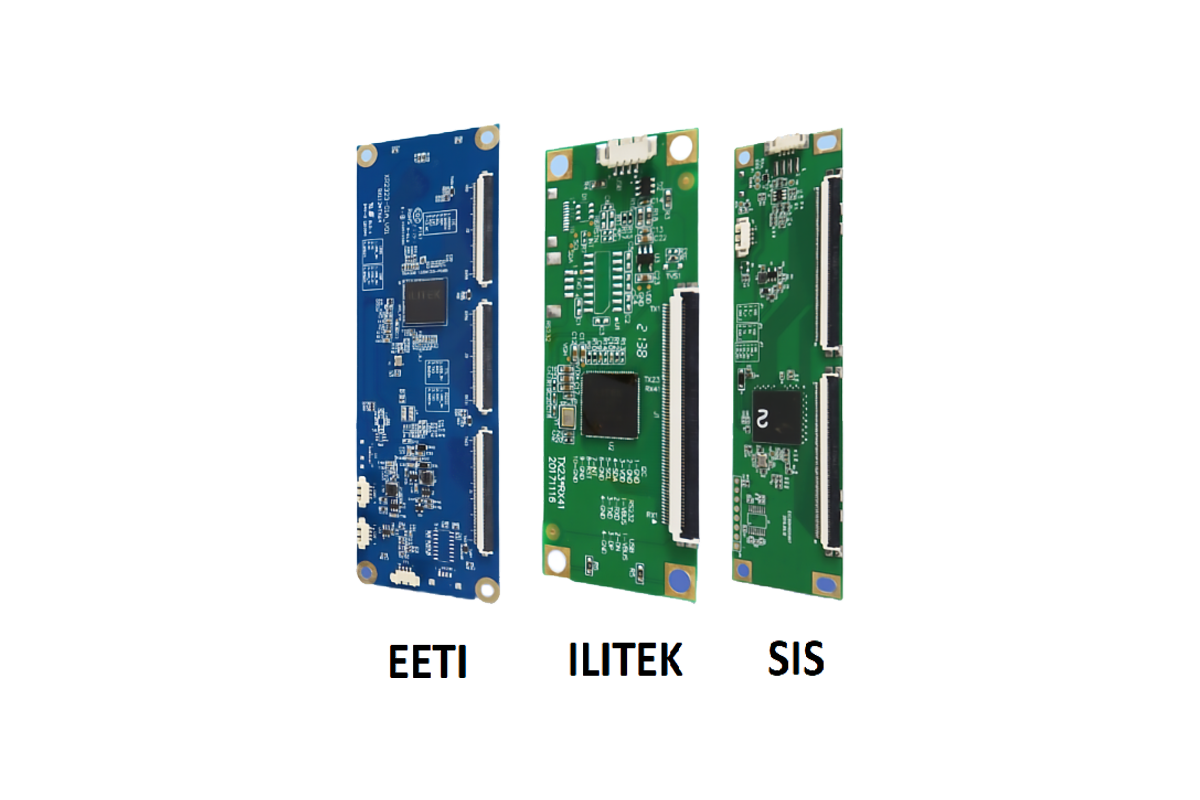

- Different touch IC solutions
- Stylus customization
- Touch interface:RS232
Specifications
Model
TE-15-A-0403V1
Silk printing color
Black
Structure
Glass+Glass
Aspect Ratio
16:9
Window VA
307X231mm
R angle
R2.2
Cover Lens OD
339.94 X 263.94(mm)
Cover Glass Thickness
1.1mm
Sensor Thickness
0.7mm
Overall Thickness
2mm
Cover surface treatment
Anti-fingerprint
Surface Hardness
6H
Transparency
90%
Touch Controller
EETI_3160
Touch Solution
COB
Interface of CT
USB(Standard)
Number of Touches
10points
Input Methods
Finger
Gloved hand
Passive stylus
Positional Accuracy
u00b12mm
FPC outlet length
112mm
Report Rate
u2265100Hz
Response time
<15ms
Operating Voltage
5V
Durability
Over 50 million touches in one location
Explosion-proof
200 grams of steel ball height 0.6meters vertical drop center point will not break
Temperature
Operating: -10u00b0C-60u00b0C;
Storage: -20u00b0C-70u00b0C
Humidity
Operating: 20%-80%;
Storage: 10%-90%
Warranty
2-year
Operating system
WinXP,Win7, Win8,Win10, Linux, Wince, Android, Mac
Accessories
1*1.5m USB cable
