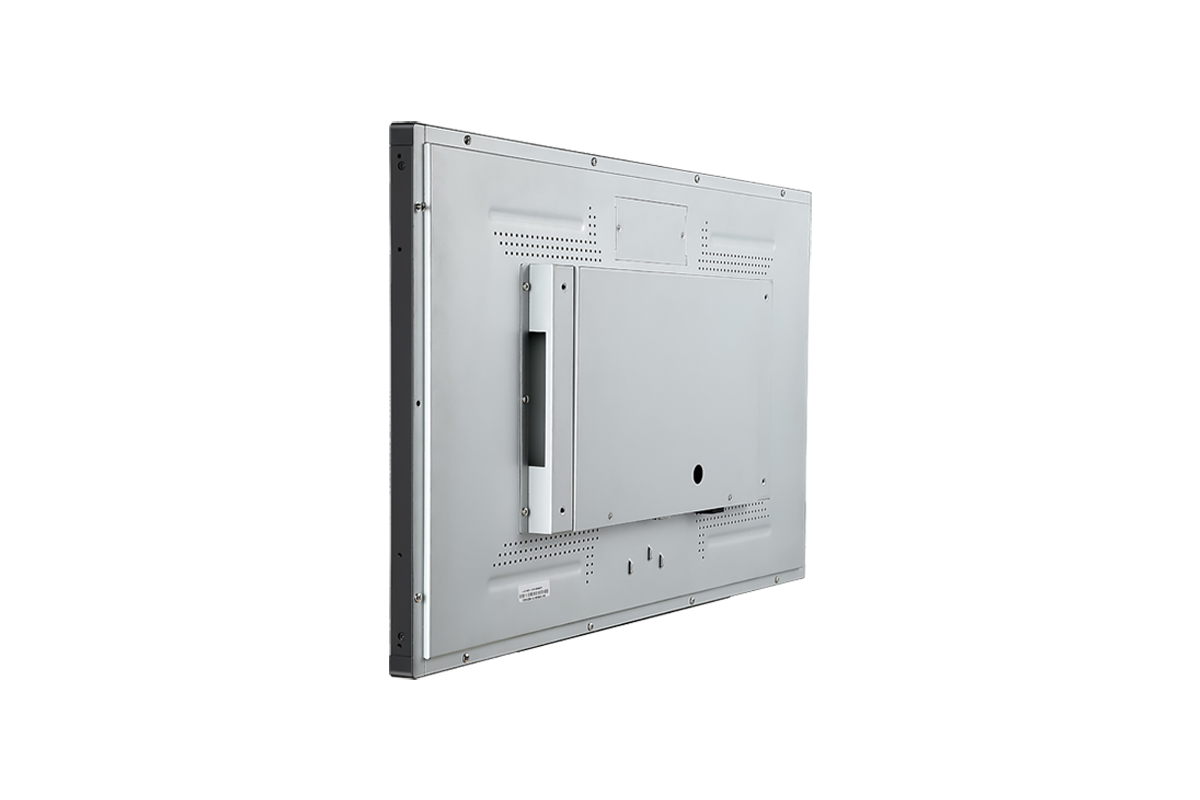

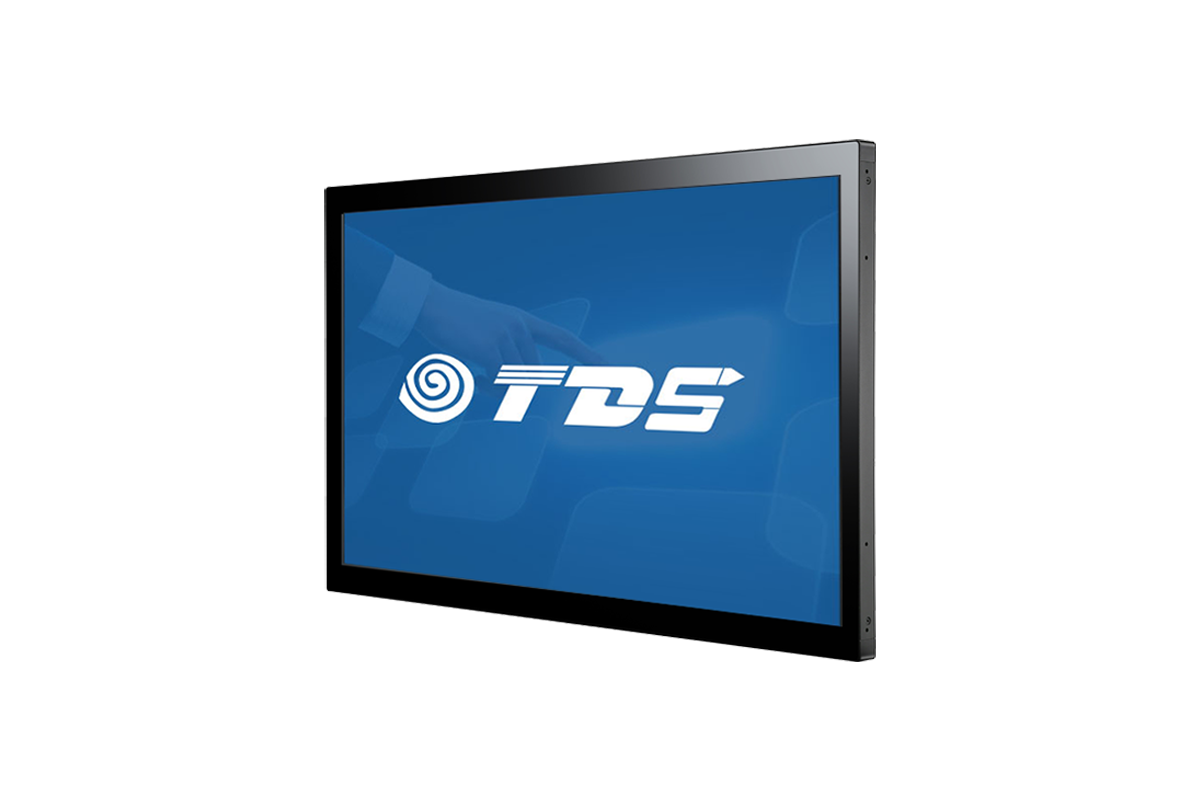

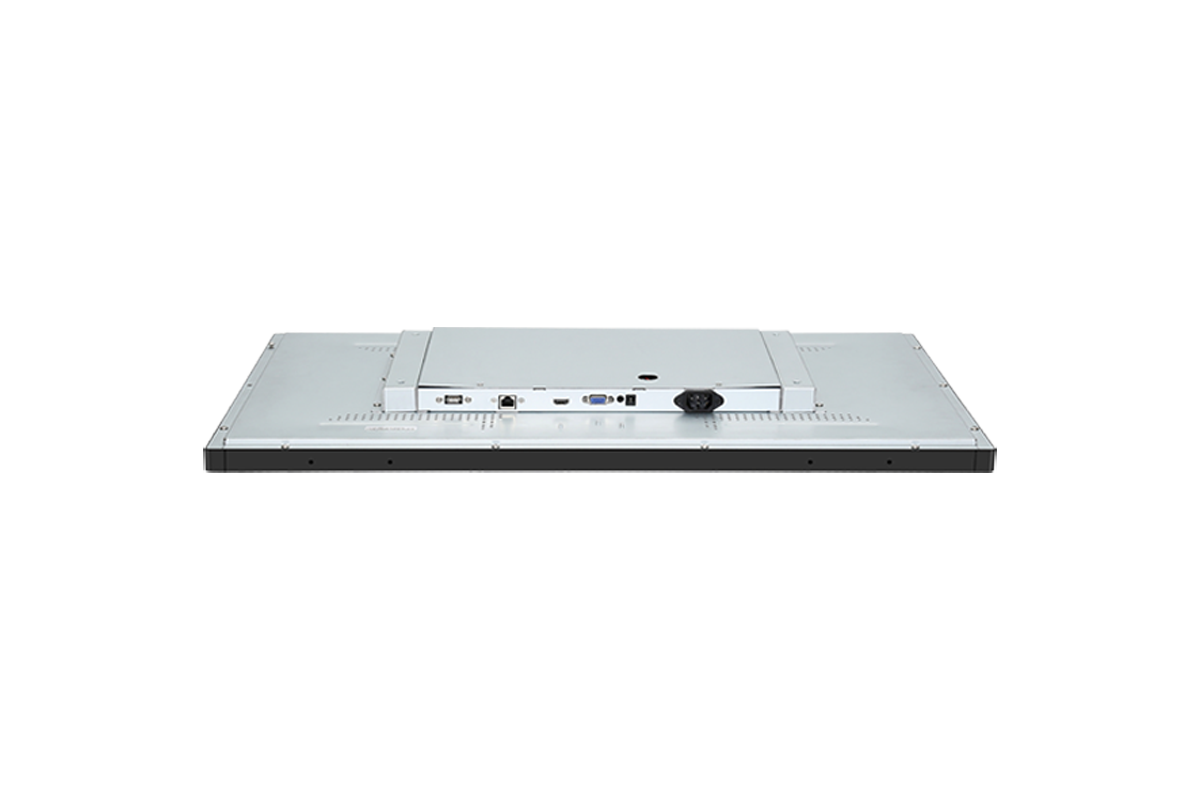

3239D 32" Openframe Touchscreen Monitor(16:9)
self service, Gaming, Industrial automation, Healthcare, Kiosks, Interactive signage
Features
+ Metal shell, open frame structure
+ Flat front frame, water-proof and dust-proof
+ Commercial grade LCD, LED backlight
+ Resolution 1920X1080FHD@60Hz
+ Widescreen full viewing Angle
+ Support horizontal and vertical
+ 10 point projection capacitive touchscreen
+ Cover plate anti riot and anti fingerprint
+ Video interface: HDMI+VGA
+ Multiple assembly holes on the side and back
+ Removable OSD remote for easy use
+ Support OS: Windows/Android/Linux
+ 2-Years warranty
Optional：
- No Touch
- AG Coating
- Resolution:4K
- Video interface: Display Port
- Media player box
Specifications
Model
TDS3239D
Color
Black or Silver
Diagonal
32"
Aspect Ratio
16:9
Active Area
698 X 393(mm)
Dimensions
749 X 454 X 58(mm)
Resolution
1920 X 1080@60Hz
Viewing Angle
Horizontal: 89°/89°
Vertical: 89°/89°
Number of Colors
16.7M
Brightness (typical)
LCD Panel: 400 nits
PCAP: 375 nits
Response Time
8ms
Contrast Ratio
1200:1
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
Input method
Finger, Capacitance pen(Standard)
Latex gloves touch (pre commissioning required)
Transmittance
≥90%
Surface hardness
7H(Mohs)
Touch Interface
USB2.0
Video Interface
VGA+HDMI
Speakers
TwoX2W internal speakers
Input Voltage
AC:100-240 VAC, 50/60 Hz
Sealability
Touchscreen sealed to bezel
Drop Test
1kg steel ball falls from 1.2m without breaking
Weight
(Unpackaged) 13KG
Shipping Dimensions
830 X 550 X 160(mm)
Temperature
Operating: 0°C to 40°C
Storage: -20°C to 60°C
Humidity
Operating: 20% to 70%;
Storage: 10% to 80%;
MTBF
30,000 hours demonstrated
Mounting Options
VESA:200X200(mm), 400X400(mm)
Base Adjustable Angle
0-90 degrees(Optional)
Power Supply
DC:12V3A
Warranty
2-years
Agency Approvals
FCC, CE, ROHS
Support OS
Windows, Linux, Android
What's in the Box
1*USB cable,1*HDMI cable,1*DC cable
Accessories
Enhancements, expansions, and extras.
Resources
- 3239D Specification & Drawing
