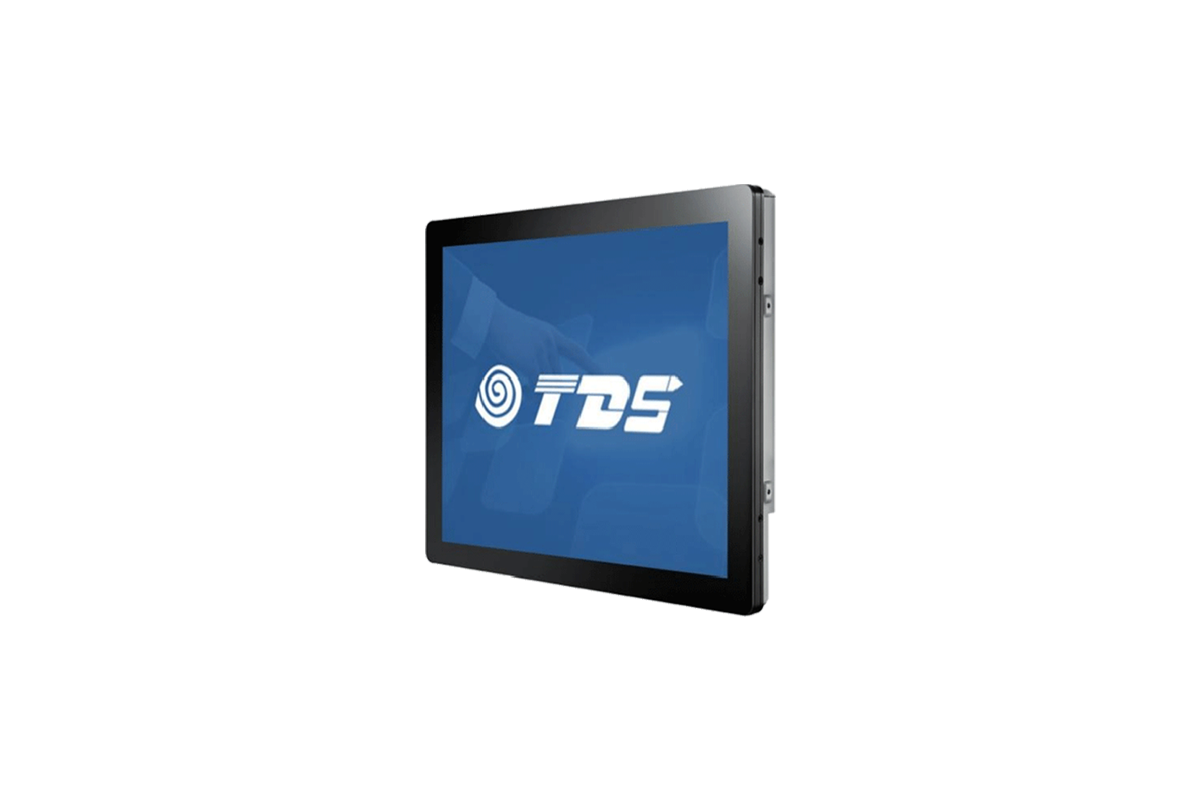

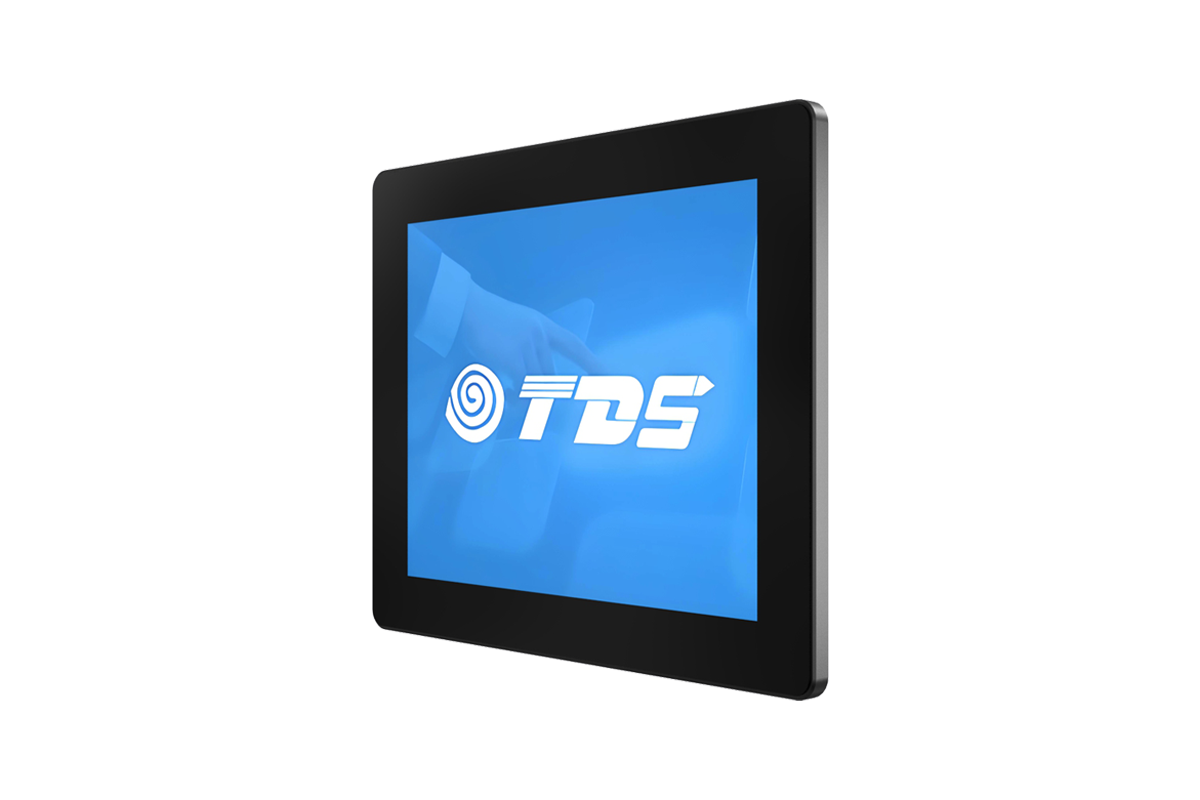

1539E 15" Openframe Touchscreen Monitor(4:3)
Touchscreen solutions for commercial self-service kiosks, industrial control equipment, transportation & energy devices, and entertainment equipment.
Features
+ Metal shell, open frame structure
+ Flat and zero bezel appearance
+ Industrial grade LCD, LED backlight
+ Resolution 1024X768@60Hz
+ Standard aspect ratio, high brightness and contrast
+ 10 point projection capacitive touch screen
+ Cover plate anti riot and anti fingerprint
+ Supports palm rejection and glove touch
+ Video interface: HDMI+VGA
+ Multiple assembly holes on the side and back
+ Support OS: Windows, Android, Linux
Optional：
- No Touch
- Privacy Filter
- AG Coating
- Touch interface: RS232
- Video interface: Display Port
Specifications
Model
TDS1539E
Color
Black or Silver
Diagonal
15"
Aspect Ratio
4:3
Active Area
304 x 228(mm)
Dimensions
348 x 284 x 42(mm)
Resolution
1024 X 768@60Hz
Viewing Angle
Horizontal: 85°/85°
Vertical: 85°/85°
Number of Colors
16.2M
Brightness (typical)
LCD Panel: 350 nits
PCAP: 325 nits
Response Time
25ms
Contrast Ratio
1000:1
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
Input method
Finger, Capacitance pen(Standard)
Latex gloves touch (Thickness≤2mm)
Transmittance
≥90%
Surface hardness
7H(Mohs)
Touch Interface
USB2.0
Video Interface
VGA+HDMI
Input Voltage
AC:100-240 VAC, 50/60 Hz
Sealability
Touchscreen sealed to bezel
Drop Test
450g steel ball falls from 1.2m without breaking
Weight
(Unpackaged) 2.7KG
Shipping Dimensions
455 x 340 x 135(mm)
Temperature
Operating: 0°C to 40°C
Storage: -20°C to 60°C
Humidity
Operating: 20% to 70%;
Storage: 10% to 80%;
MTBF
50,000 hours demonstrated

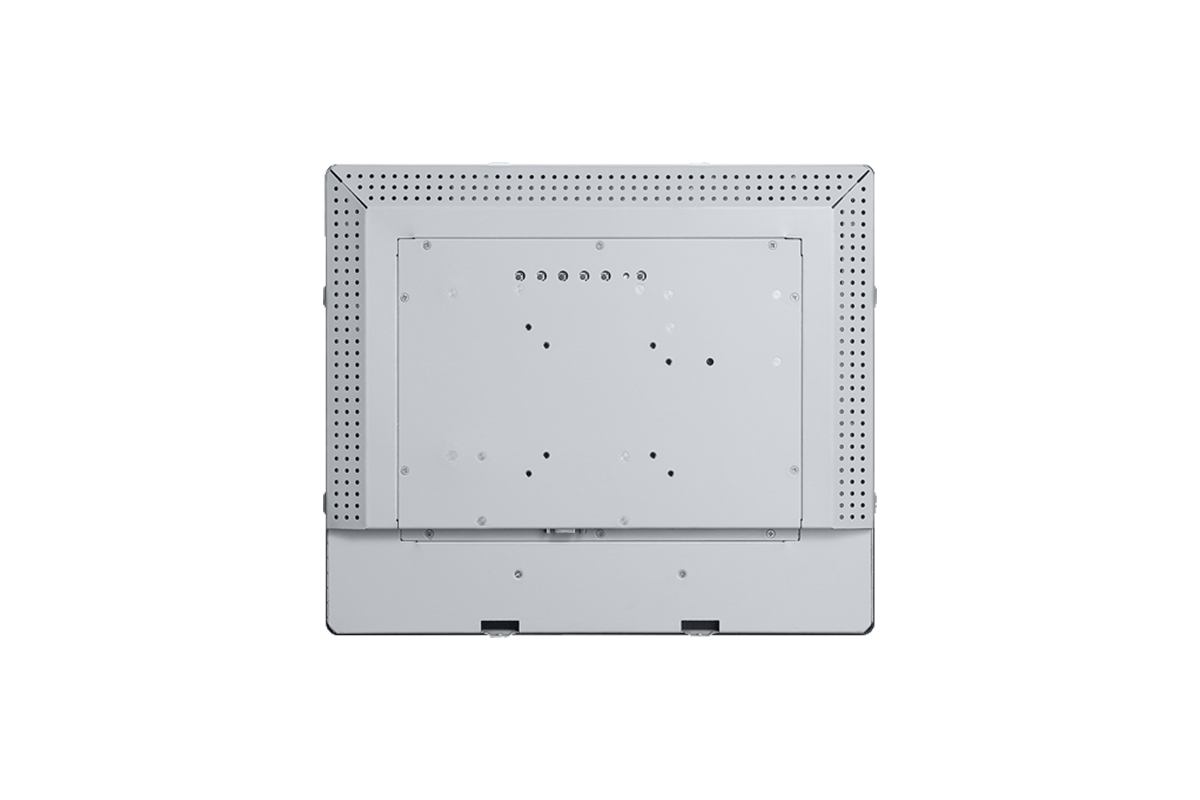

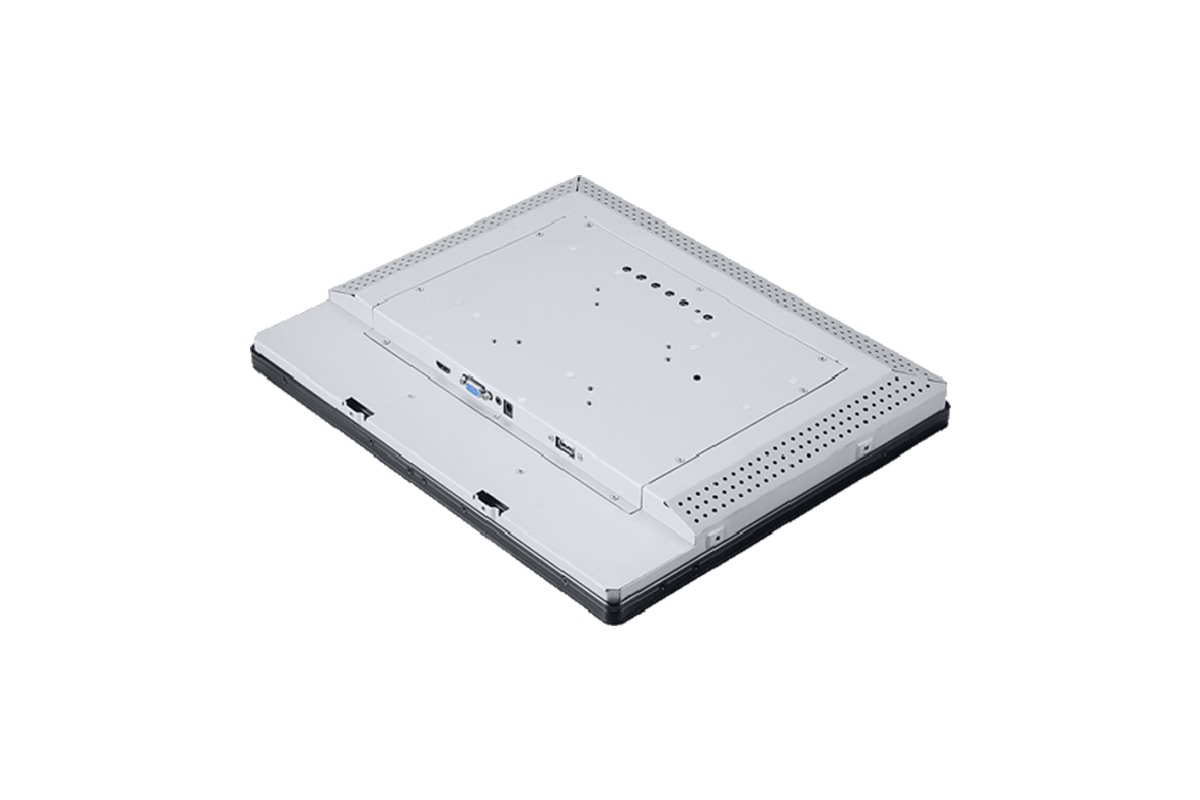

Mounting Options
Back VESA two groups of holes: 75mm & 100mm
Four sides has set of fixing holes: 142mm
Power Supply
DC:12V3A
Warranty
3-year
Agency Approvals
FCC, CE, ROHS
Support OS
Windows, Linux, Android
What's in the Box
1*USB cable, 1*VGA cable, 1*DC cable(Standard)
L” (Side Mount)Brackets and w/Screws(Options)
