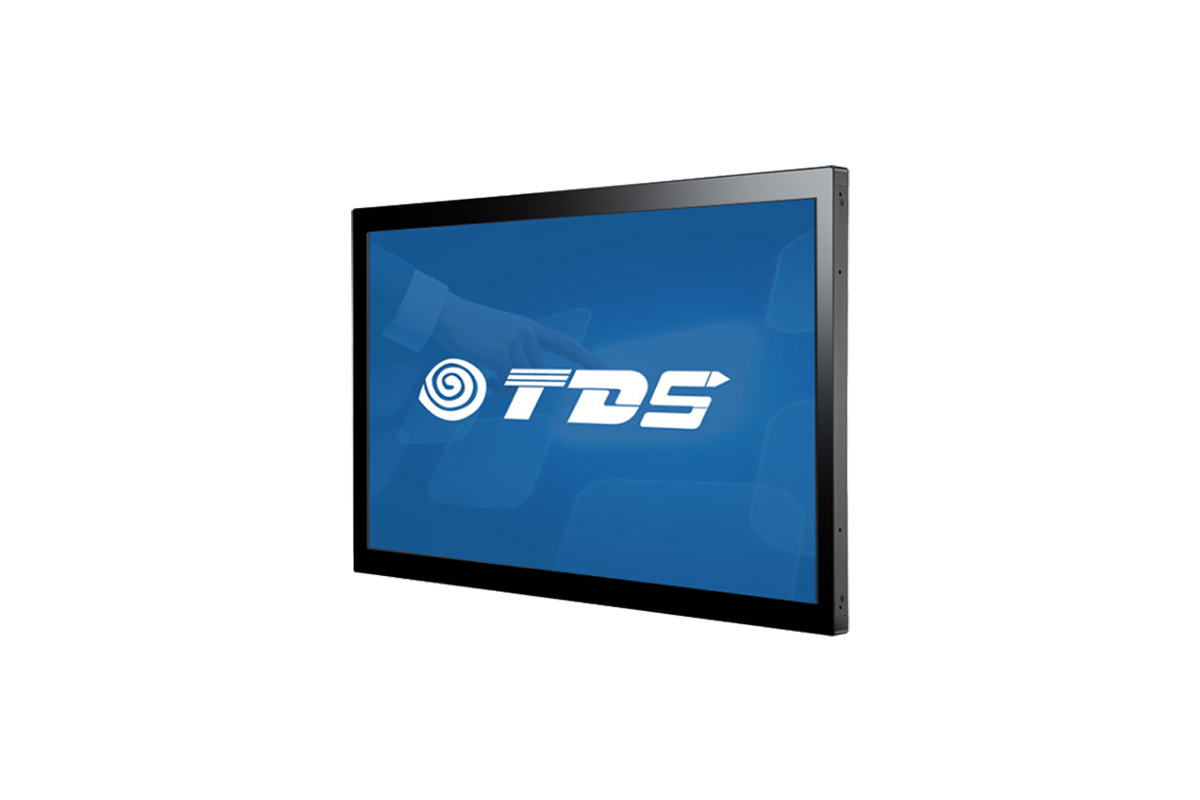

4338D 43" Openframe Touchscreen Monitor(16:9)
Charging stations, payment & ticketing vending machine, outdoor ATM & baking, Wayfinding & signage
Features

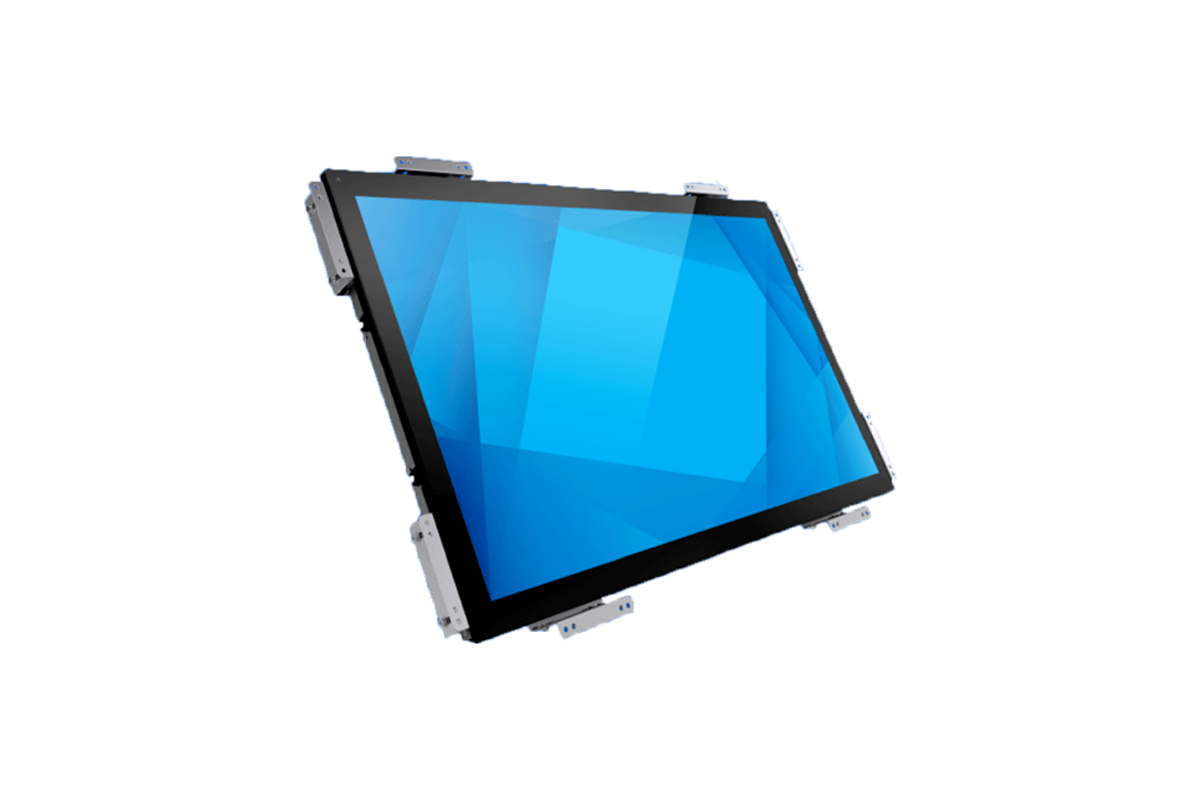

+ Metal shell, open frame structure
+ Commercial grade LCD, LED backlight
+ Resolution 1920X1080FHD@60Hz
+ Widescreen full viewing Angle
+ Support horizontal and vertical
+ 10 point projection capacitive touchscreen
+ Cover plate anti riot and anti fingerprint
+ Infrared touchscreen optional
+ Video interface: HDMI+VGA

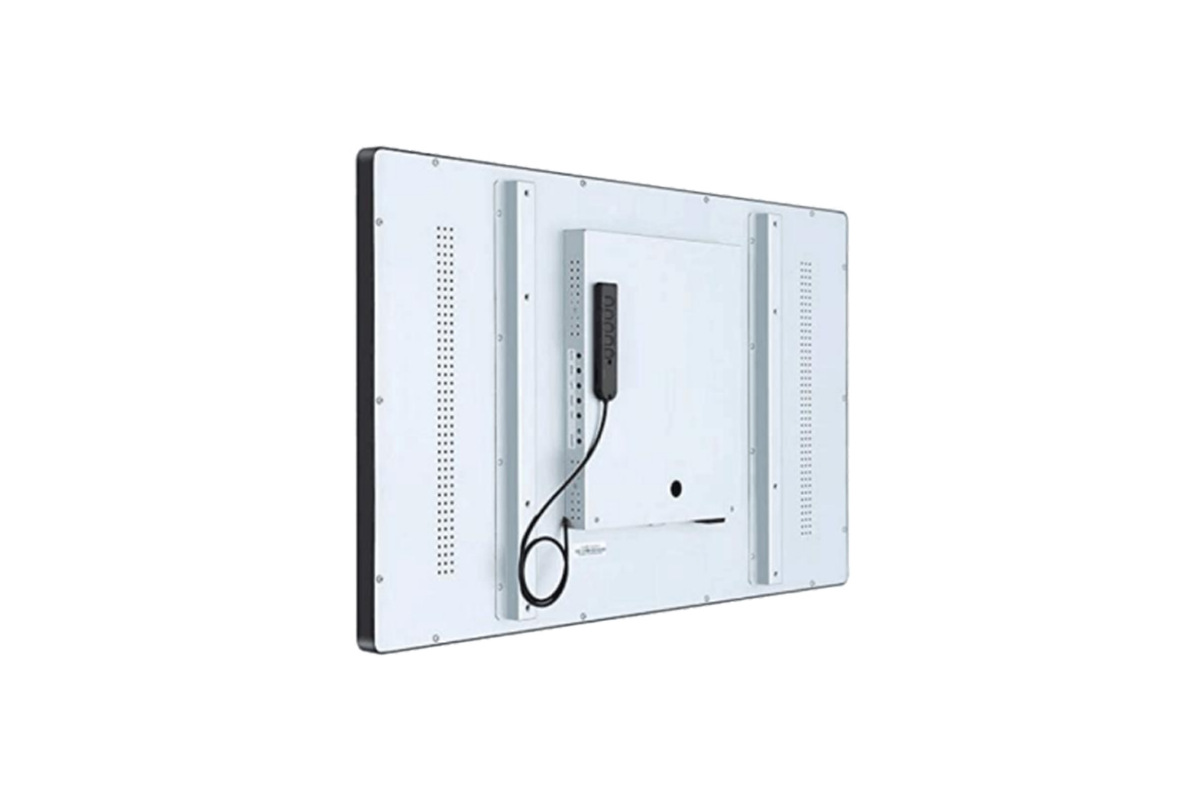

+ Multiple assembly holes on the side and back
+ Removable OSD remote for easy use
+ Support OS: Windows/Android/Linux
+ 2-Years warranty
Optional：
- No Touch
- AG Coating
- Resolution:4K
- Video interface: Display Port
- Media player box
Specifications
Model
4338D
Color
Black/Silver
Diagonal
43”
Aspect Ratio
16:9
Active Area
941.84×529.42 (mm)
Dimensions
1006.8×600×62.8 (mm)
Resolution
1920×1080FHD@60Hz
Viewing Angle
Horizontal: 89°/89°
Vertical: 89°/89°
Number of Colors
16.7M
Brightness (typical)
LCD panel: 400nits; PCAP: 375nits
Response Time
8ms
Contrast Ratio
1200:1
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
Transmittance
>90%
Surface Hardness
7H (Mohs)
Touch Interface
USB 2.0
Video Interface
VGA+HDMI
Input Voltage
AC: 100-240 VAC, 50/60 Hz
Power Supply
Internal AC
Drop Test
450g steel ball falls from 1.2m without breaking
Weight (Unpackage)
26KG
Shipping Dimensions
1135×715×185 (mm)
Operating Temperature
0°C to 40°C
Storage Temperature
-20°C to 60°C
Humidity
Operating: 20% to 70%; Storage: 10% to 80%
Mounting Options
Back VESA: 200mm&400mm; Fixing holes: 2&75mm (four sides)
MTBF
30,000 hours demonstrated
Warranty
2-years
Agency Approvals
FCC, CE, ROHS
Support OS
Windows/Linux/Android
