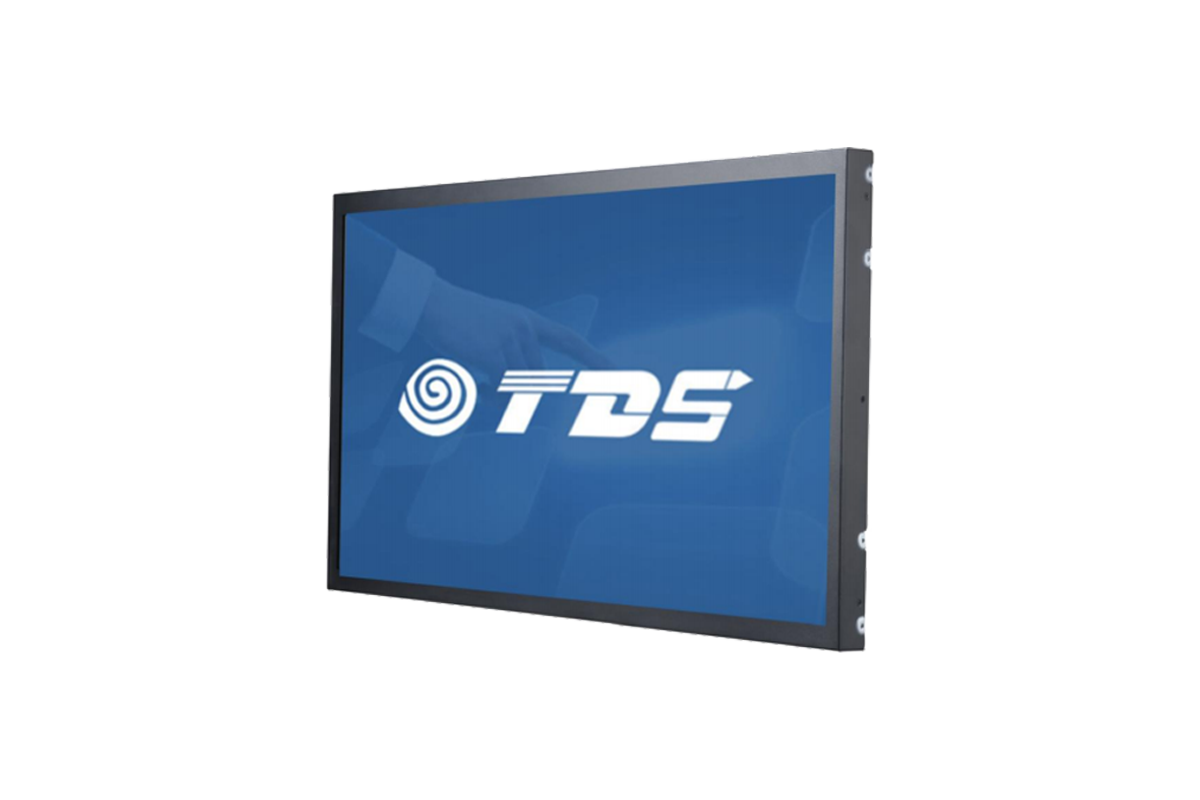

3238D 32" Openframe Touchscreen Monitor(16:9)
Charging stations, payment & ticketing vending machine, outdoor ATM & baking, Wayfinding & signage
Features
+ Metal shell, open frame structure
+ Flat front frame, water-proof and dust-proof
+ Commercial grade LCD, LED backlight
+ Resolution 1920X1080FHD@60Hz
+ Widescreen full viewing Angle
+ Support horizontal and vertical
+ 10 point projection capacitive touchscreen
+ Cover plate anti riot and anti fingerprint
+ Video interface: HDMI+VGA

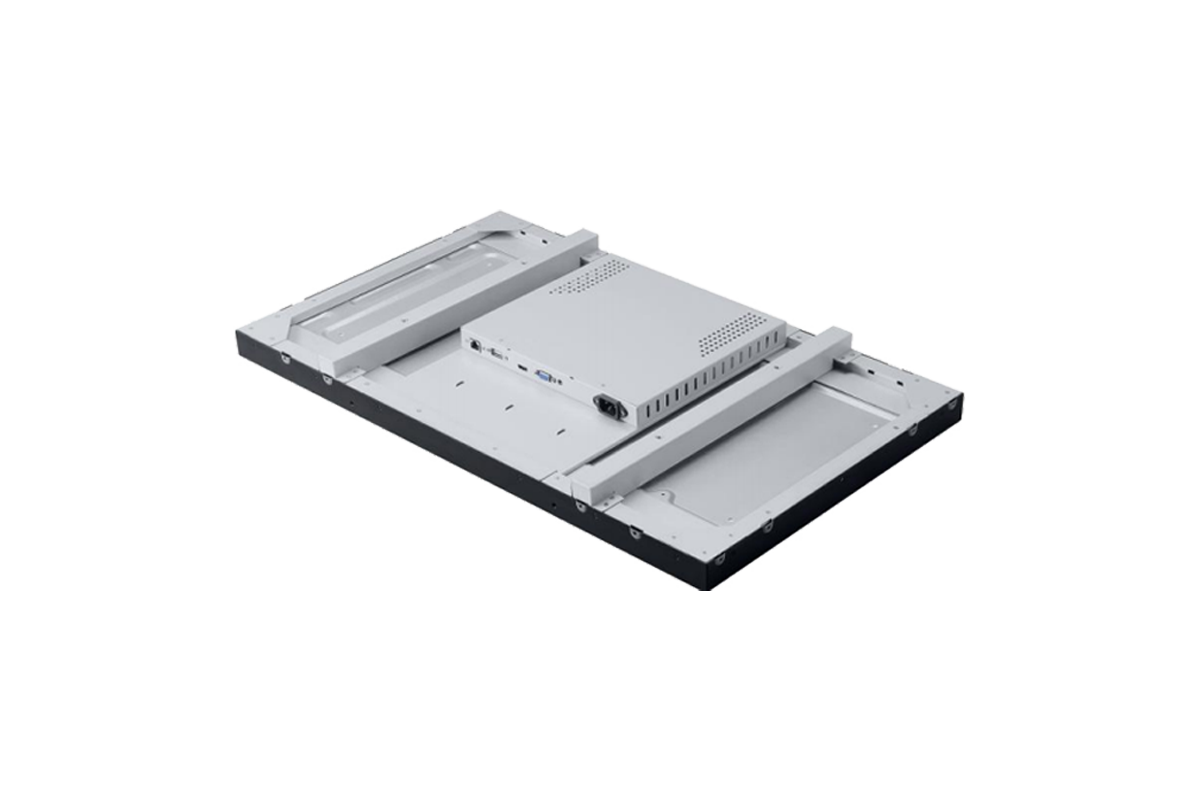

+ Multiple assembly holes on the side and back
+ Removable OSD remote for easy use
+ Support OS: Windows/Android/Linux
+ 2-Years warranty
Optional：
- No Touch
- AG Coating
- Resolution:4K
- Video interface: Display Port

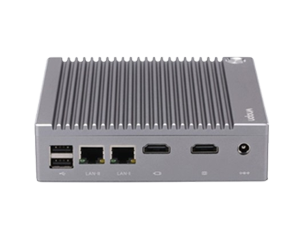

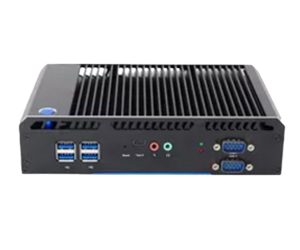

- Media player box
Specifications
Model
3238D
Color
Black/Silver
Diagonal
32"
Aspect Ratio
16:9
Active Area
698.4×393 (mm)
Dimensions
735.4×442×58 (mm)
Resolution
1920×1080FHD@60Hz
Viewing Angle
Horizontal: 89°/89°, Vertical: 89°/89°
Number of Colors
16.7M
Brightness (typical)
LCD panel: 400nits; PCAP: 375nits
Response Time
8ms
Contrast Ratio
1200:1
Touch Technology
PCAP (Projected Capacitive) - 10 Touch
Infrared touchscreen - 20 Touch (optional)
Transmittance
>90%
Surface Hardness
7H (Mohs)
Touch Interface
USB 2.0
Video Interface
VGA+HDMI
Input Voltage
AC: 100-240 VAC, 50/60 Hz
Power Supply
Internal AC
Drop Test
450g steel ball falls from 1.2m without breaking
Weight (Unpackage)
13KG
Shipping Dimensions
830×550×160 (mm)
Operating Temperature
0°C to 40°C
Storage Temperature
-20°C to 60°C
Humidity
Operating: 20% to 70%; Storage: 10% to 80%
Mounting Options
Back VESA: 200mm&400mm
Fixing holes: 75mm (four sides)
MTBF
30,000 hours demonstrated
Warranty
2-years
Agency Approvals
FCC, CE, ROHS
Support OS
Windows/Linux/Android

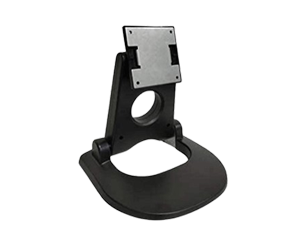

Accessories
Enhancements, expansions, and extras.
Resources
- 3238D Specification & Drawing
